Vertical slab deposit rail

Art.
GF28/04CB98

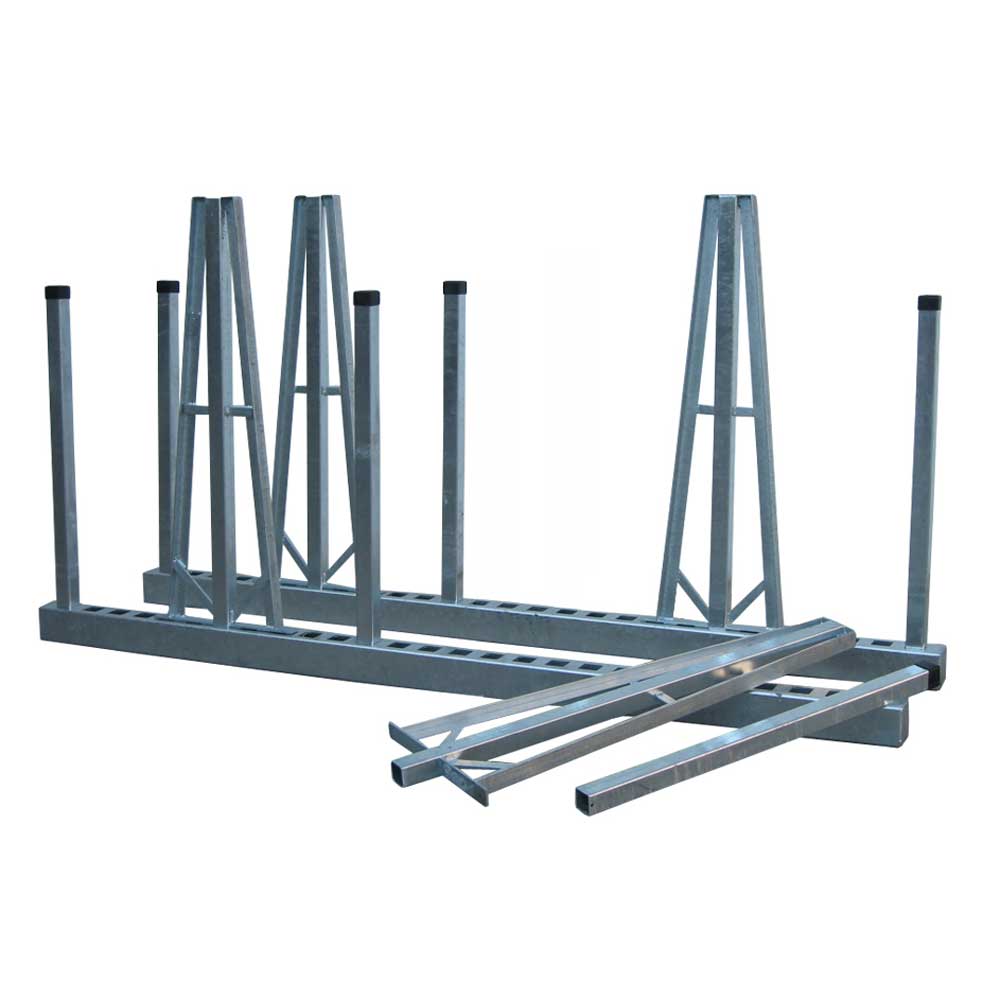

Pair of tubular steel rails for vertical slab deposit, with 27 laser-cut square holes of 61.4 mm, complete with n. 6 tubular steel posts 60x60x4 mm height 120 cm and n. 4 stands h cm 150

Request a quote

Description

The Girlanda Fratelli rail is an equipment designed and built to store slab loads. It consists of a pair of steel structures which are supported on the ground and into which a series of 6 posts and 4 stands are inserted, movable two by two, by means of a row of holes on both structures. The posts have the function of supporting the packs of slabs. The posts are square in shape with an anti-scratch cap at the end.
The rail is available with galvanizing treatment or immersion painting. It is built in 1 model, other sizes on request.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic supporting structure in steel profiles.
  • 6 posts 60x60x4 height cm 120.
  • 4 stands height 150 cm.

Models and sizes

Maximum load per pair of posts  kg 2.700
Maximum load per stand on a single side  kg 4.000
Maximum load per stand on double sides  kg 10.000
Length  cm 296
Base width  cm 12
Base height  cm 12
Post height  cm 120
Stand height mm 150
Square stake  mm 60x60x4
Mass  kg 310
