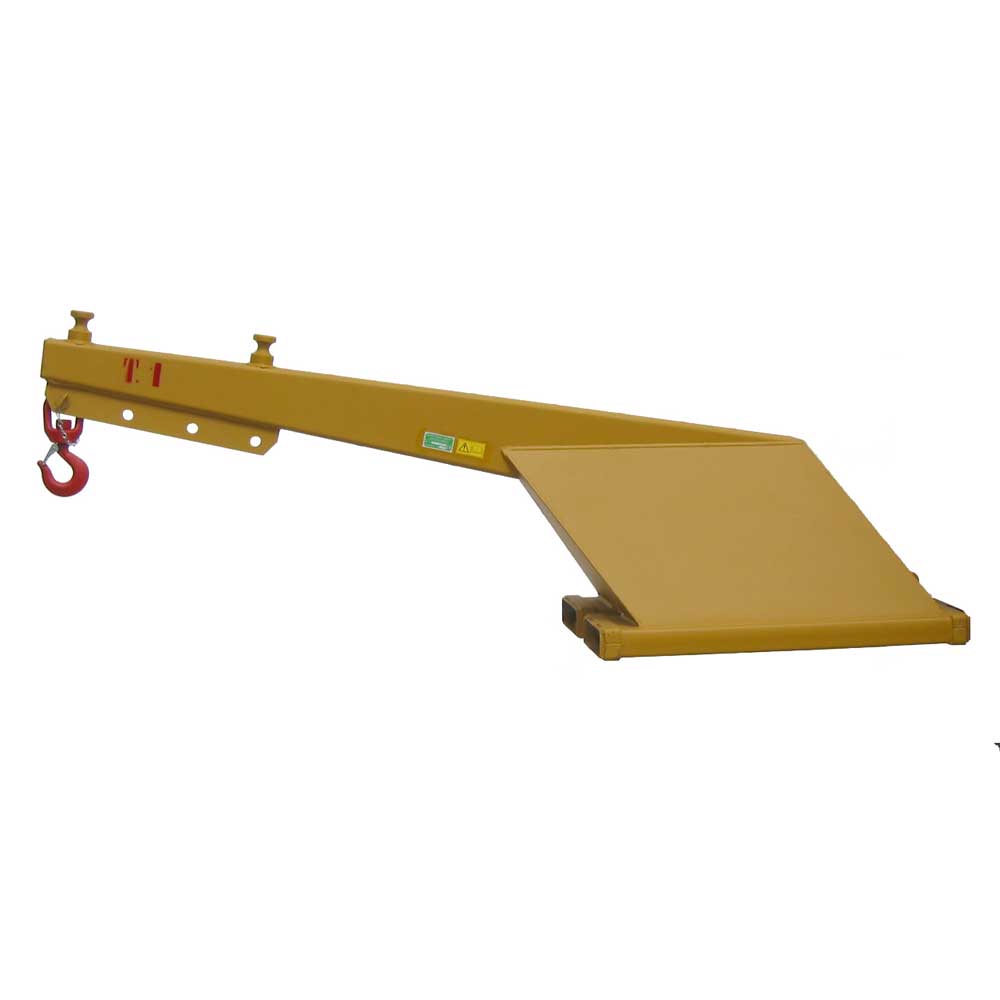

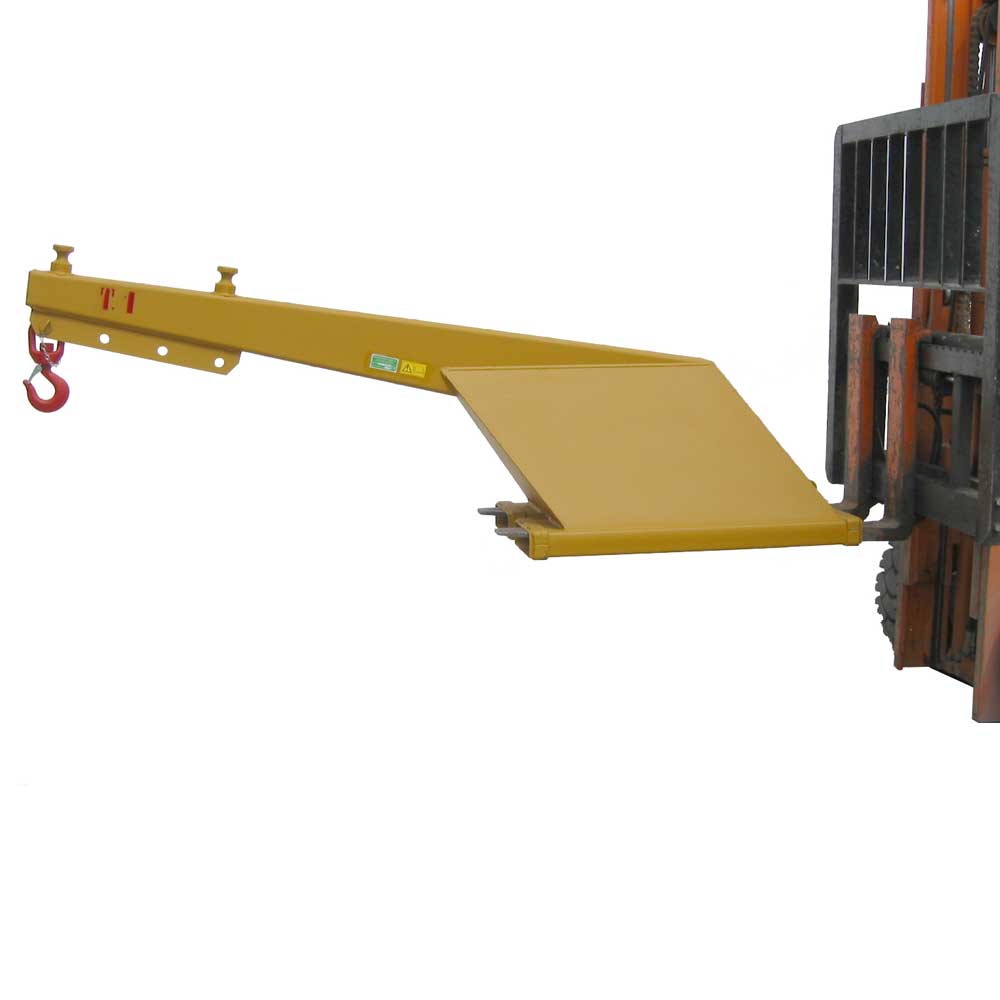

The Girlanda F.lli arm is made of a welded steel sheet structure specially shaped. The free end of the arm is equipped with an adjustment system, consisting of a series of holes drilled in the structure, which allows the hook to be positioned in the most suitable position. It is available with a coating treatment.
The product complies with the regulations:
Machinery Directive 2006/42/EC and subsequent supplements.
UNI EN ISO 12100/1 and 12100/2 standards.
When placed on the market, the arm is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction manual.
Technical features
Basic load-bearing structure in sheet steel
1 hook
Tubular elements for housing forklift forks
Measures and models
Maximum working load daN (kg)
1.000
Mass kg
145
Total arm length mm
2.400
Length at hook mm
2.320
Width mm
600
Height mm
900
