The Girlanda Fratelli sling bar is a lifting accessory, conceived, designed and manufactured to be used for: lifting and handling of loads, machinery, wooden boards, metal materials, slab products obtained from the processing of marble, granite or other stone products and in general all solid, consistent and tenacious products that are not damaged when lifted and possibly overturned.
In order to allow easy and safe load lifting and handling operations, the sling bar is equipped with a series of accessories that are indispensable for operating in safety. The suspension system has been designed and built to allow it to be attached to the hook of the crane or lifting equipment, without the need for slings or other accessories.
It is available with galvanizing treatment.
The product complies with the regulations:
Machinery Directive 2006/42/CE and following integrations.
UNI EN ISO 12100/1 and 12100/2 standards.
When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction manual.
Technical characteristics
Supporting structure made of cast steel profiles.
Pair of pulleys, which can be for steel rope or for nylon belts.
Models and sizes
It is built in 2 models.

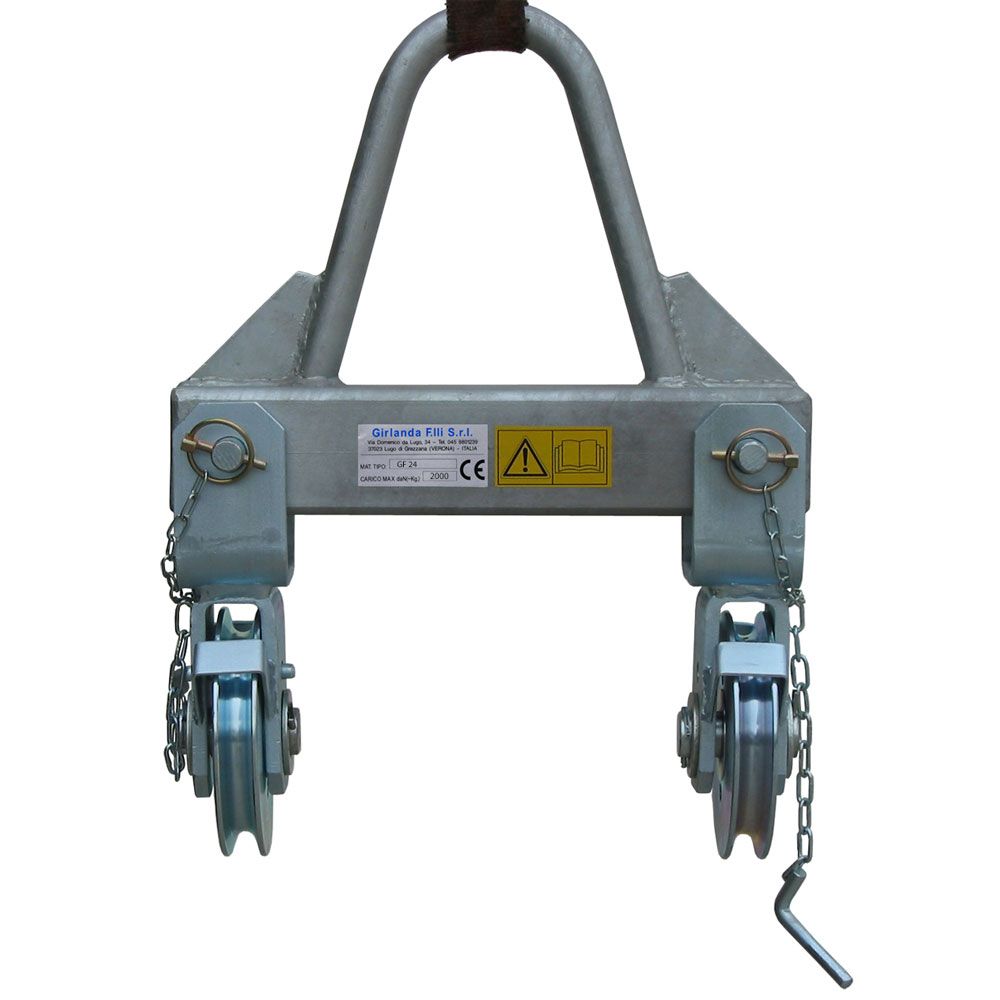

Model GF24 (nylon belts)
Maximum lifting load kg
2.000
External length cm
40
External width cm
12
Total height cm
53
Nylon belts – max mm
65
Mass kg
24

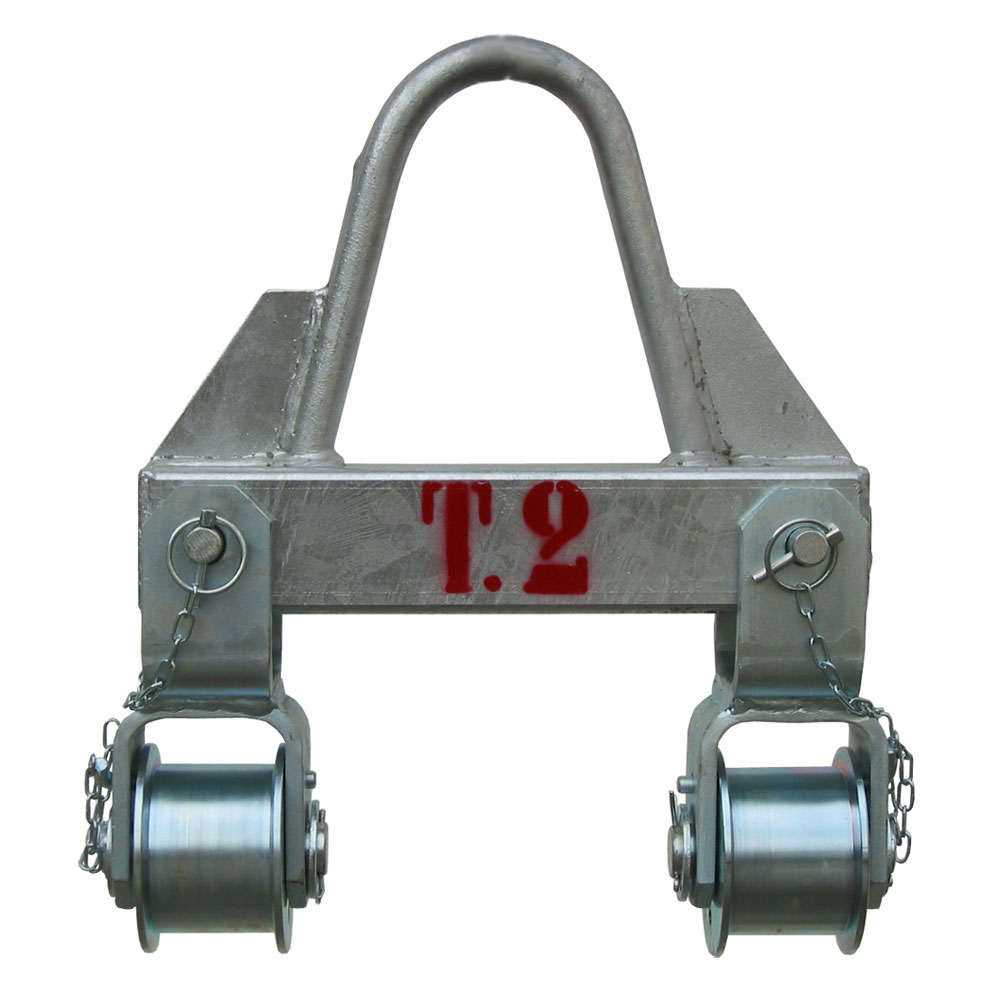

Model GF24/A (steel ropes)
Maximum lifting load kg
2.000
External length cm
40
External width cm
16
Total height cm
55
Steel ropes – max mm
15
Mass kg
24
