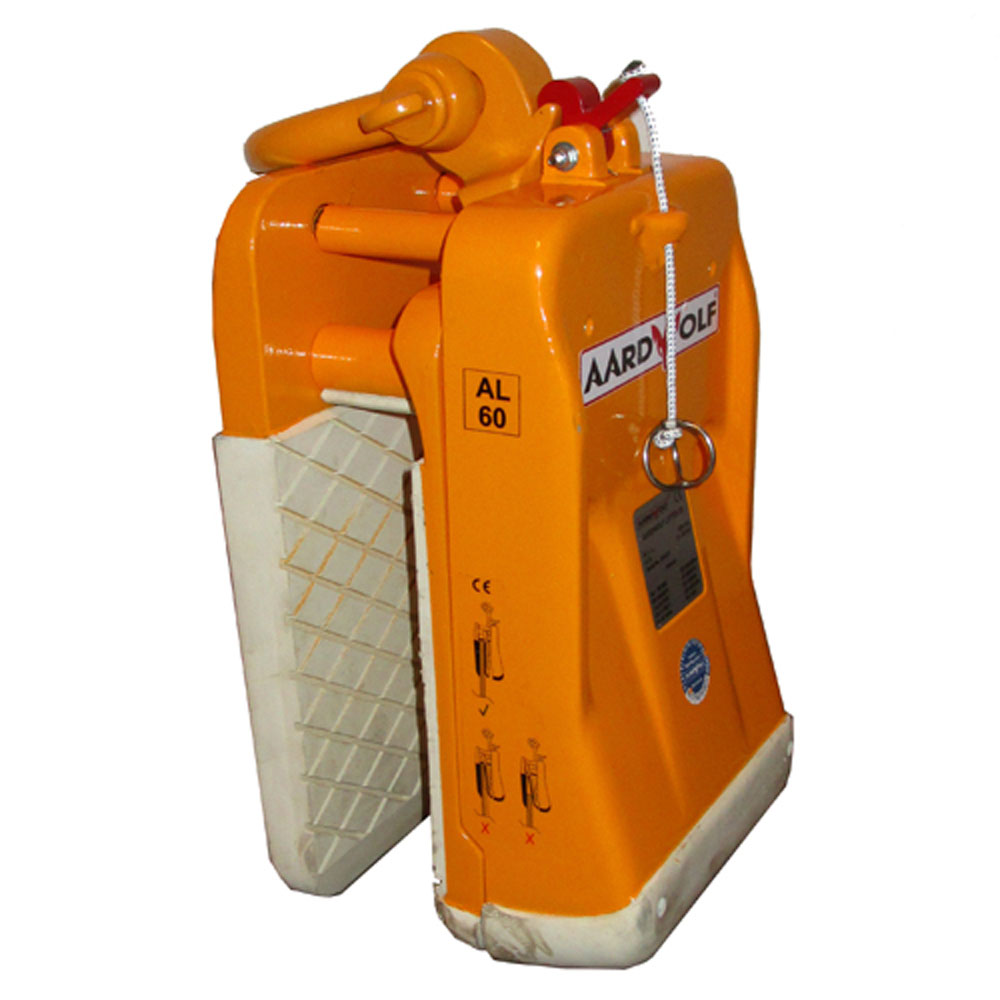

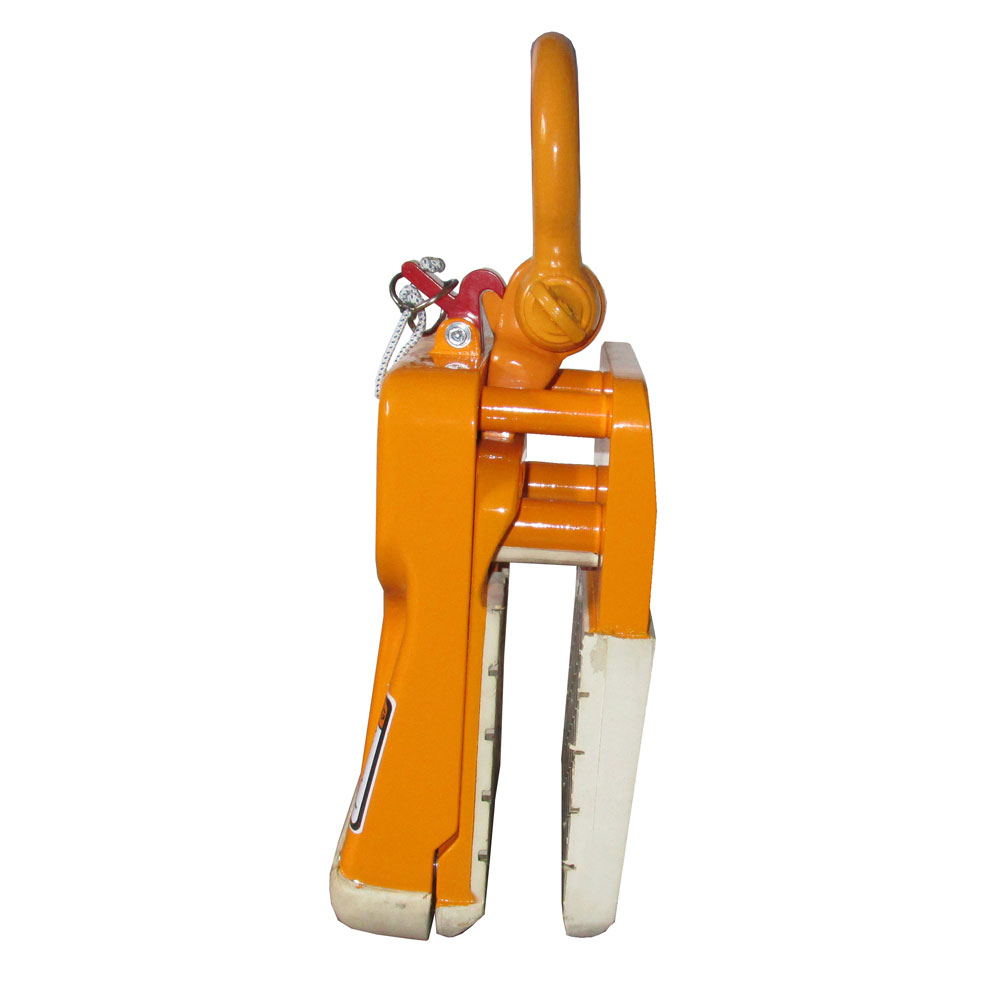

1200kg slab holder clamp with manual release

Art.
GF22/ALL

The slab holder clamp is an accessory for lifting slab loads of stone nature up to 1200kg.

Request a quote

Description

The Girlanda F.lli grapple is built exclusively for lifting slab-shaped loads of stone nature.
It is possible to lift slab loads, in good condition, solid and compact, without any damage such as to cause the risk of breakage during handling.
It is forbidden to lift slabs from a horizontal position to put them in a vertical position and vice versa.
It is available with a coating treatment.

The product complies with the regulations:

  • Machinery Directive 2006/42/EC and subsequent supplements.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the clamp is provided with the CE marking, accompanied by the CE declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic load-bearing structure in steel profiles
  • Rubber pads to protect the slabs
  • Automatic release

Models and sizes

The clamp is built in 4 models.

Model GF22/ALL 0-3

Maximum lifting load  kg 1.200
External length  cm 19
External width  cm 15
Total height  cm 33
Lockable plate thickness min – max  mm 0 – 30
Mass  kg 16

Model GF22/ALL 1-5

Maximum lifting load  kg 1.200
External length  cm 19
External width  cm 17
Total height  cm 35
Lockable plate thickness min – max  mm 10 – 50
Mass  kg 19

Model GF22/ALL 1,5-6

Maximum lifting load  kg 1.200
External length  cm 19
External width  cm 18
Total height  cm 35
Lockable plate thickness min – max  mm 15 – 60
Mass  kg 25

Model GF22/ALL 3-7,5

Maximum lifting load  kg 1.200
External length  cm 19
External width  cm 20
Total height  cm 35
Lockable plate thickness min – max  mm 30 – 75
Mass  kg 25
