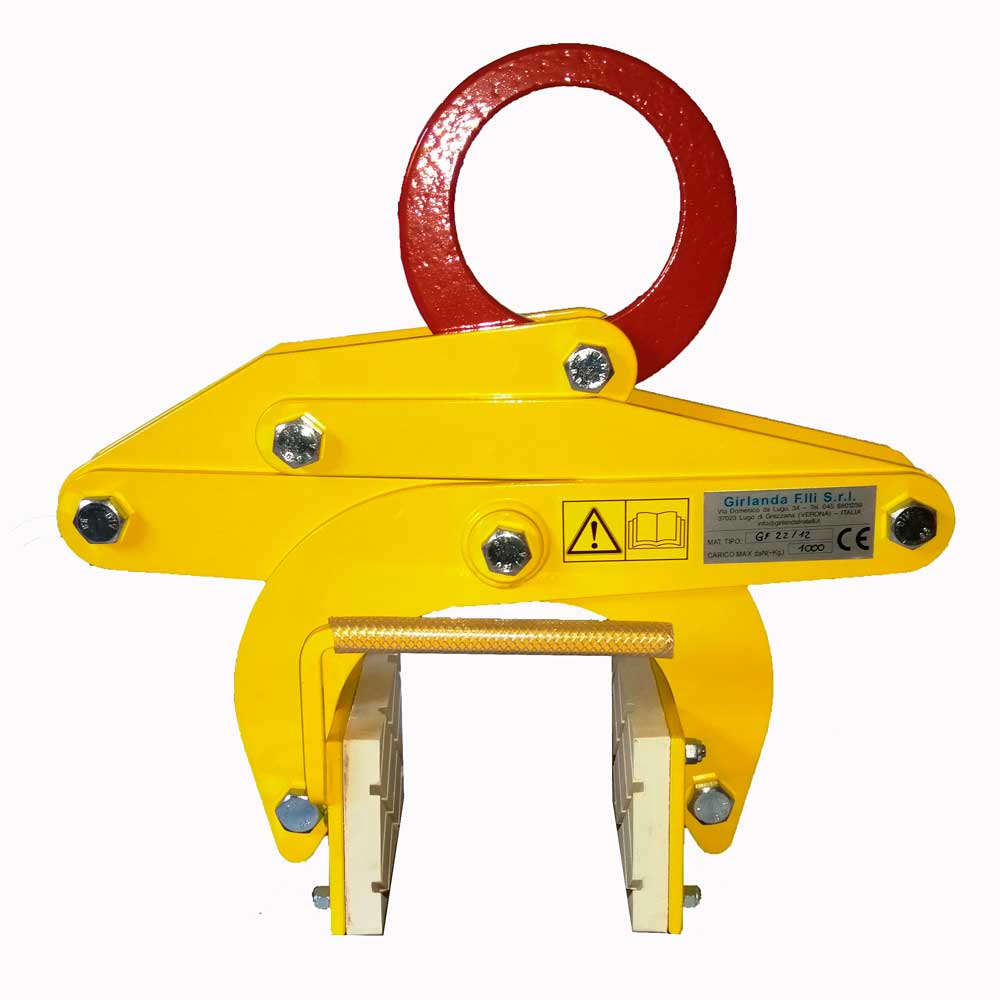

1000kg slab holder clamp from cm 1 to cm 12

Art.
GF22/12

The slab-carrying clamp is an accessory designed and built for lifting slabs of marble, granite and stone material in general up to 1000 kg.

Request a quote

Description

The Girlanda F.lli grapple is designed for lifting slab-shaped stone loads.
Slab-shaped loads can be lifted, in good condition, solid and compact, with no damage that could cause a risk of breakage during handling.
It is available with a powder coating treatment.

The product complies with the standards:

  • Machinery Directive 2006/42/EC and subsequent supplements.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market the clamp is provided with the CE marking, accompanied by the CE declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic supporting structure in steel profiles
  • 2 rubber pads

Models and sizes

Maximum working load kg 1.000
External length  cm 48
External width  cm 16
Total height  cm 46
Overall dimensions with slab thickness 1 cm  cm 68 x 46
Overall dimensions with slab thickness 12 cm  cm 50 x 47
Slab thickness min-max  mm 10-120
Mass  kg 22
