Pair of steel stands for slab deposit with 4 steel poles

Art.
GF7/03

The stand is a piece of equipment designed and built to deposit and store slabs of marble, granite or stone material in general.

Request a quote

Description

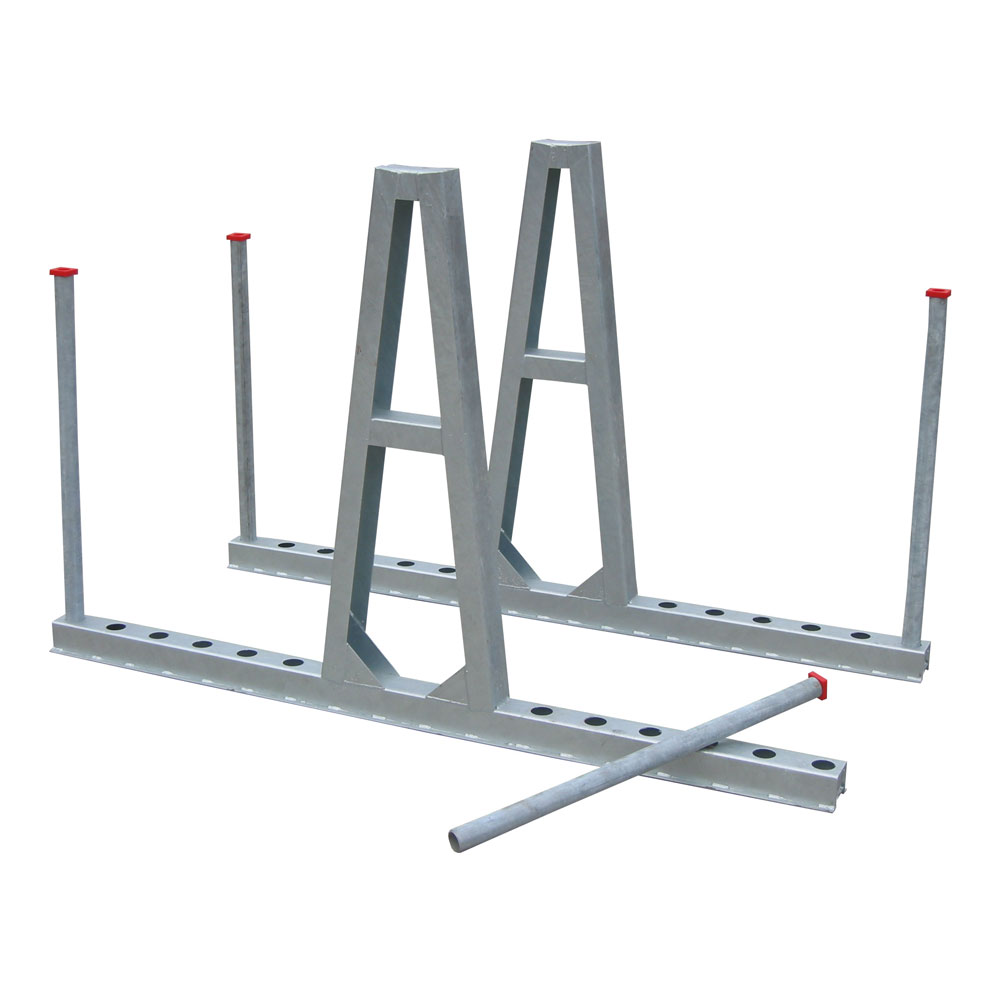

The Girlanda Fratelli stand is an equipment designed and built to store slab loads. It consists of a pair of “St. Andrew’s Cross” steel structures, with stringers resting on the ground and provided with holes for the insertion of vertical stakes. There are 4 posts, one for each drilled spar.
The maximum load capacity of the stand, with the weight resting against the central “St Andrew’s cross”, is 15.000 kg, distributed on both sides.
The maximum load capacity of the stand, with the weight resting on one side only, is 6.000 kg.
The maximum total load capacity for each pair of posts is 2.700 kg.
The stand is available with galvanizing treatment, is built in 1 model or tailored to meet any need.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the stand is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic load-bearing structure in steel profiles.
  • Transversal reinforcing elements of the side in welded steel profiles.
  • 4 posts diam. 60×5 mm 120 cm high.

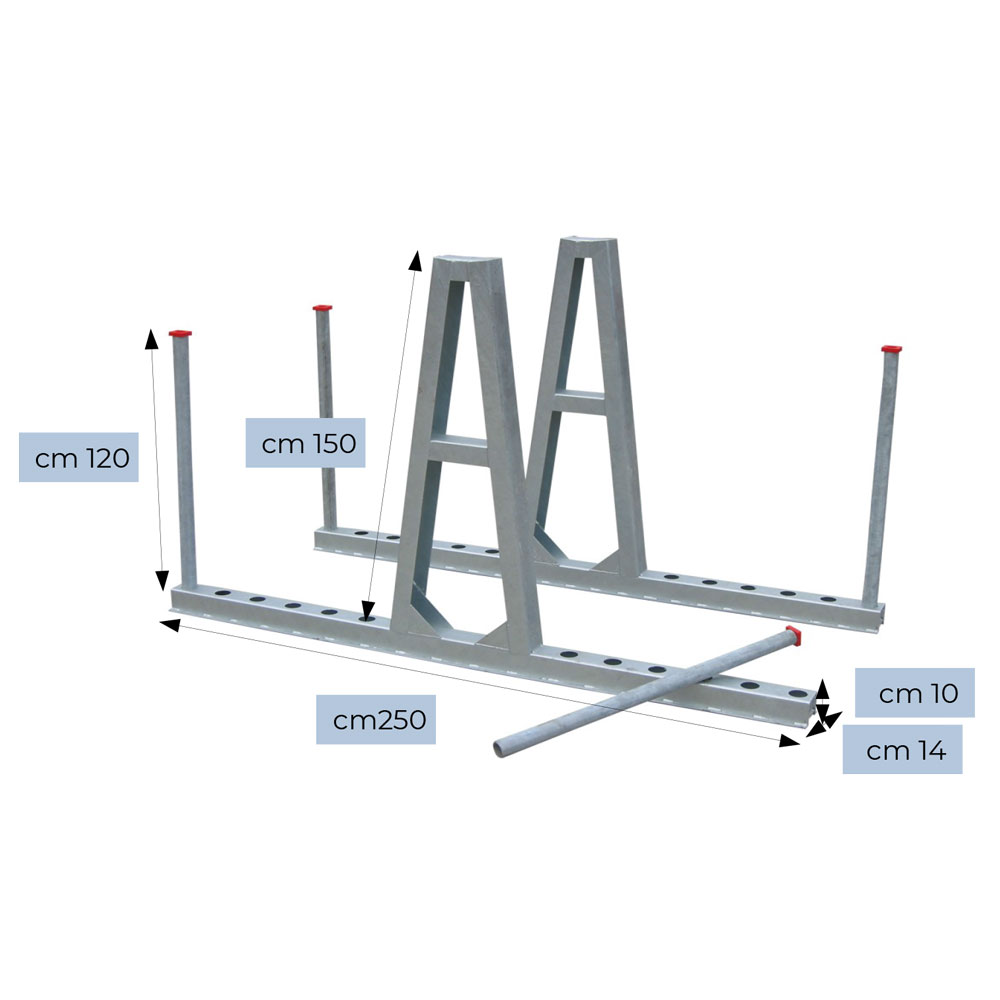

Models and sizes

Stand capacity  kg 15.000
Pair of stake capacity  kg 2.700
Length  cm 250
Width  cm 14
Height  cm 160
Pole diameter  mm 60×5
Mass per pair  kg 168
