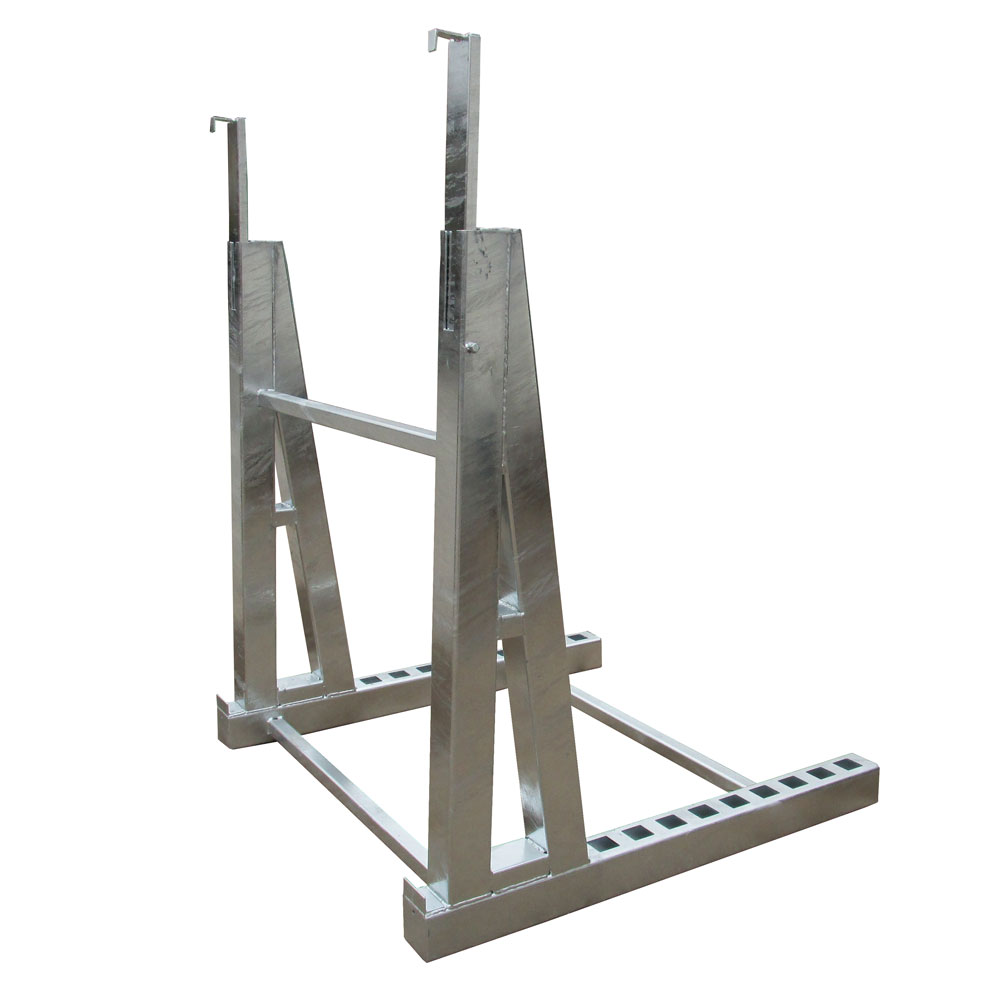

Pair of stands with poles

Art.
GF7/03SPEC

The stand is a piece of equipment designed and built to display, deposit and store slabs of marble, granite or stone material in general.

Request a quote

Description

The Girlanda Fratelli stand is an equipment designed and built to display, deposit and store slabs of marble, granite or stone material in general.

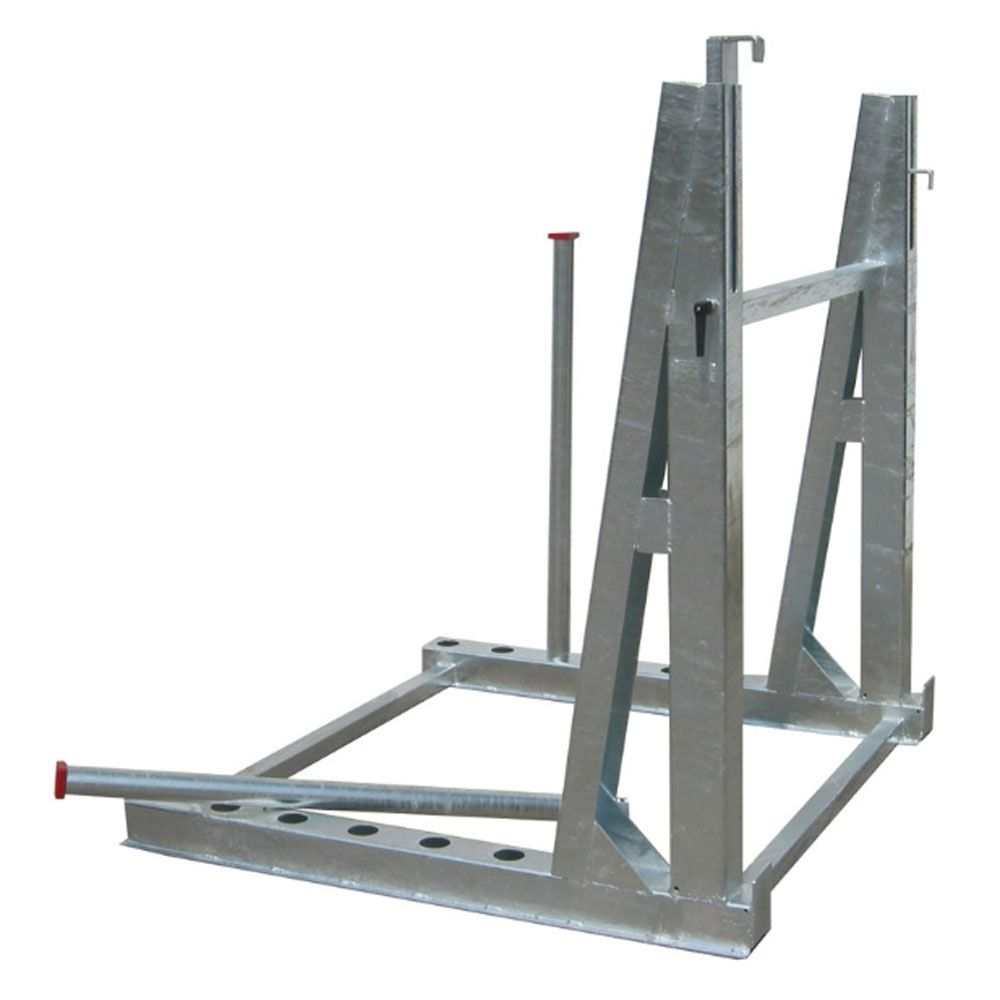

One of the sides of the stand is specifically structured for slab storage and warehousing, in particular the ground side members are long and equipped with holes for the insertion of stakes. There are 2 stakes, one for each drilled beam.
The other side of the trestle is designed to display a single slab, and is therefore equipped with much shorter floor stringers and height-adjustable tubes on the slab support shoulder.
The stand is available with galvanizing treatment. The container is built in 1 model or made to measure to meet any need.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the container is equipped with CE marking, accompanied by the EC declaration of conformity and the instruction manual.

Technical characteristics

  • Basic load-bearing structure in steel profiles.
  • Transversal reinforcing elements of the side in welded steel profiles.
  • 2 60x60x4 mm posts 120 cm high.

Models and sizes

Maximum working load  kg 5.000
Length  cm 150
External width  cm 145
Useful width  cm 105
Total height  cm 160
Shoulder height  cm 146
Mass  kg 152
