Double steel stand for transporting and storing slabs

Art.
GF7/16

The stand is a piece of equipment designed and built for transporting, storing and depositing slabs of marble, granite or stone material in general.

Request a quote

Description

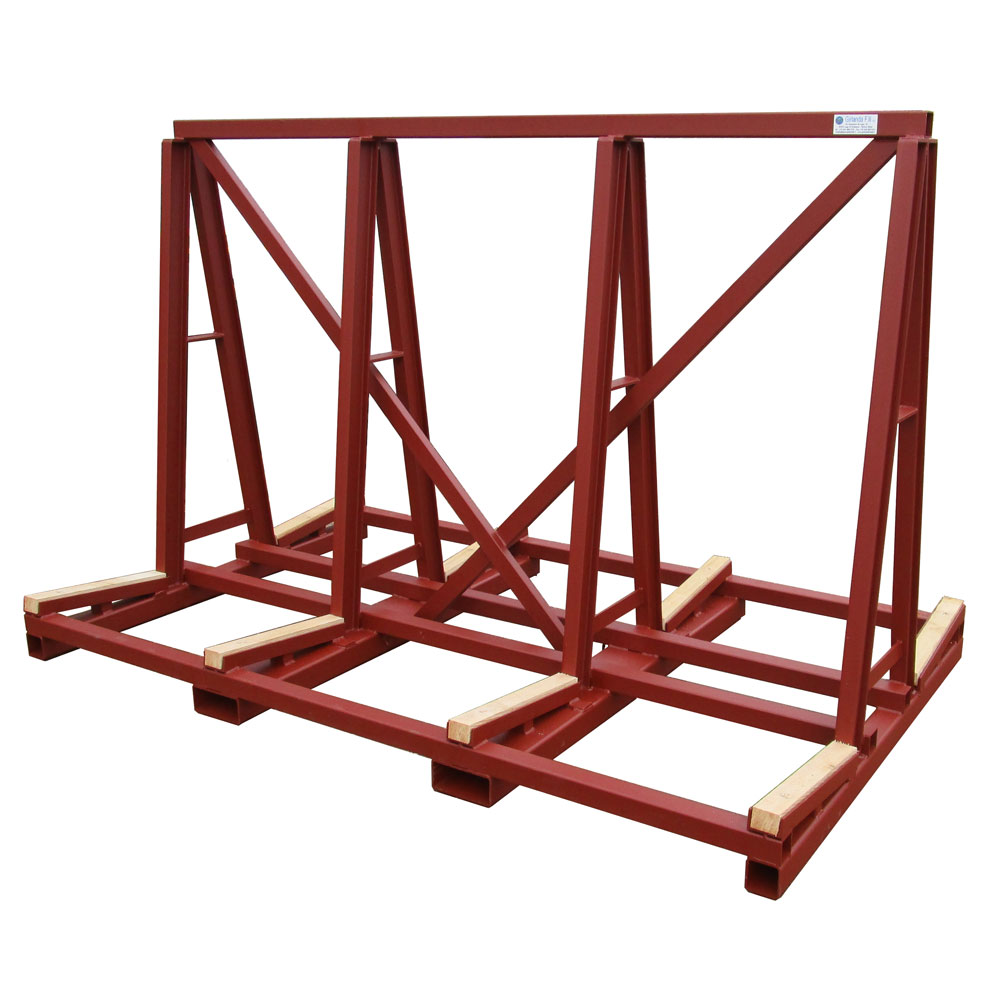

The Girlanda Fratelli stand is a piece of equipment designed and built for transporting or storing slab loads. It consists of a pair of steel structures in the shape of a “St. Andrew’s Cross”, with side members resting on the ground and joined together.
The trestle can be used with a self-propelled forklift truck, using the tubular supports provided by the manufacturer to hold the forks of the forklift truck.
The trestle is available with painting treatment and is built in 1 model or on measure to satisfy any need.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic supporting structure in steel profiles.
  • Supporting shoulder in steel profiles.
  • Transversal reinforcing elements of the side in welded steel profiles.
  • Housings for forklift forks.
  • Wooden strip for material support on the base.

Models and sizes

Maximum working load  kg 5.000
Length  cm 250
Width  cm 150
Height  cm 160
Useful width  cm 2×49
Mass per pair  kg 315
