Vertical slab deposit rail

Art. GF28/04E

The rail is a piece of equipment designed and built to store slabs of marble, granite or stone material in general.


Description

The Girlanda F.lli rail is an equipment designed and built to store or to expose slab loads.

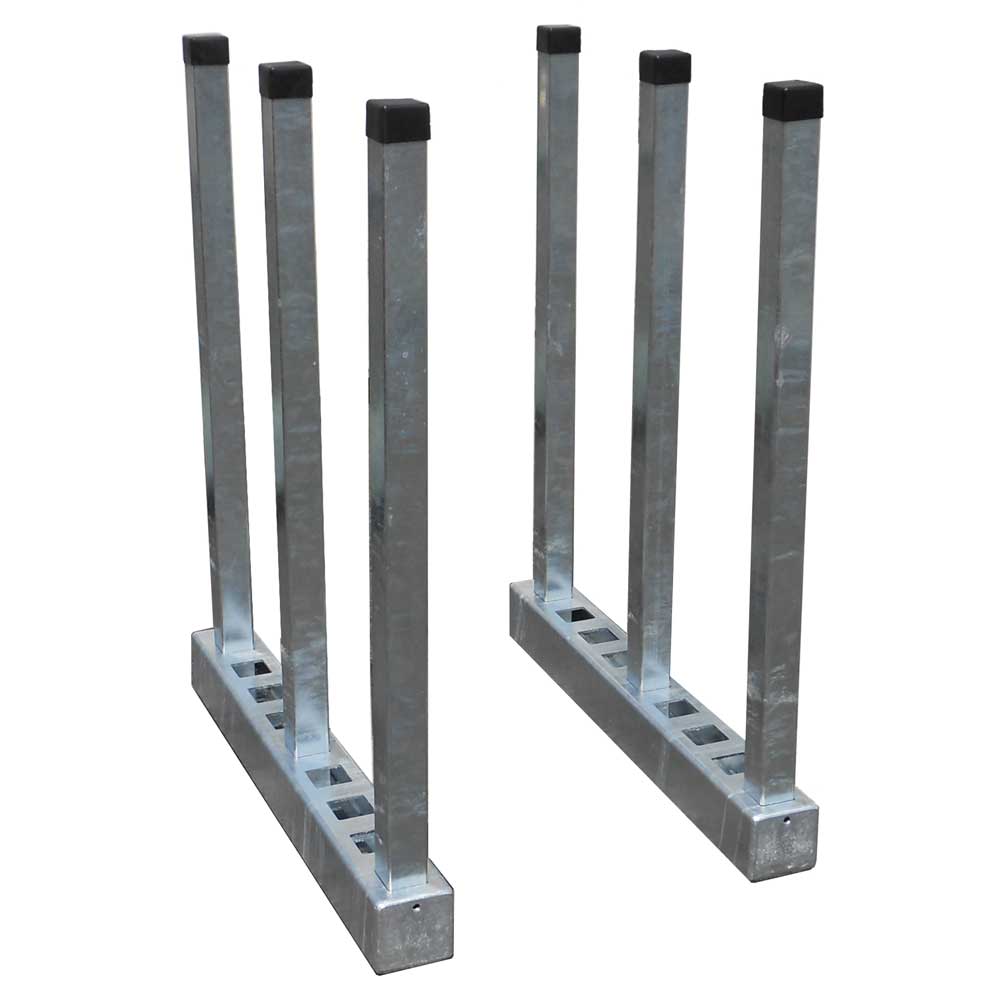

It is made up of a pair of steel structures which are supported on the ground and into which a series of 6 poles movable two by two by means of a row of holes on both structures is introduced. The posts have the function of supporting the packs of slabs and are square in shape with an anti-scratch cap at the end. The rail is available galvanized or dip-painted.
The product is manufactured in 1 model or made to measure to meet any requirement.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic supporting structure in steel profiles
  • 6 posts 60x60x4 height cm 120

Measures and models

Maximum thickness of slabs in support per pair of posts mm

350

Length mm

920

Width at the base mm

120

Height mm

120

Height pole mm

1200

Square stakes height 120 cm mm

60x60x4

Mass (weight) kg

90
