Vertical slab deposit rail

Art.
GF28/GQ

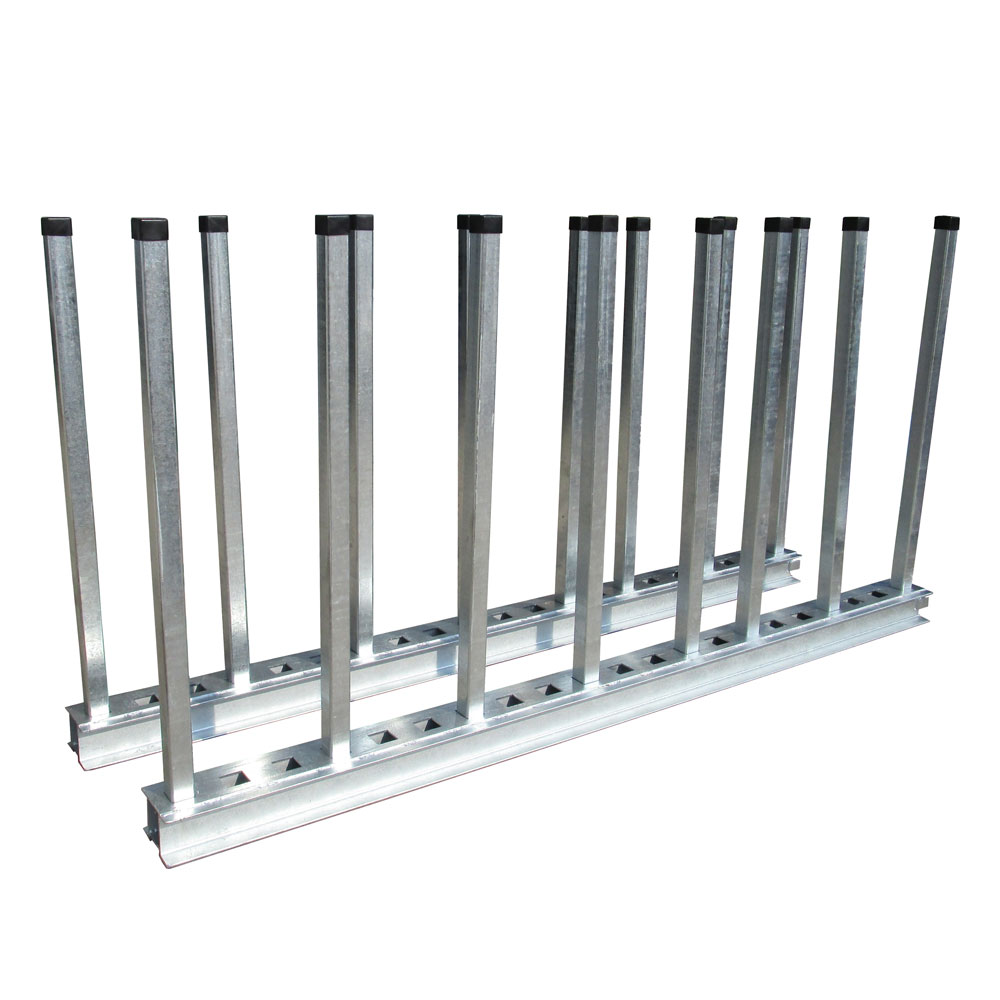

The rail consists of two 120 mm UNP and 2 laser-cut blades with 62 mm holes, equipped with n. 14 posts of 60x60x4 mm height 150 cm in vertical position.

Request a quote

Description

The Girlanda Fratelli rail is an equipment designed and built to store slab loads vertically.
It consists of a pair of steel structures that are supported on the ground and into which a series of 14 posts are inserted, movable two by two, by means of a row of holes provided on both structures. The posts have the function of supporting the packs of slabs and are square in shape. The rail is available with galvanizing treatment or immersion painting. The rail is manufactured in one model or made to measure to meet any need.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and subsequent integrations.

Technical characteristics

  • Basic supporting structure in steel profiles.
  • 14 posts 60x60x4 height cm 150.

Models and sizes

Maximum load per pair of posts  kg 2.700
Length  cm 300
Base width  cm 18
Base height  cm 12
Post height  cm 150
Square post  mm 60x60x4
Mass  kg 350
