Vertical slab deposit rail

Art.
GF28/GE

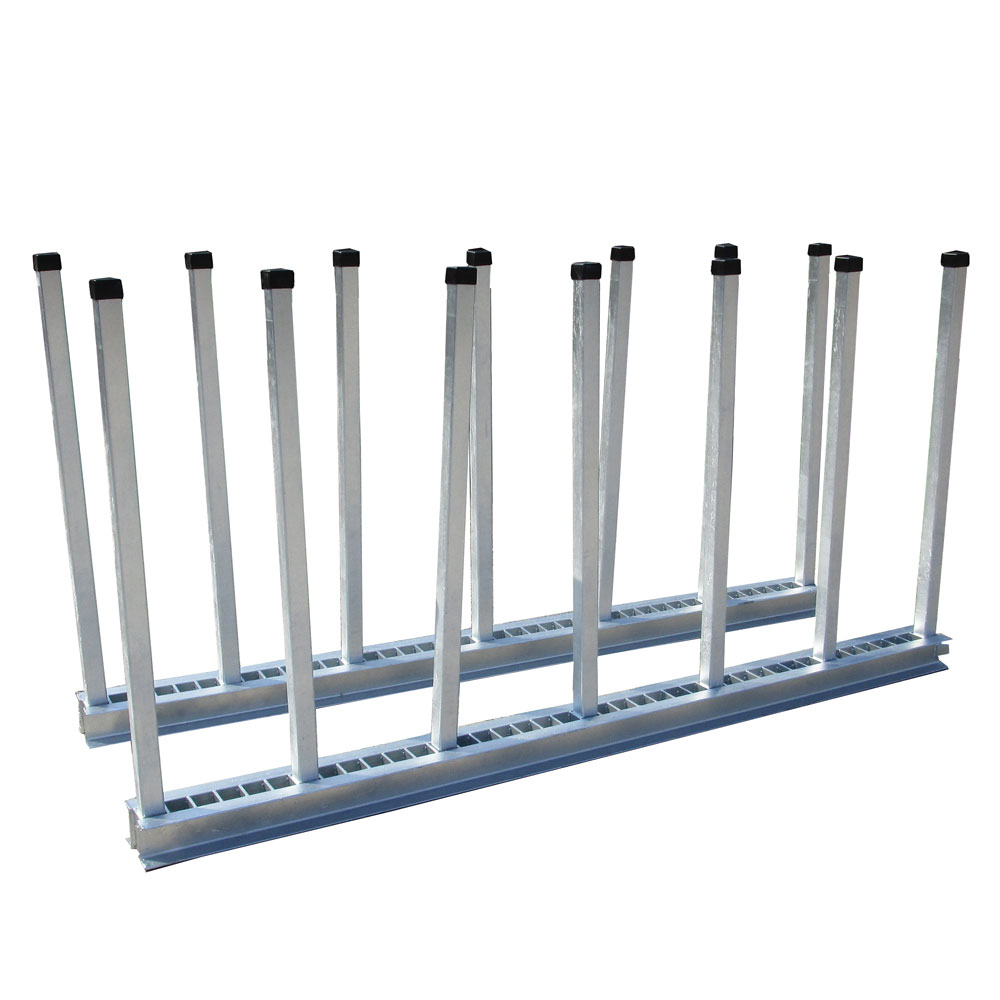

The rail is composed of two 120 mm UNP and 42 welded blades, it is equipped with 14 tubular steel posts 60x60x4 mm height 150 cm. The distance between the blades of 64 mm allows the posts to remain in a slightly sloping position, which favors the support of the slabs.

Request a quote

Description

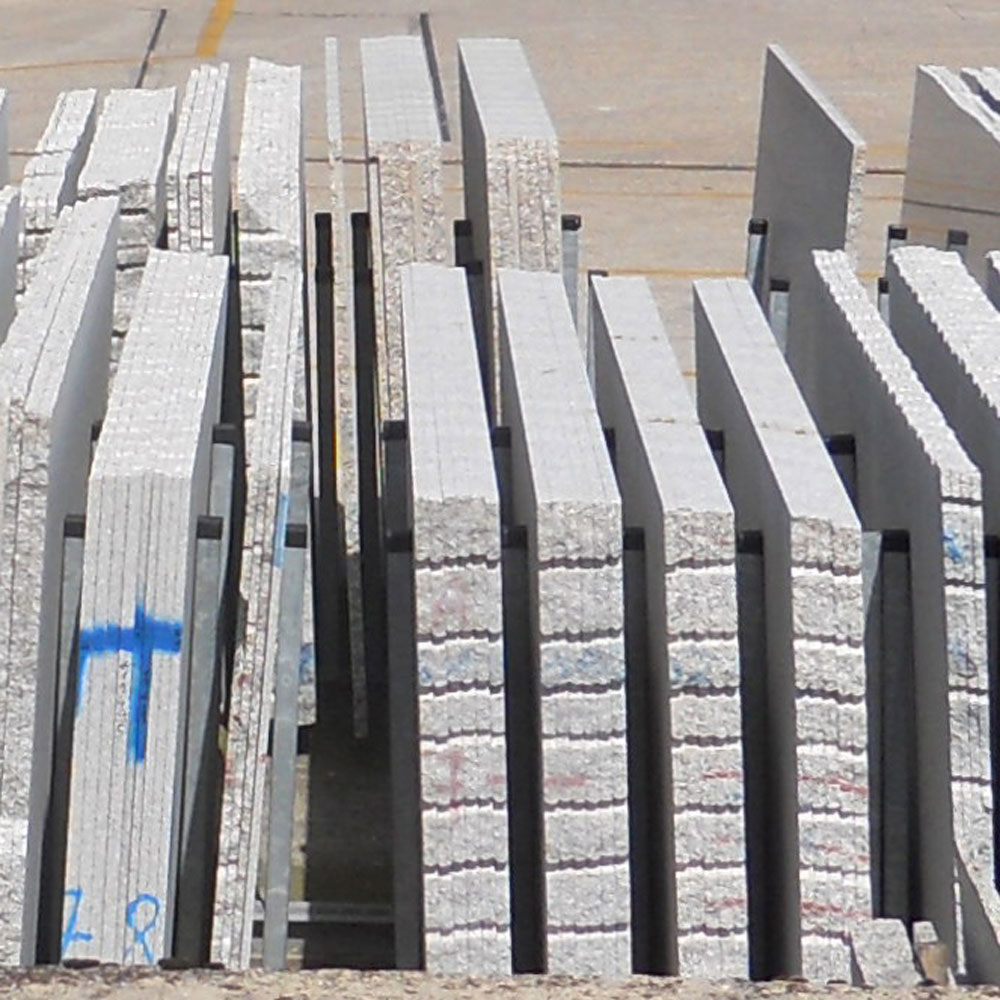

The Girlanda Fratelli rail is an equipment for storing slab loads.
It consists of a pair of steel structures resting on the ground, into which a series of n. 14 posts are inserted, movable two by two, by means of a row of welded slats specially provided on both structures. The posts act as support for the packs of slabs and are square in shape. The product is available with galvanizing treatment or immersion painting.
The rail is manufactured in one model or made to measure to meet any need.

The product complies with the standards:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic supporting structure in steel profiles.
  • 14 posts 60x60x4 height cm 150.

Models and sizes

Maximum load per pair of posts  kg 2.700
Length  cm 300
Base width  cm 18
Base height  cm 12
Post height  cm 150
Square post  mm 60x60x4
Mass  kg 350
