Vertical slab deposit rail

Art. GF28/04

The rail is a piece of equipment designed and built to store slabs of marble, granite or stone material in general.


Description

The Girlanda F.lli track is an equipment designed and built to store slab loads.

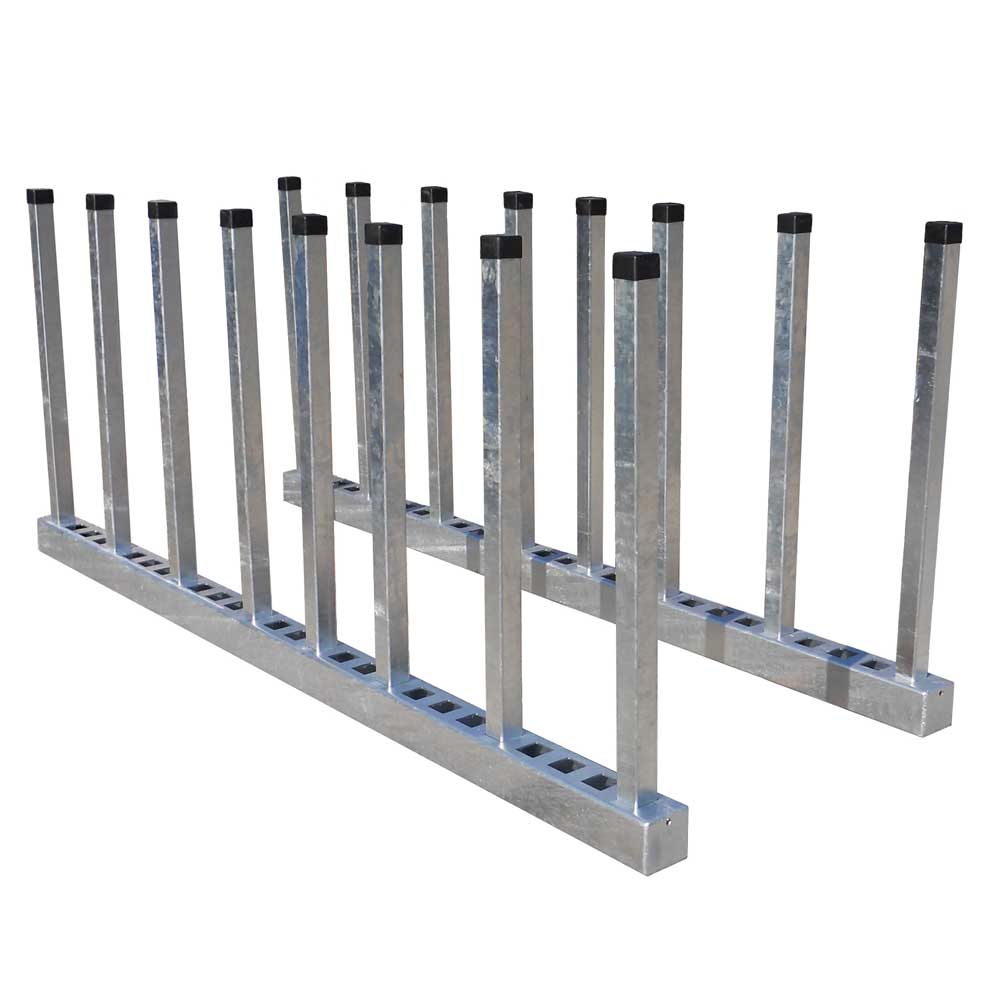

It consists of a pair of steel structures that are supported on the ground and into which a series of 16 posts are inserted, movable two by two, by means of a row of holes provided on both structures. The posts have the specific function of supporting the packs of slabs and are square in shape with an anti-scratch cap at the end. The product is available galvanized or dip-painted.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and subsequent integrations.

Technical characteristics

  • Basic supporting structure in steel profiles
  • 16 posts 60x60x4 height cm 120

Measures and models

Maximum thickness of slabs in support per pair of posts mm

350

Length mm

2960

Width at the base mm

120

Height mm

120

Height pole mm

1200

Square stakes height 120 cm mm

60x60x4

Mass (weight) kg

275
