Art. GF12/P3

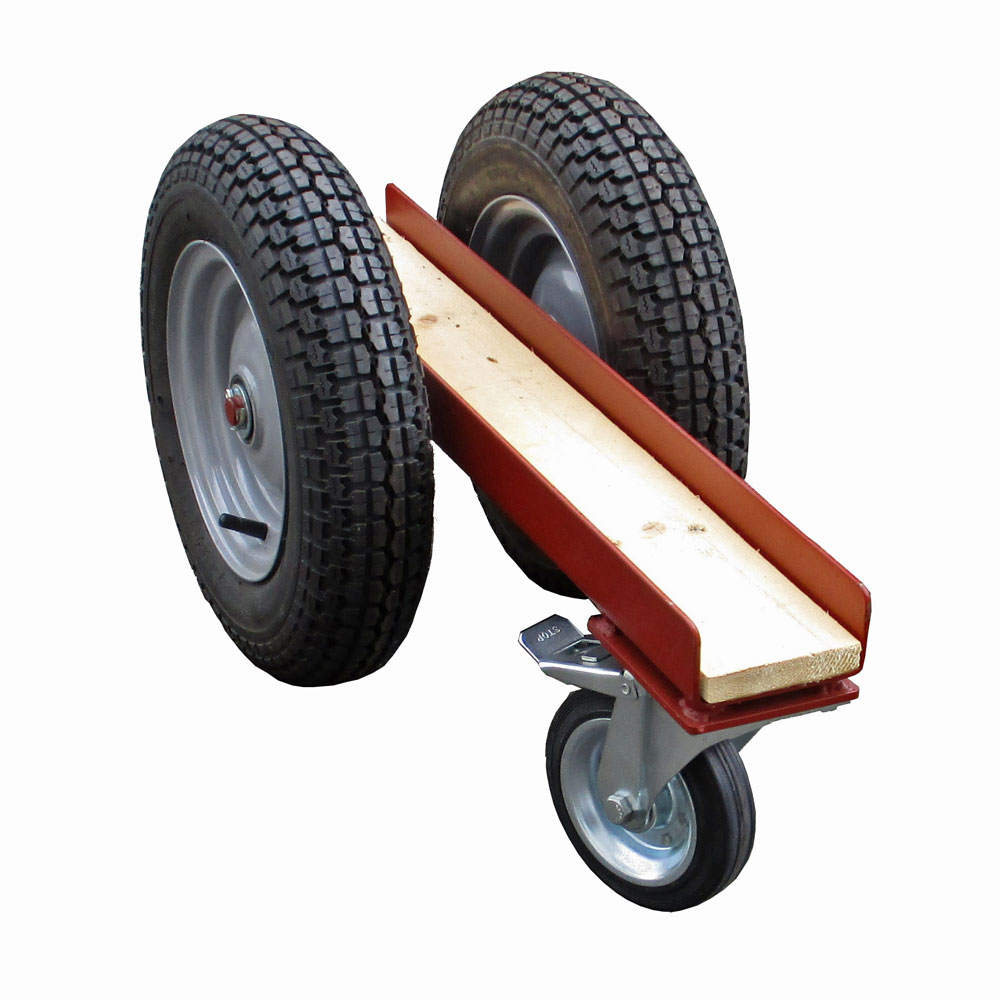

The Trolley is an accessory designed and built to handle slab-shaped loads, suitable for small and medium-sized marble slabs, or slab-shaped stone material.


Description

The trolley is equipped with 2 pneumatic wheels 3.50.8 and a swivel wheel diam. 150 with brake. The base is covered with wooden boards.
It is built to meet the various needs can be used inside and outside of your laboratories and maneuvered by hand pulling.
The container is built in 1 model or tailored to meet any need. It is also available with immersion painting treatment.

Technical characteristics

  • Base supporting structure in steel profiles
  • 2 pneumatic wheels 3.50.8
  • 1 wheel diam. 150 swivel with brake

Measures and models

Customized models can also be supplied.

Maximum working load daN(~kg)

300

Length mm

70

Width at the base mm

350

Useful load width mm

110

Pneumatic wheels

3.50.8

Solid rubber swivel wheels mm

150

Mass (weight) kg

18
