Stand with wheels diameter 280

Art.
GF3

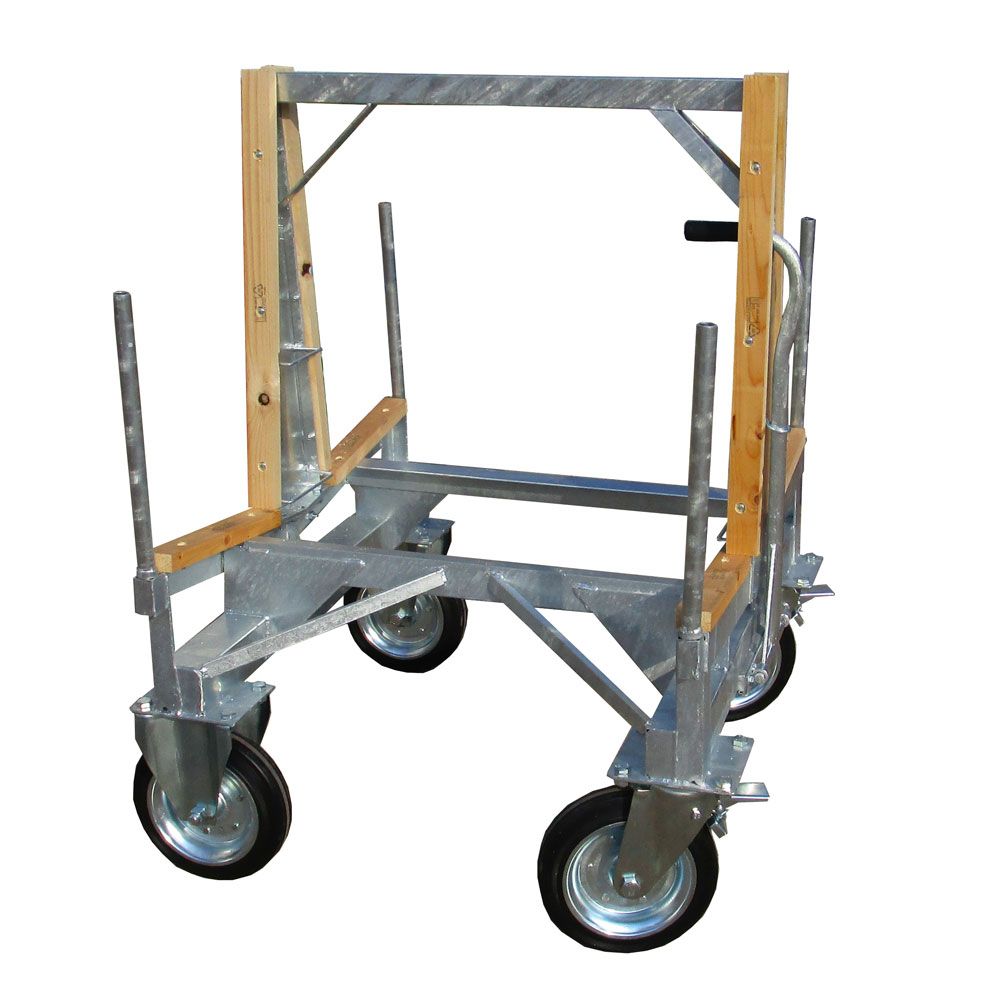

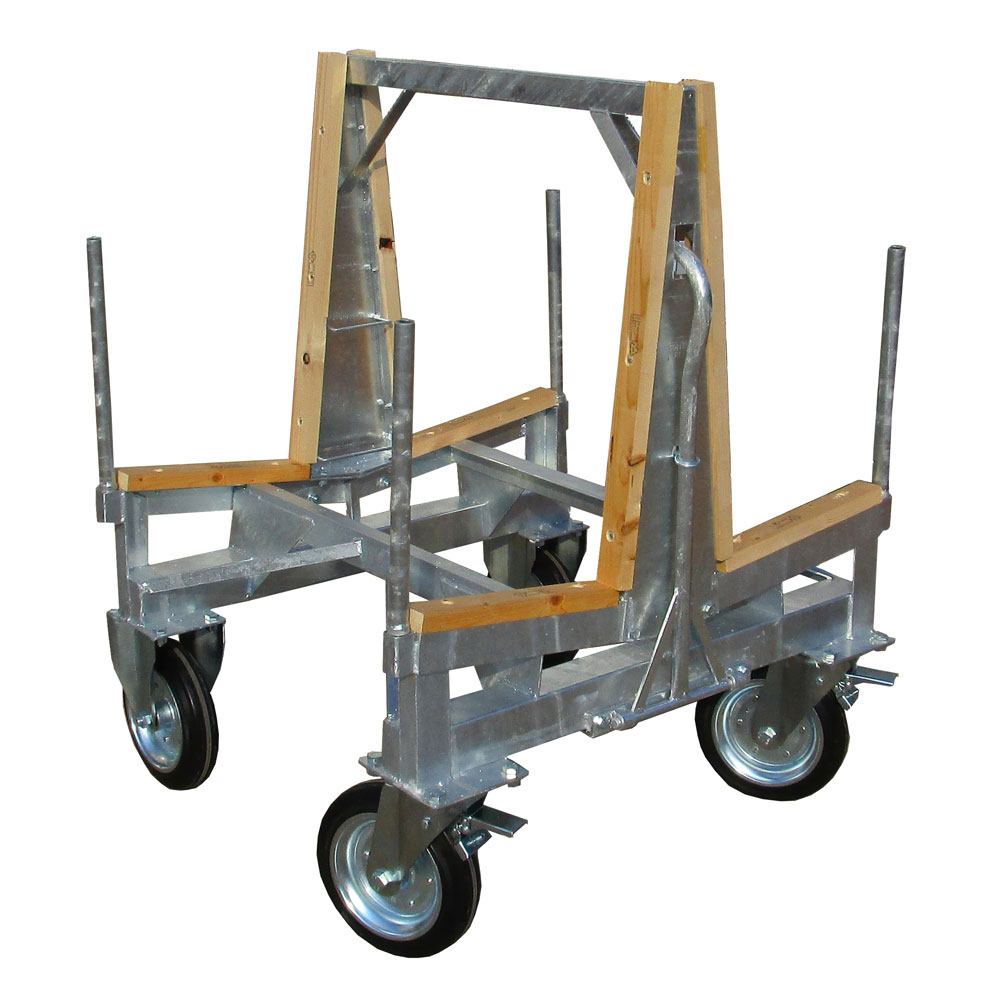

Two-sided trolley with four dual-component rubber wheels (two swivel wheels with brakes and two fixed wheels), 280 mm in diameter. The base and sides are wood-covered.

Request a quote

Description

The Girlanda Fratelli steel trolley is designed and built for the handling of small and medium-sized processed products, bathroom tops and kitchen tops or stone slab material deriving from the processing of marble, granite and other stone products. It is built to meet the various needs can be used inside and outside of your laboratories and maneuvered by hand pulling.
The trolley is equipped with 4 wheels, 2 swivel with brake and 2 fixed wheels made of two-component rubber anti-crushing with double ball bearing sliding.
The base and shoulder of the container are covered with wooden boards.
The container is built in 1 model or tailored to meet any need. It is also available with galvanizing treatment or painting.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic load-bearing structure in welded steel profiles.
  • Side structure upright in welded steel sections.
  • Transversal reinforcing elements of the base made of welded steel profiles.
  • 2 swivel wheels diam. 280 mm with brake.
  • 2 fixed wheels diam. 280 mm.
  • Wooden strip for supporting material on the supporting shoulder.
  • Wooden strip for supporting material on the base.

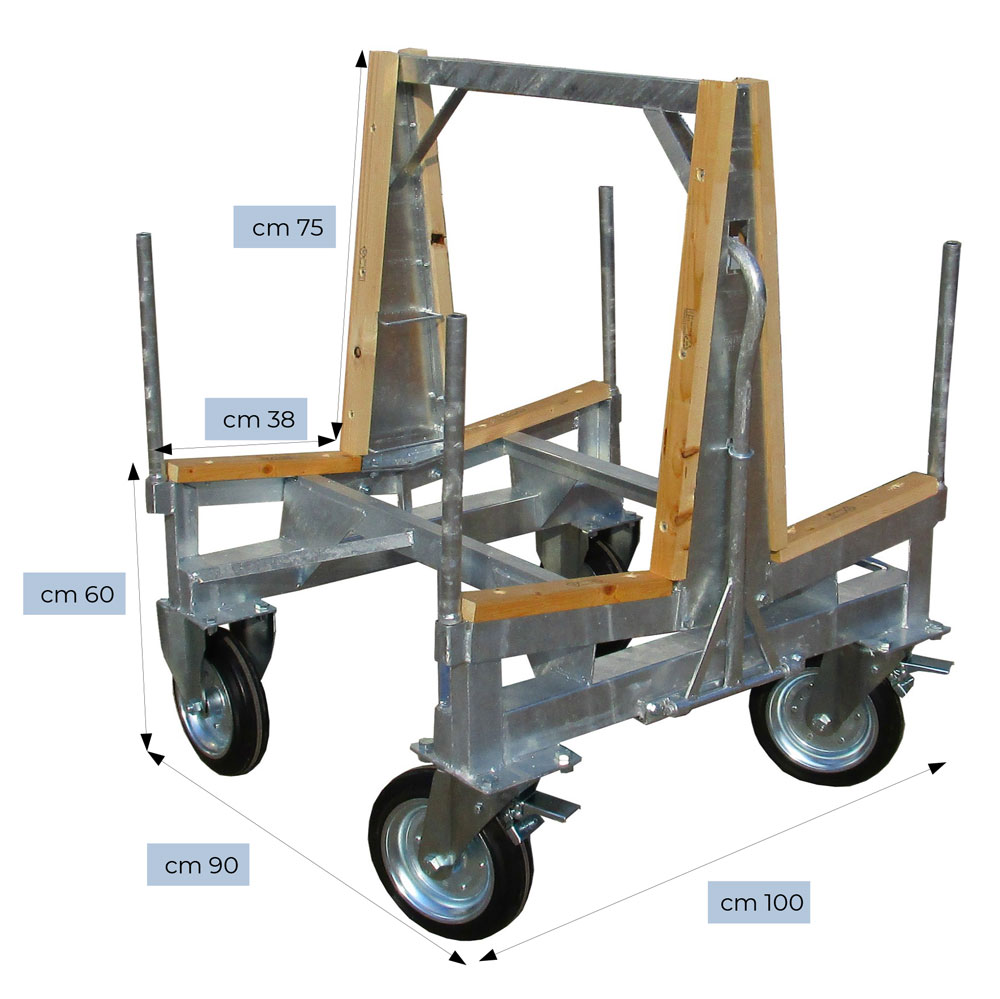

Models and sizes

It is also possible to supply made-to-measure models.

Maximum working load  kg 1.200
Length  cm 90
External width  cm 100
Useful width  cm 2×38
Total height  cm 130
Shoulder height  cm 75
Height from ground to worktop  cm 60
Wheels diameter mm 280
Mass  kg 91
