Lower frame with wheels diameter 280

Art.
GF/TI

Trolley designed and built for handling Art. GF/CS or medium-sized marble, stone slab material resulting from the processing of marble, granite and other stone products.

Request a quote

Description

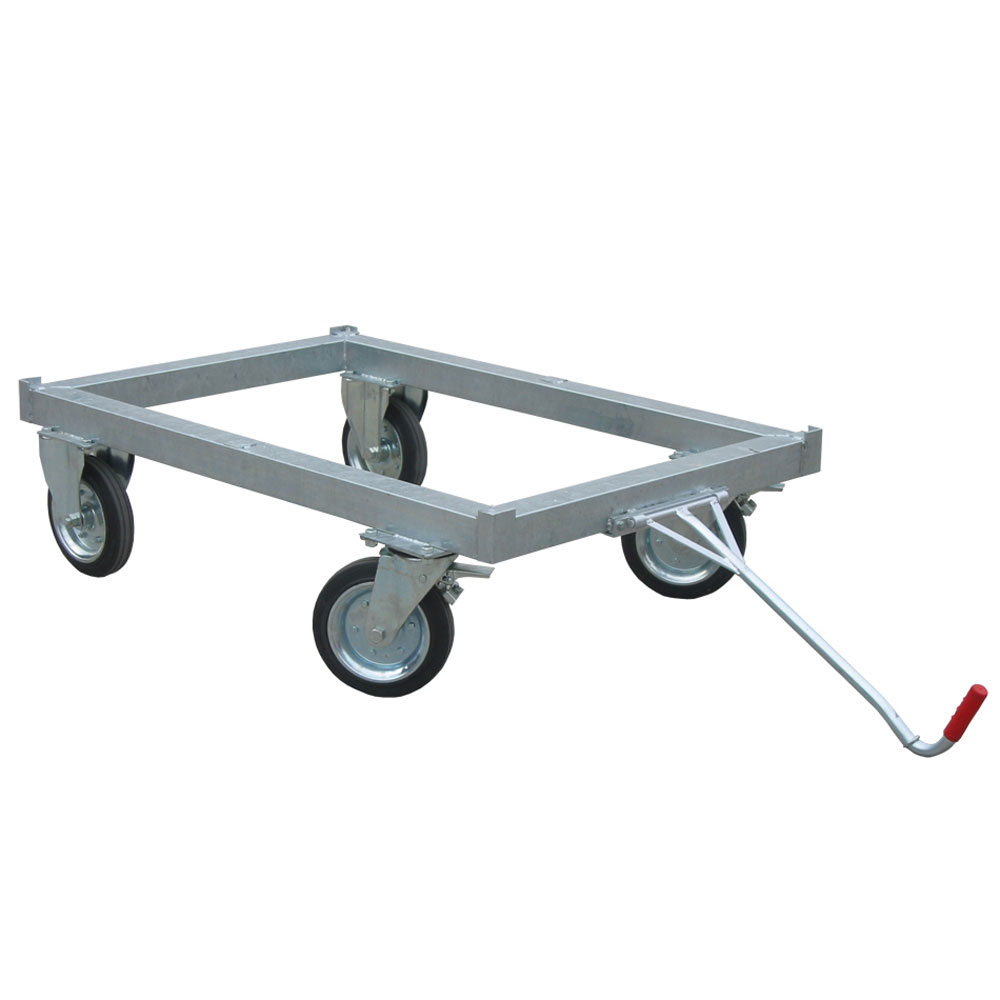

The Girlanda Fratelli steel trolley is an accessory suitable for loading the Art. GF/CS upper stand and it is built to meet the various needs can be used inside and outside of your laboratory and maneuvered by hand pulling..
The trolley is equipped with 4 wheels, 2 swivel with brake and 2 fixed, diam. 280 mm in anti-crushing bicomponent rubber with double ball bearing sliding.
The trolley is built in 2 models or made to measure to meet any need. It is also available with galvanizing treatment or painting.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Base supporting structure in welded steel profiles.
  • 2 swiveling bicomponent rubber wheels with brake, diameter 280 mm.
  • 2 fixed bicomponent rubber wheels diam. 280 mm.
  • Hand towing drawbar.

Models and sizes

The 2 versions available differ in their external dimensions.
It is also possible to provide custom models.

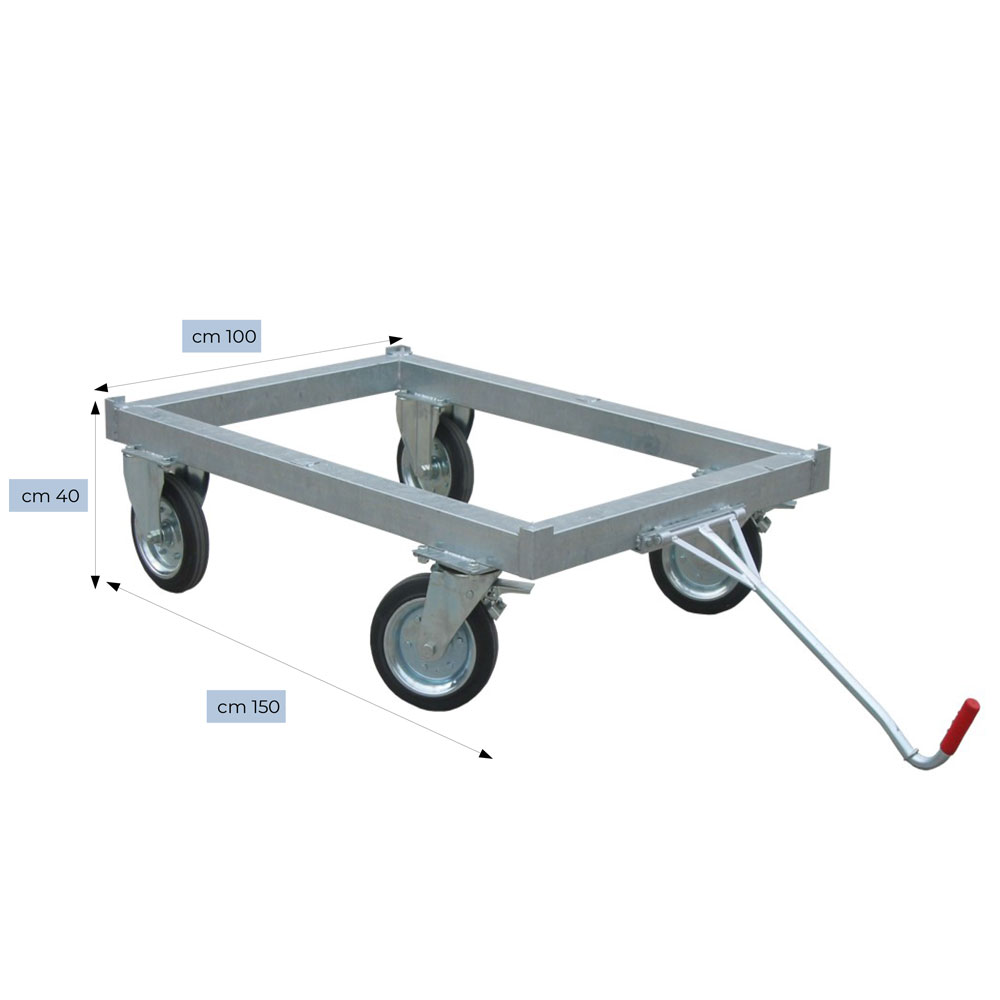

Model 150x100x40h

Maximum utilization load  kg 1.200
Length  cm 150
External width  cm 100
Total height  cm 40
Wheels diameter  mm 280
Mass  kg 62

Model 200x75x40h

Maximum utilization load  kg 1.200
Length  cm 200
External width  cm 75
Total height  cm 40
Wheels diameter  mm 280
Mass  kg 66
