Container oblique side with wheels diam.250mm

Art.
GF2/GE

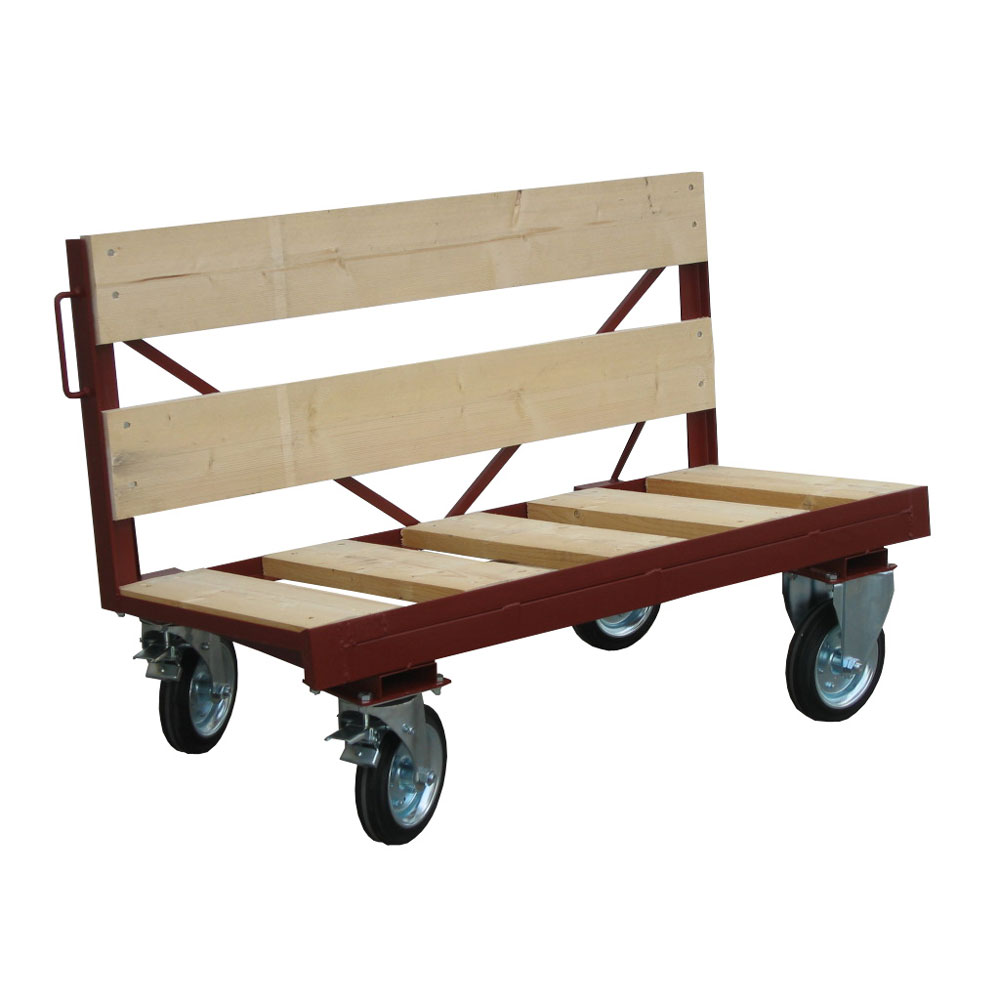

Trolley with a sloping side, fitted with solid rubber wheels (250 mm diameter); the base and side panels are covered in wood.

Request a quote

Description

The Girlanda Fratelli iron trolley is designed and built to handle marble, granite and other stone products of small and medium size, bathroom tops and kitchen tops or slab material. It is an accessory suitable for handling small and medium sized marble slabs, bathroom tops and kitchen tops or stone slab material and it is built to meet the various needs can be used inside and outside of your laboratories and maneuvered by hand pulling.
The trolley is equipped with 4 wheels, 2 swivel with brake and 2 fixed, diameter 250 with double ball bearing sliding. The base and shoulder of the container are covered with wooden boards.
The trolley is built in a model or tailored to meet any need. It is also available with galvanizing treatment or painting.

The product complies with the regulations

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic load-bearing structure in welded steel profiles.
  • Side structure upright in welded steel profiles.
  • Transversal reinforcing elements of the base made of welded steel profiles.
  • 2 swivel wheels diameter 250 mm with brake.
  • 2 fixed wheels diameter 250 mm.
  • Wooden strip for supporting material on the supporting shoulder.
  • Wooden strip for material support on the base.

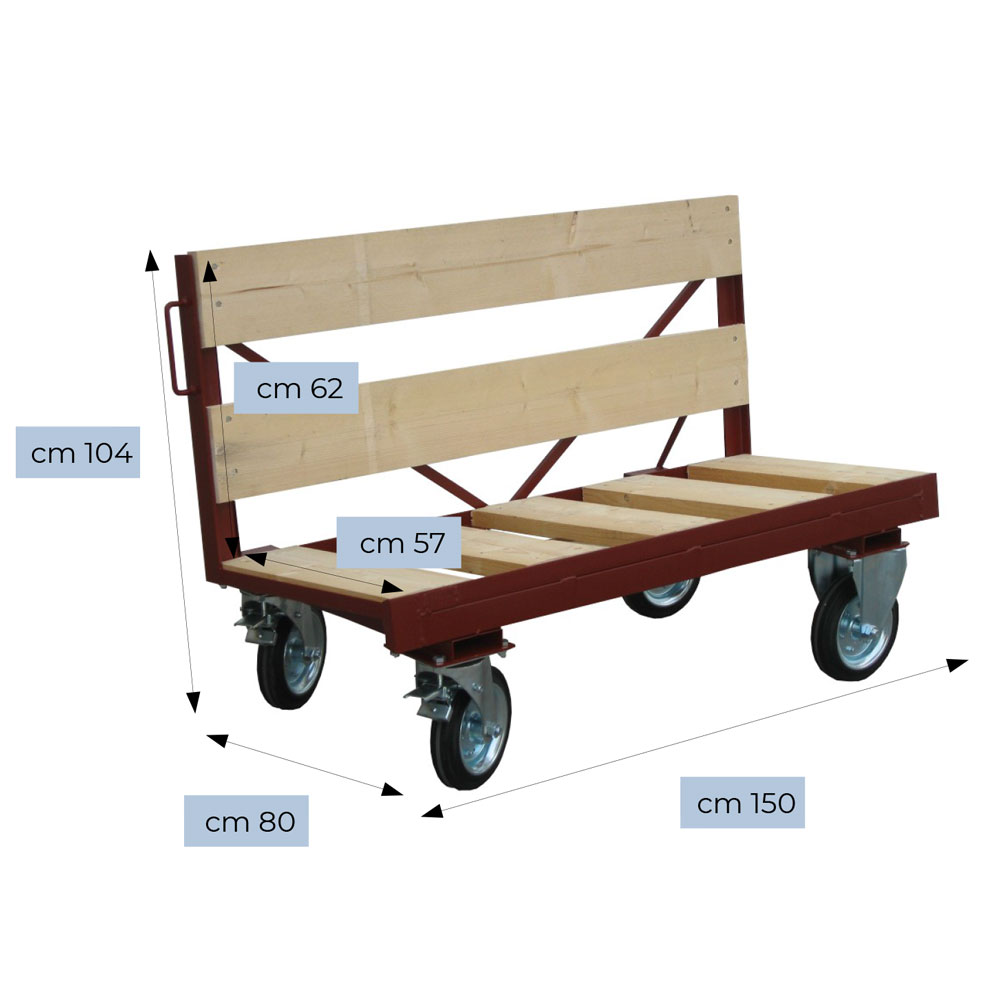

Models and sizes

It is also possible to supply customized models.

Maximum working load  kg 700
Length  cm 150
External width  mm 80
Useful width  cm 57
Total height  cm 104
Shoulder height  cm 62
Height from ground to worktop  cm 48
Wheels diameter mm 250
Mass  kg 98
