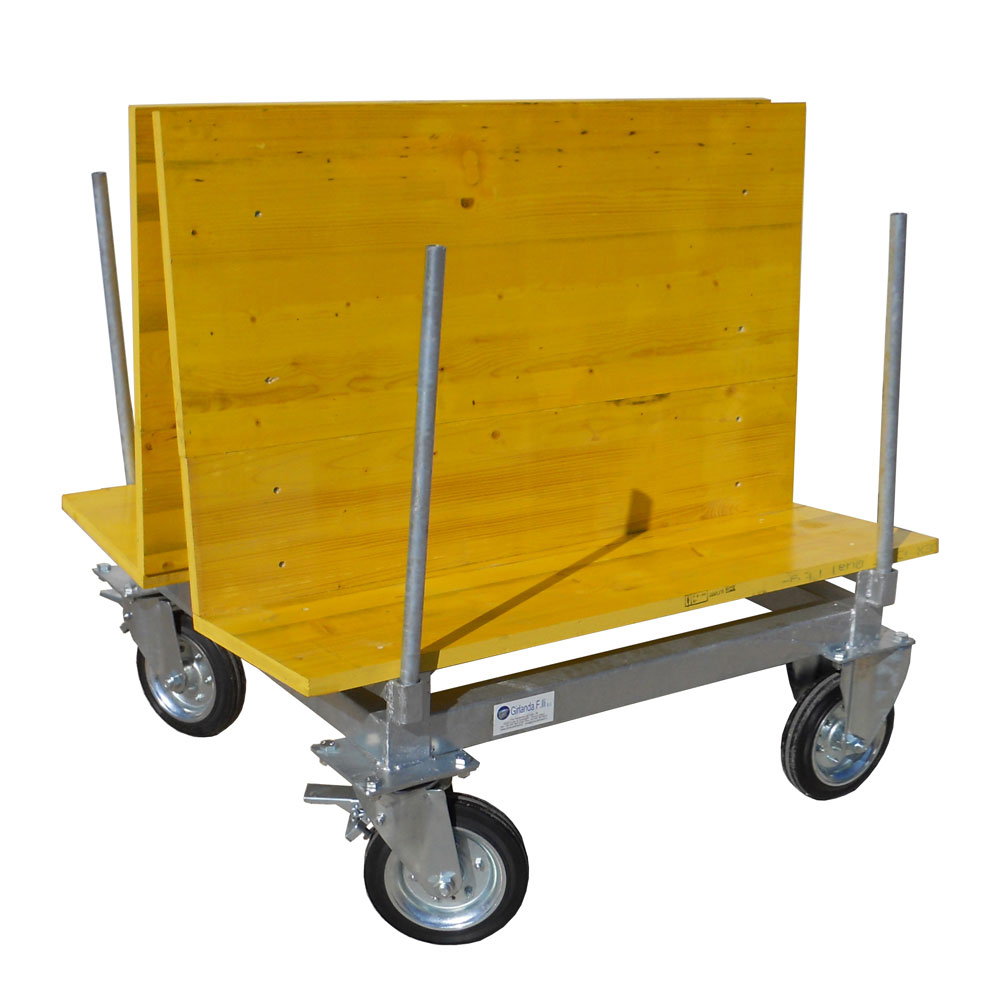

Blind bottom trestle with wheels diameter 250

Art.
GF3/AGE

Two-sided trolley with solid base, fitted with 4 solid rubber wheels (250 mm diameter), 2 swivel wheels with brakes and 2 fixed wheels.

Request a quote

Description

The Girlanda Fratelli steel trolley is designed and built for handling small and medium-sized marble workpieces, bathroom tops and kitchen worktops, or slab-shaped stone materials resulting from the processing of marble, granite and other stone products. It is built to meet a variety of requirements and can be used both inside and outside your workshops and manoeuvred by hand.
The trolley is equipped with 4 wheels, 2 swivel with brake and 2 fixed diameter 250 solid rubber with double ball bearing slide. The base and shoulder of the container are covered with wooden boards.

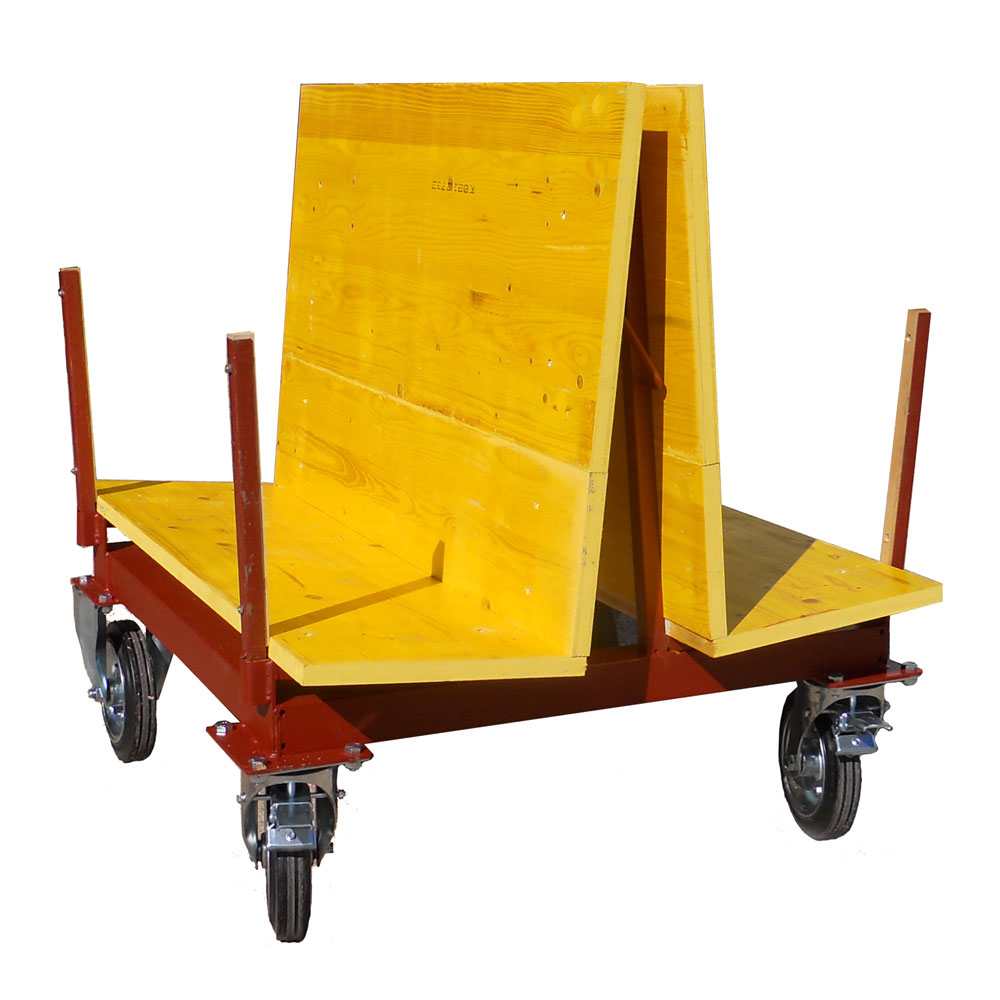

The trolley is built in 1 model or tailored to meet any need. It is also available with galvanizing treatment or painting.

Technical characteristics

  • Base supporting structure in welded steel profiles.
  • Supporting shoulder made of welded steel profiles and sheet metal.
  • Extractable tubular element for holding slabs.
  • Wooden board for material support on the supporting shoulder.
  • Wooden board for supporting material on the base.
  • Tubular welded steel structure connecting shoulders.

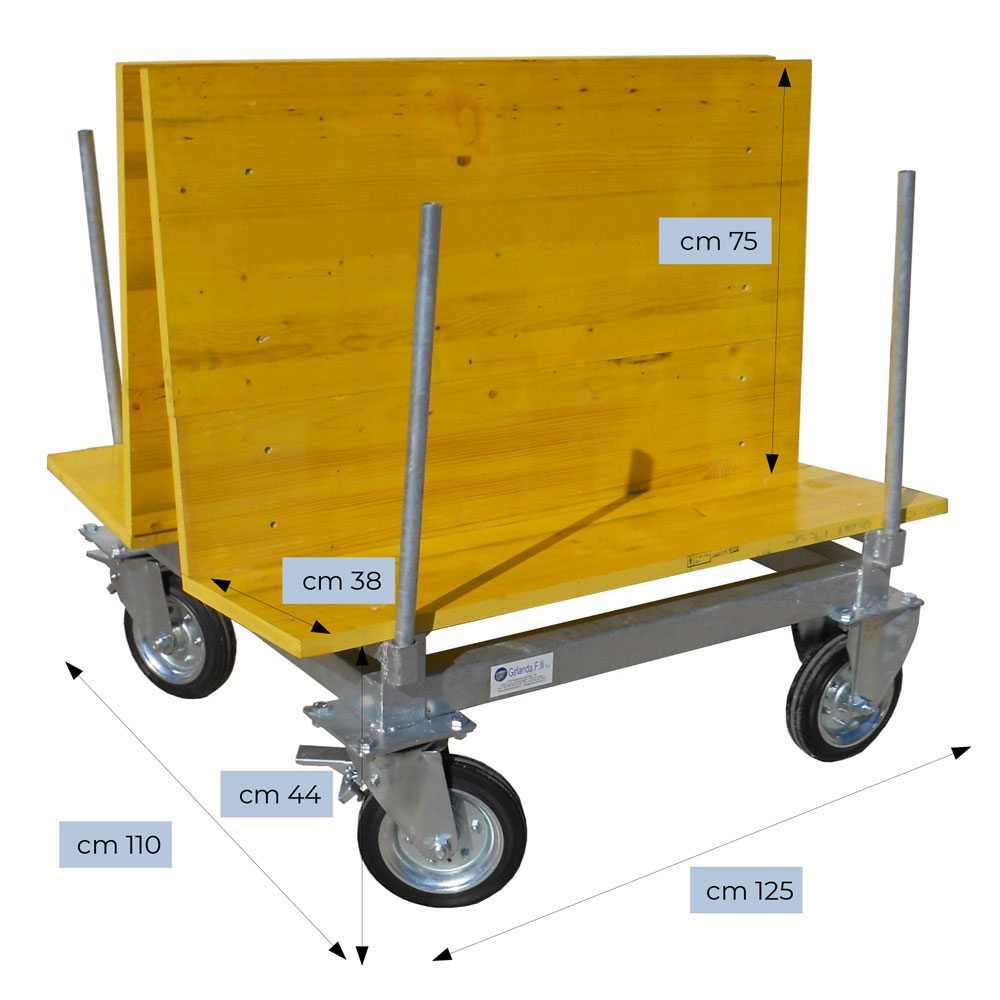

Models and sizes

It is also possible to supply made-to-measure models.

Maximum working load  kg 700
Length  cm 125
External width  cm 100
Useful width  cm 2×37
Total height  cm 115
Shoulder height  cm 75
Height from ground to worktop  cm 52
Wheels diameter  mm 250
Mass  kg 110
