Blind bottom stand with wheels diameter 280

Art.
GF3/A

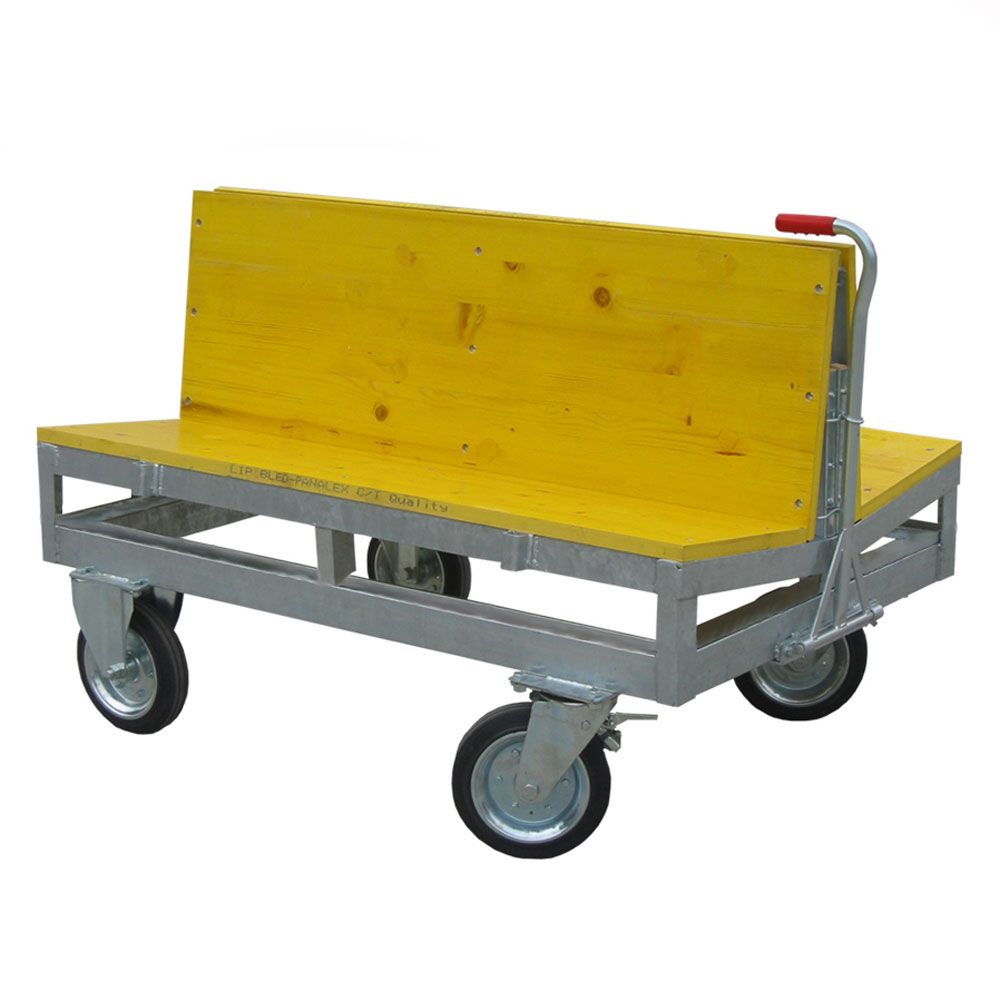

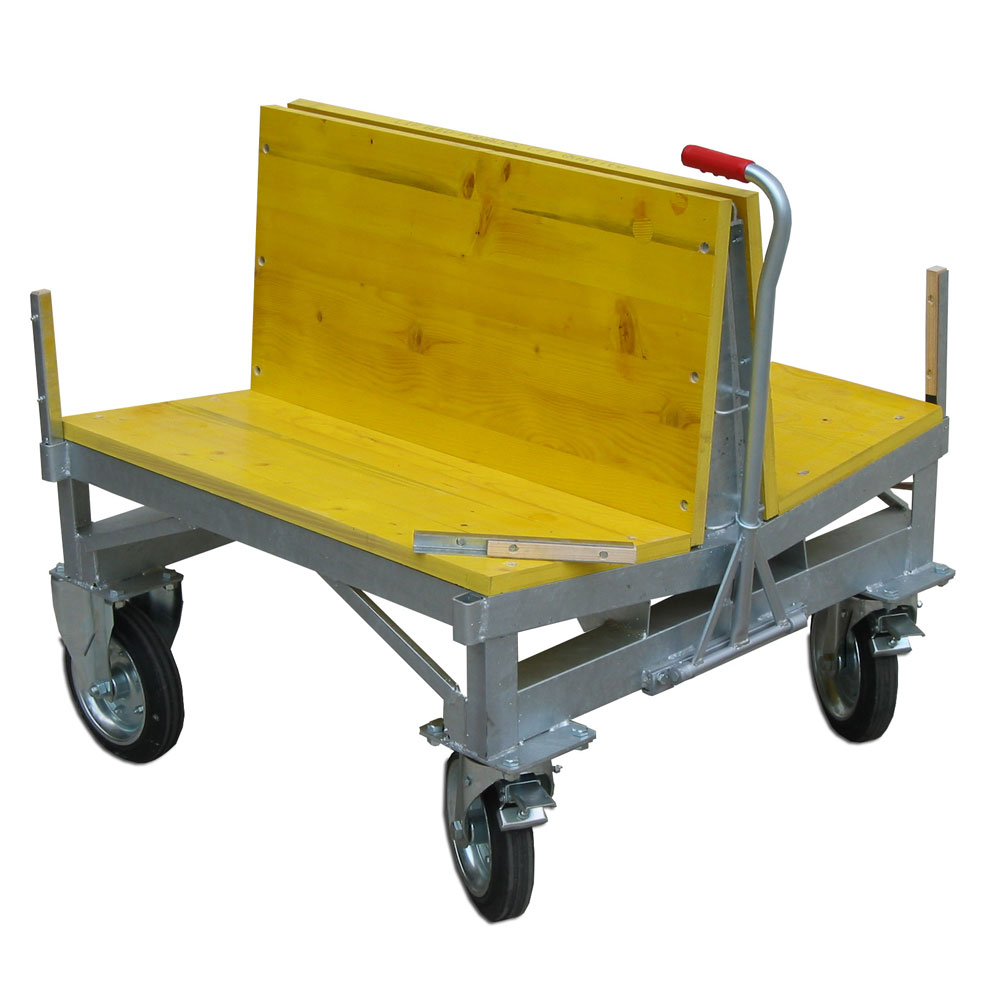

Two-sided trolley with a solid back panel, fitted with 4 dual-component rubber wheels, 2 swivel wheels with brakes and 2 fixed wheels, diameter 280 mm.

Request a quote

Description

The Girlanda Fratelli steel trolley is designed and built to handle small and medium-sized marble workpieces, bathroom tops and kitchen tops or stone slab material resulting from the processing of marble, granite and other stone products. It is built to meet a variety of requirements and can be used both inside and outside your workshops and manoeuvred by hand.
The trolley is equipped with 4 wheels, 2 swivel with brake and 2 fixed wheels diameter 280 mm made of two-component rubber anti-crushing with double ball bearing sliding. The base and shoulder of the container are covered with wooden boards.
The trolley is built in 3 models or made to measure to meet any need. It is also available with galvanizing treatment or painting.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Base supporting structure in welded steel profiles.
  • Supporting shoulder made of welded steel profiles and sheet metal.
  • Extractable tubular element for holding slabs.
  • Wooden board for material support on the supporting shoulder.
  • Wooden board for supporting material on the base.
  • Tubular welded steel structure connecting shoulders.

Models and sizes

The 3 versions available differ in their external dimensions.
It is also possible to supply made-to-measure models.

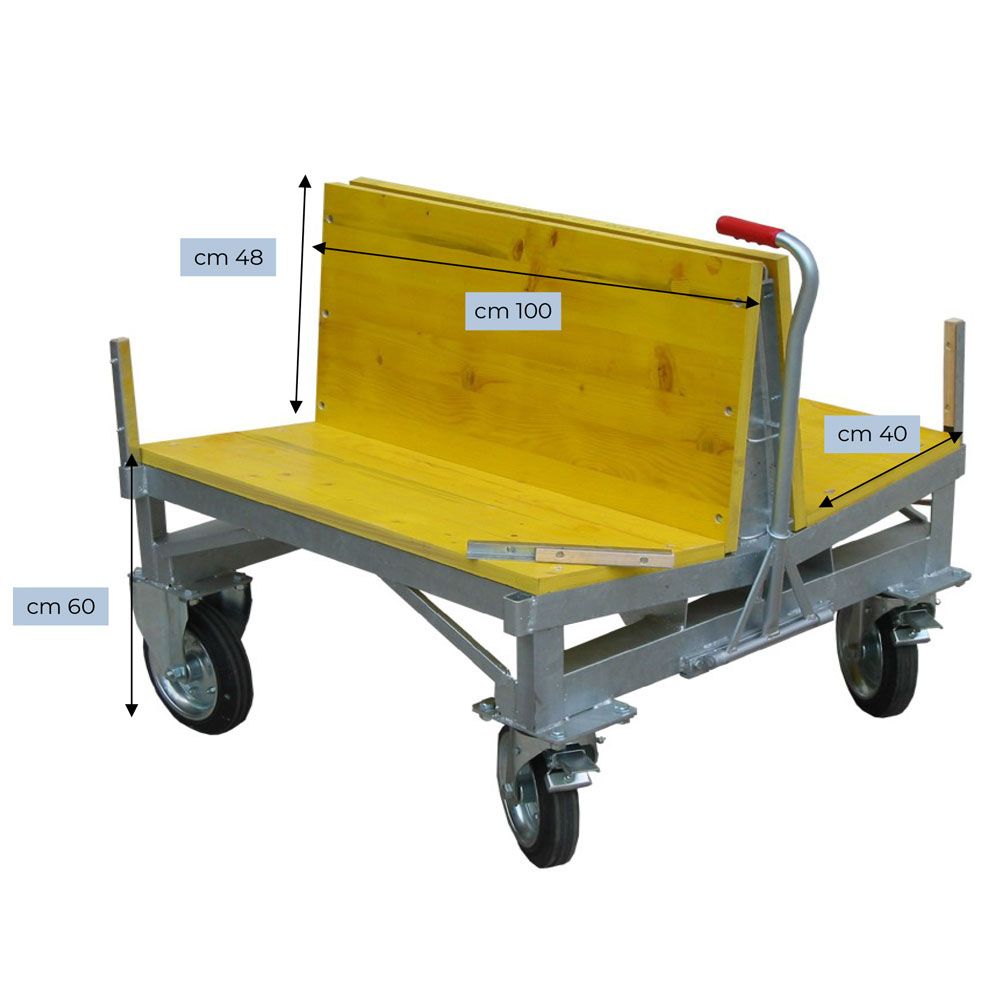

Model 100x100x48h+60h

Maximum working load  kg 1.200
Length  cm 100
External width  cm 100
Useful width  cm 2×40
Total height  cm 110
Shoulder height  cm 48
Height from ground to worktop  cm 60
Wheels diameter  mm 280
Mass  kg 107

Model 100x150x48h+60h

Maximum working load  kg 1.200
Length  cm 150
External width  cm 100
Useful width  cm 2×40
Total height  cm 110
Shoulder height  cm 48
Height from ground to worktop  cm 60
Wheels diameter  mm 280
Mass  kg 130

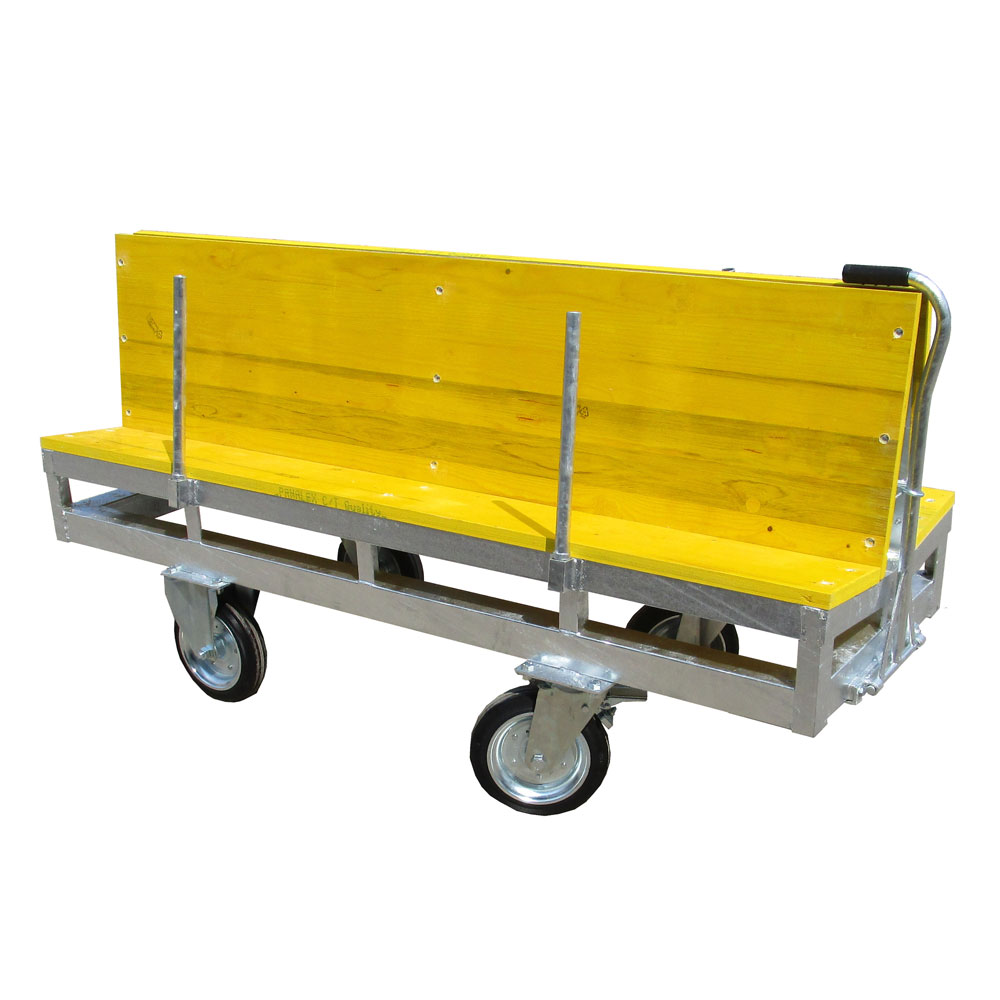

Model 200x75x48h+60h

Maximum working load  kg 1.200
Length  cm 200
External width  cm 75
Useful width  cm 2×25
Total height  cm 110
Shoulder height  cm 48
Height from ground to worktop  cm 60
Wheels diameter  cm 280
Mass  kg 143
