Art. GF23/95

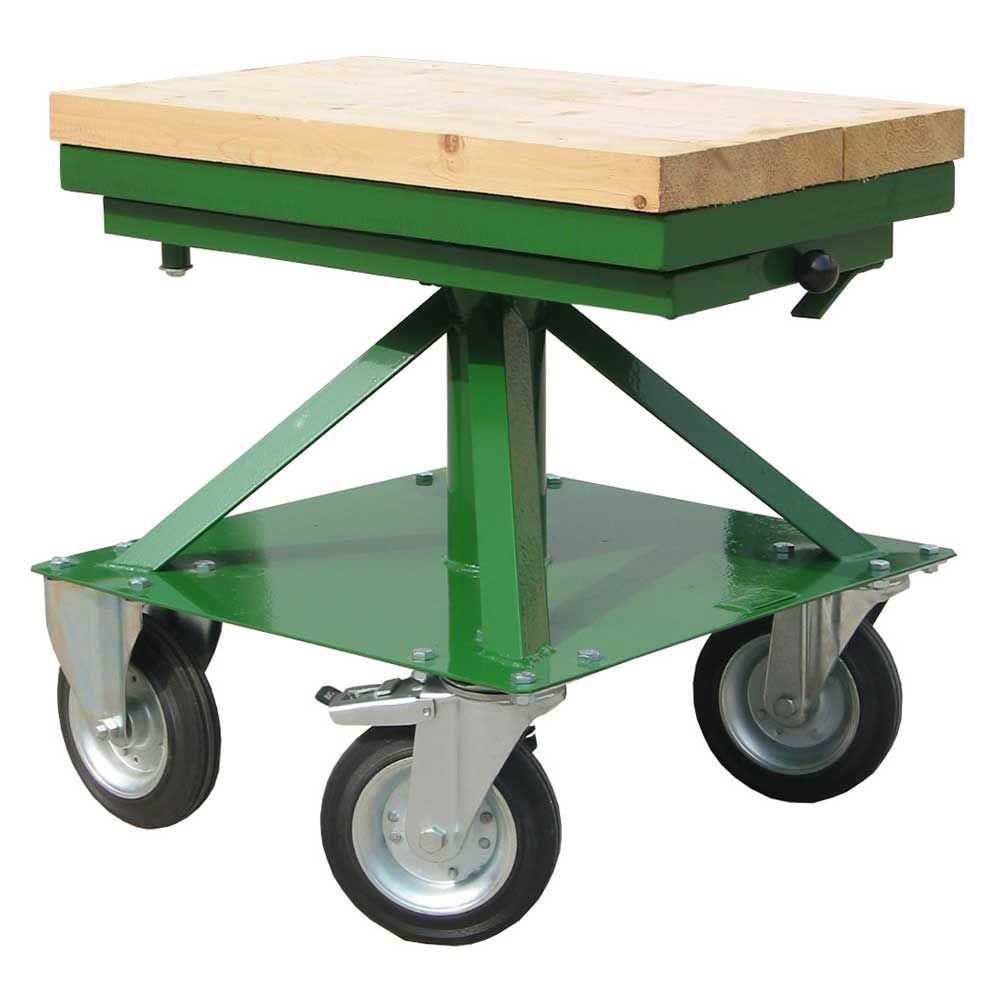

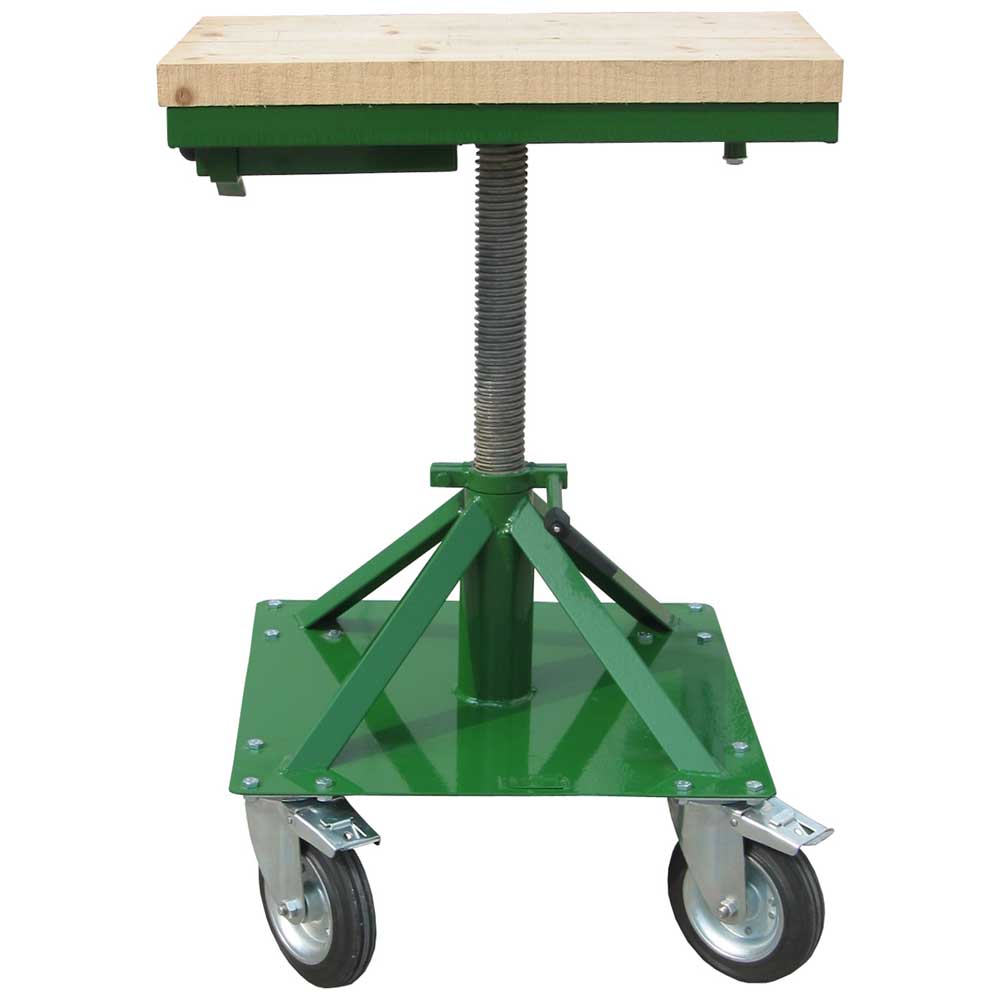

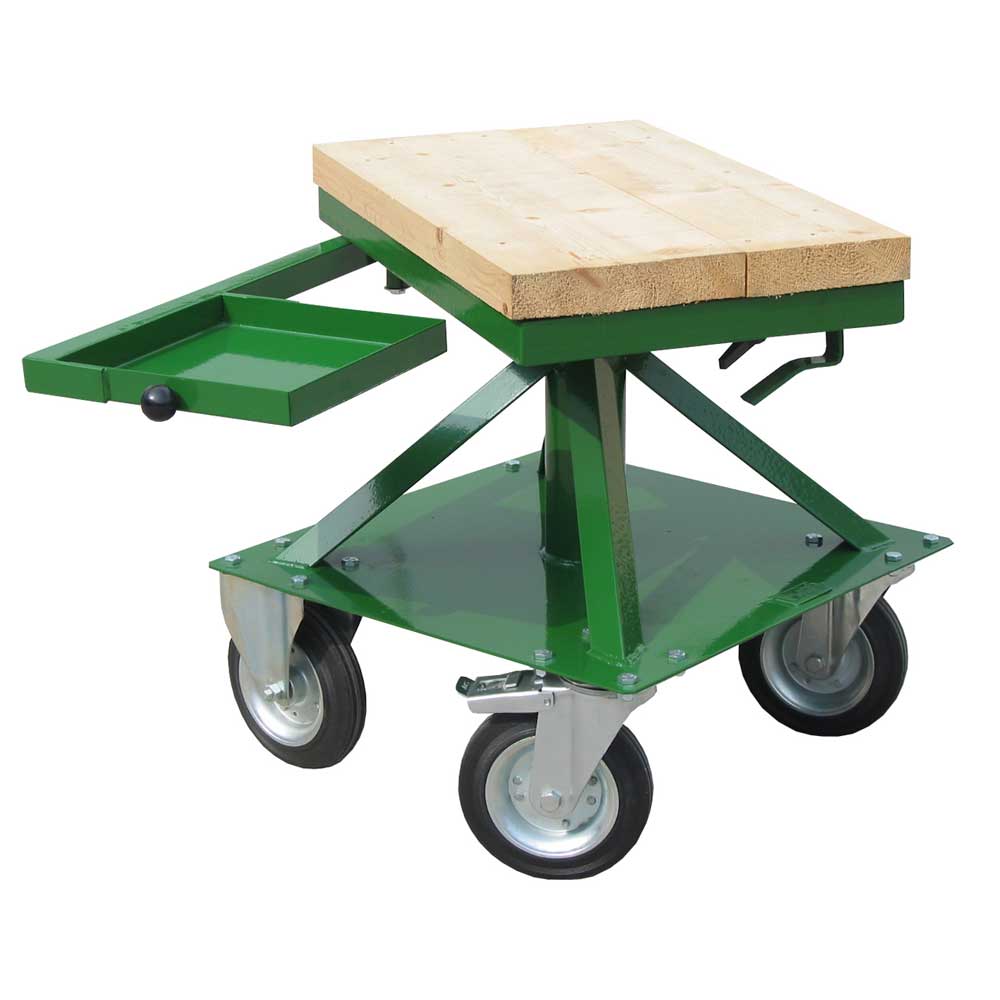

The trolley is an accessory designed and built to lift, handle and work slab loads in stone material.


Description

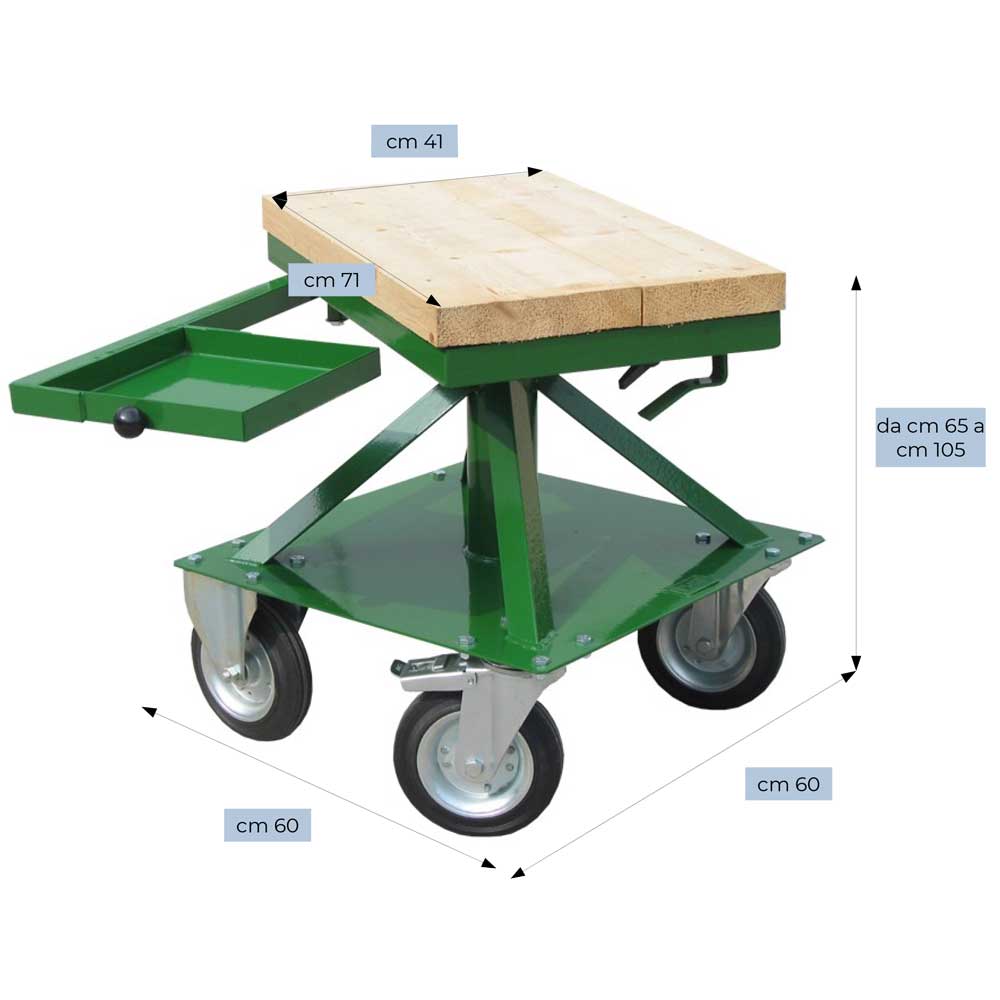

The trolley is adjustable in height from 65 cm to 105 cm, has 4 wheels diam. 200, two swivel with brake and two fixed. The machine is not suitable for lifting and transporting people.
It is available galvanized or painted immersion.
The trolley is built in 1 model or made to measure to meet any need.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic supporting structure in steel profiles
  • Rotating structure in steel profiles
  • Wooden board on the supporting surface
  • 4 wheels diam. 200

Measures and models

Maximum working load daN(~kg)

900

Table length mm

710

Table width mm

410

Base length mm

600

Base width mm

600

Height adjustable min-max mm

650-1050

Wheels diameter mm

200

Mass (weight) kg

60
