Adjustable height bench

Art.
GF23

Trolley adjustable in height from 75 cm to 95 cm using a trapezoidal pin, equipped with two 180 mm diameter wheels.

Request a quote

Description

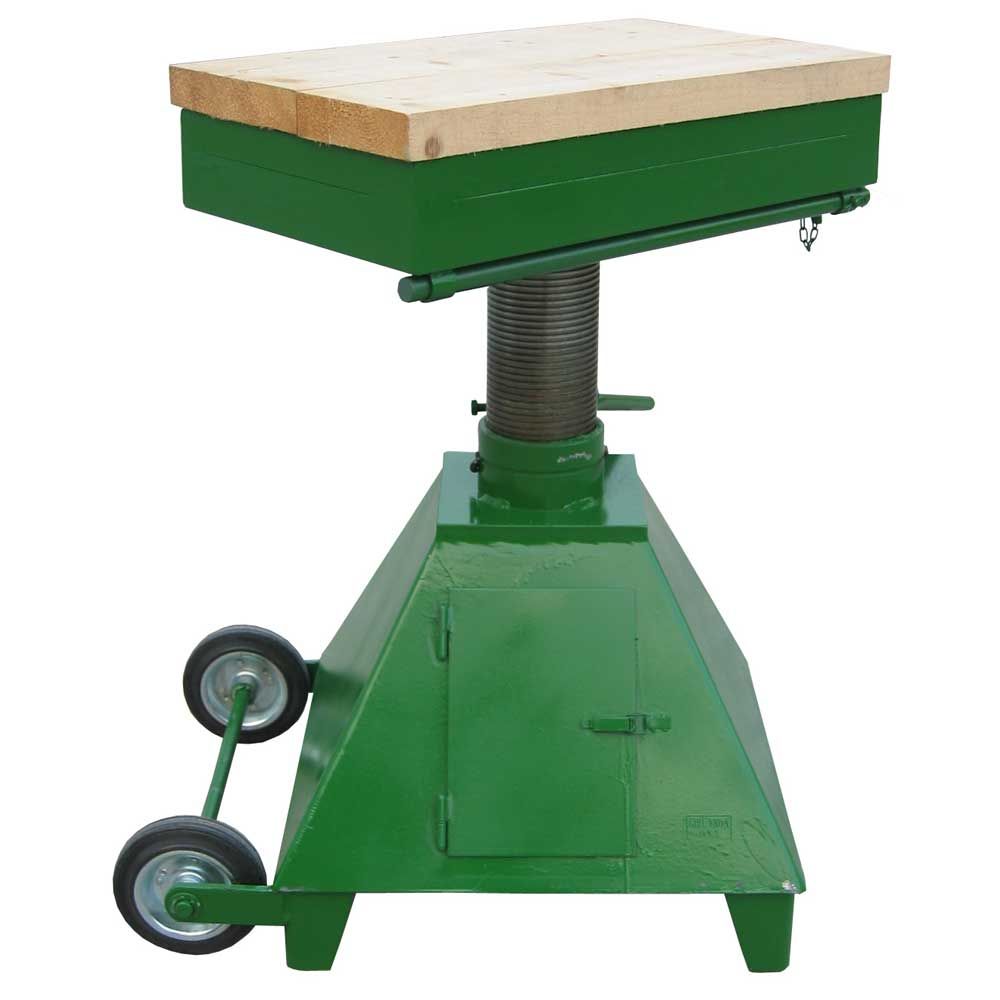

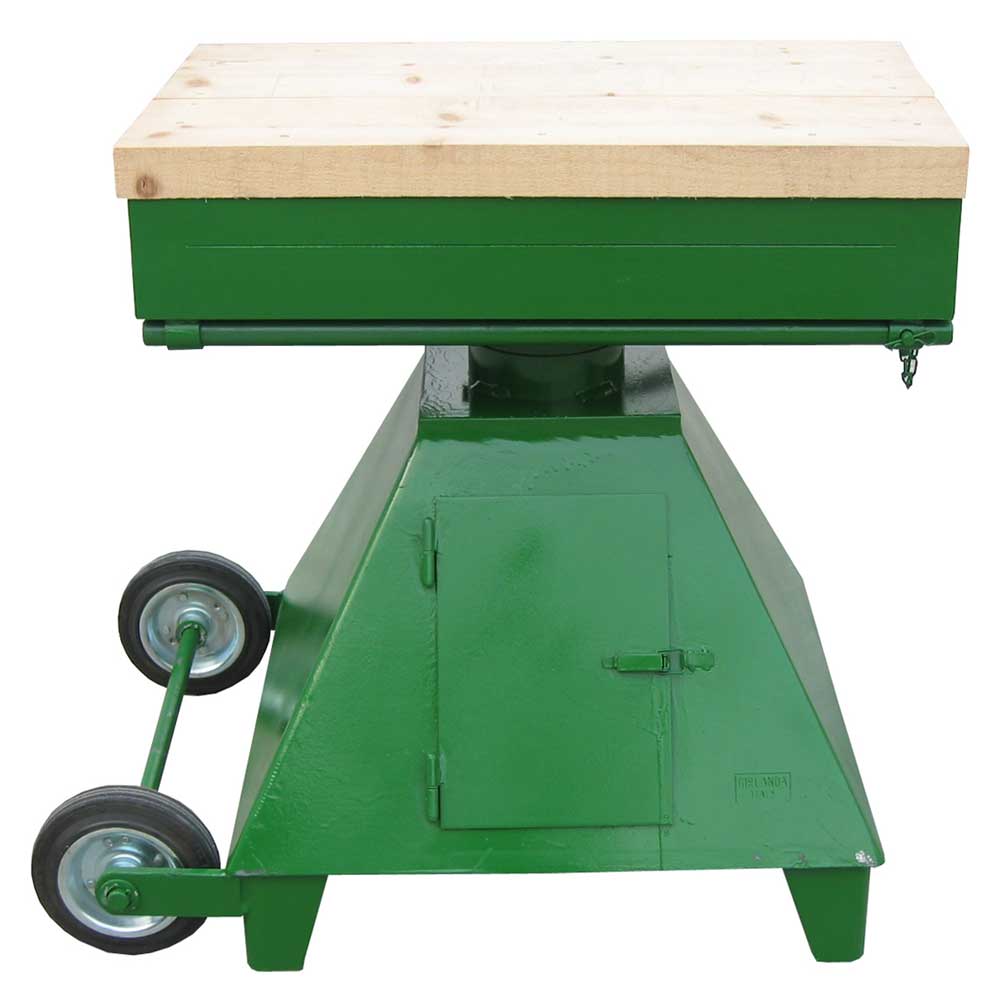

The Girlanda Fratelli bench is an accessory designed and built for working stone material. The bench is adjustable in height from 75 cm to 95 cm, using a trapezoidal pin that allows for continuous height adjustment. Each height and rotation position can be locked in place using a locking mechanism. The bench has 2 wheels diam. 180 mm, for the sole function of moving the bench. The bench is not suitable for lifting and transporting people.
It is available with a painted treatment.
The bench is built in 1 model or made to measure to meet any need.

The product complies with the standards:

  • Machinery Directive 2006/42/CE and following integrations.

Technical characteristics

  • Basic supporting structure in steel profiles.
  • Rotating structure in steel profiles.
  • Trapezoidal pin.
  • Wooden board on the support surface.
  • 2 wheels diam. 180 mm.

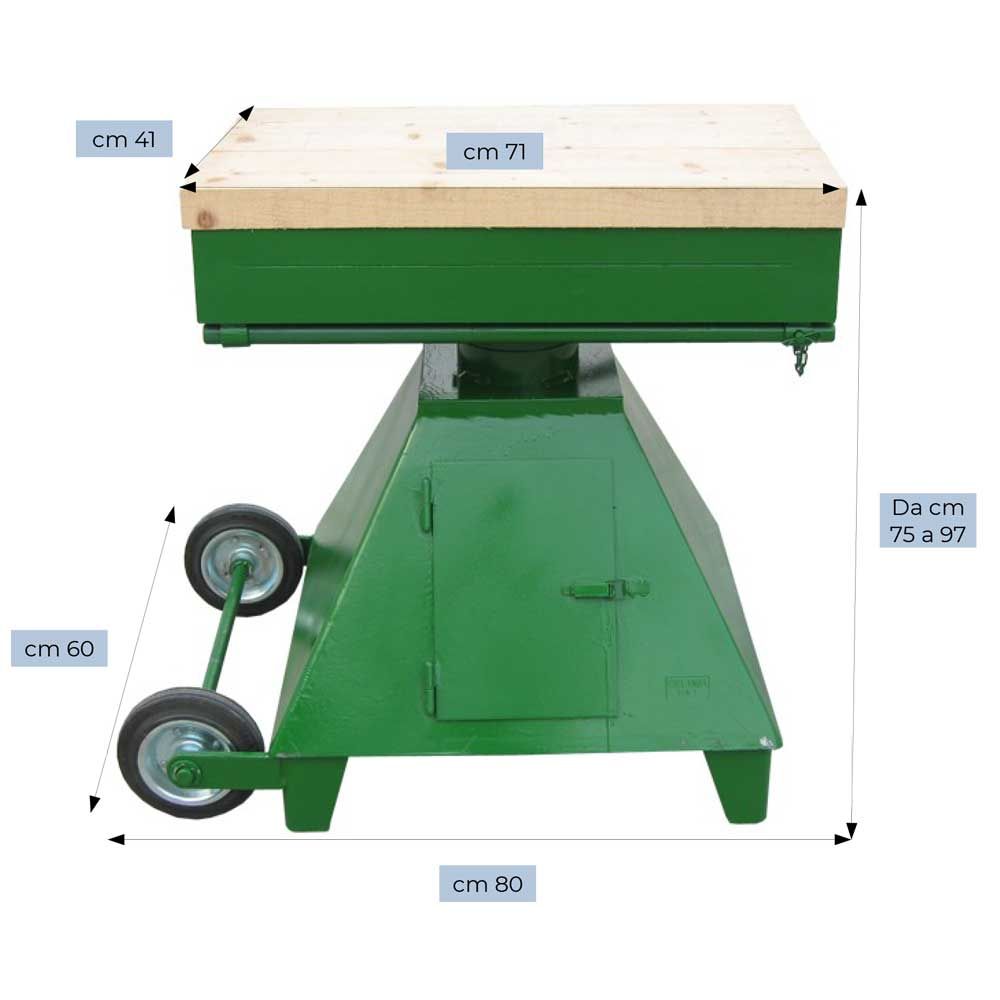

Models and sizes

Maximum working load  kg 1.500
Useful length  cm 71
Useful width  cm 41
Length  cm 80
Width  cm 60
Height adjustable min-max  cm 75 – 95
Wheels diameter  mm 180
Mass  kg 125
