Art. GF15

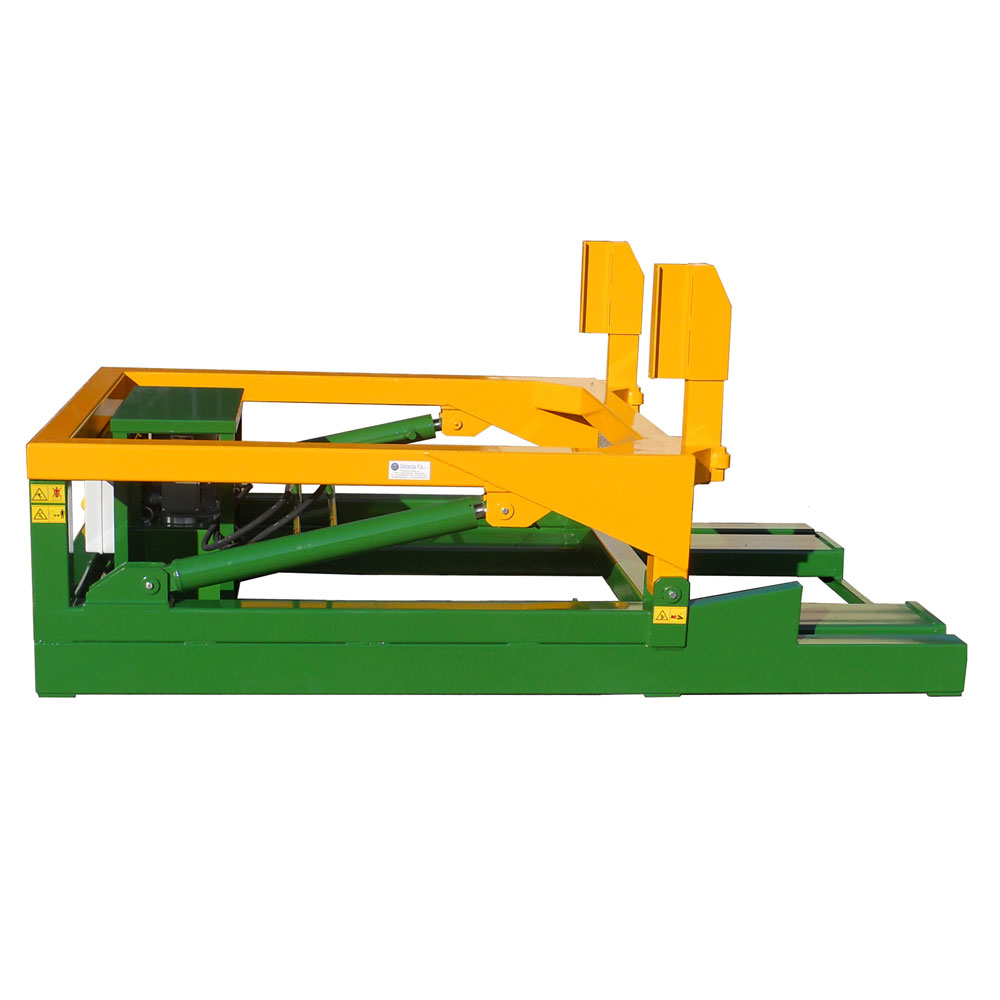

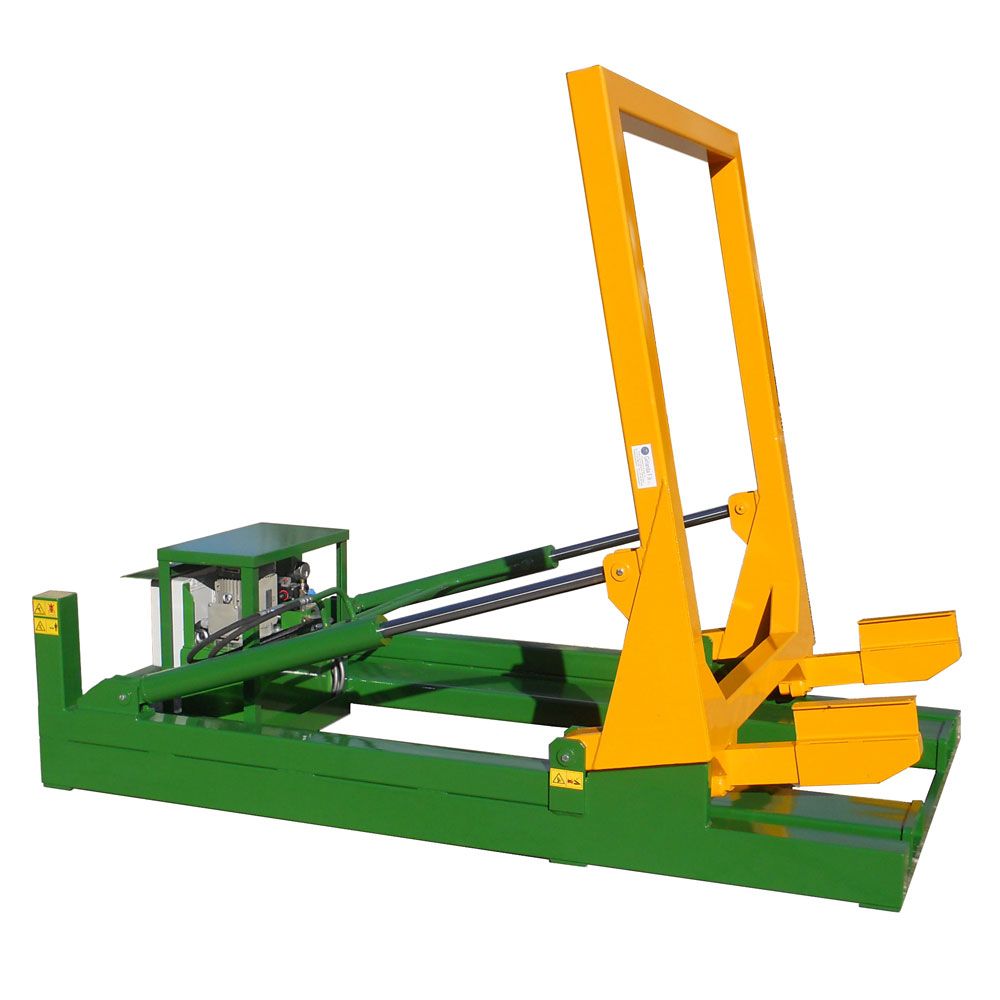

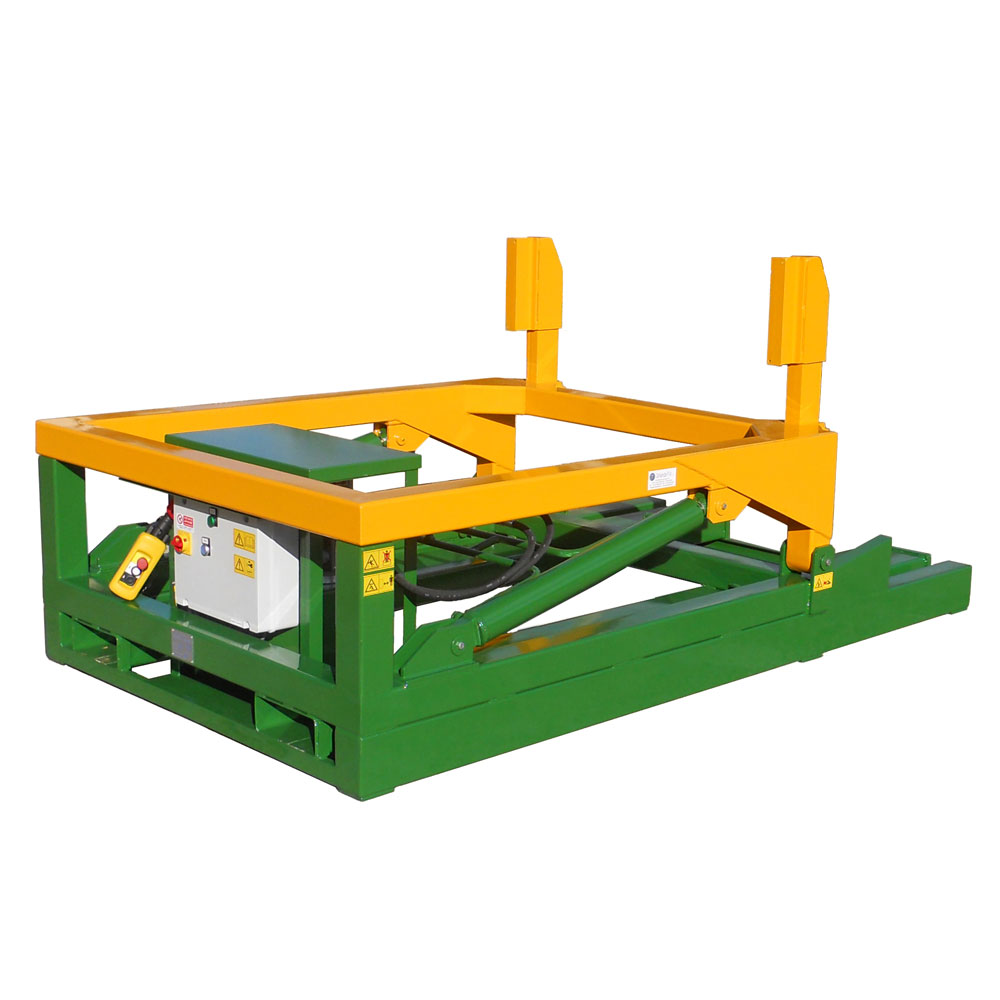

The bench is a machine designed and built for rotating packs of plates


Description

The Girlanda F.lli bench is a machine designed and built for the rotation of packs of slabs. The pack of slabs cannot be placed directly on the mobile frame of the machine: in order to operate, it is essential to use a pallet platform type art. GF15/F or equivalent characteristics, which must be placed on the platform support. The machine is not suitable for lifting persons.
It is available with a coating treatment.

The product complies with the standards:

  • Machinery Directive 2006/42/EC and subsequent supplements.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the Bench is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction manual.

Technical features

  • Basic supporting structure in steel profiles
  • Tilting structure in steel profiles
  • Hydraulic power unit
  • Hydraulic power unit electric panel
  • 2 hydraulic jacks

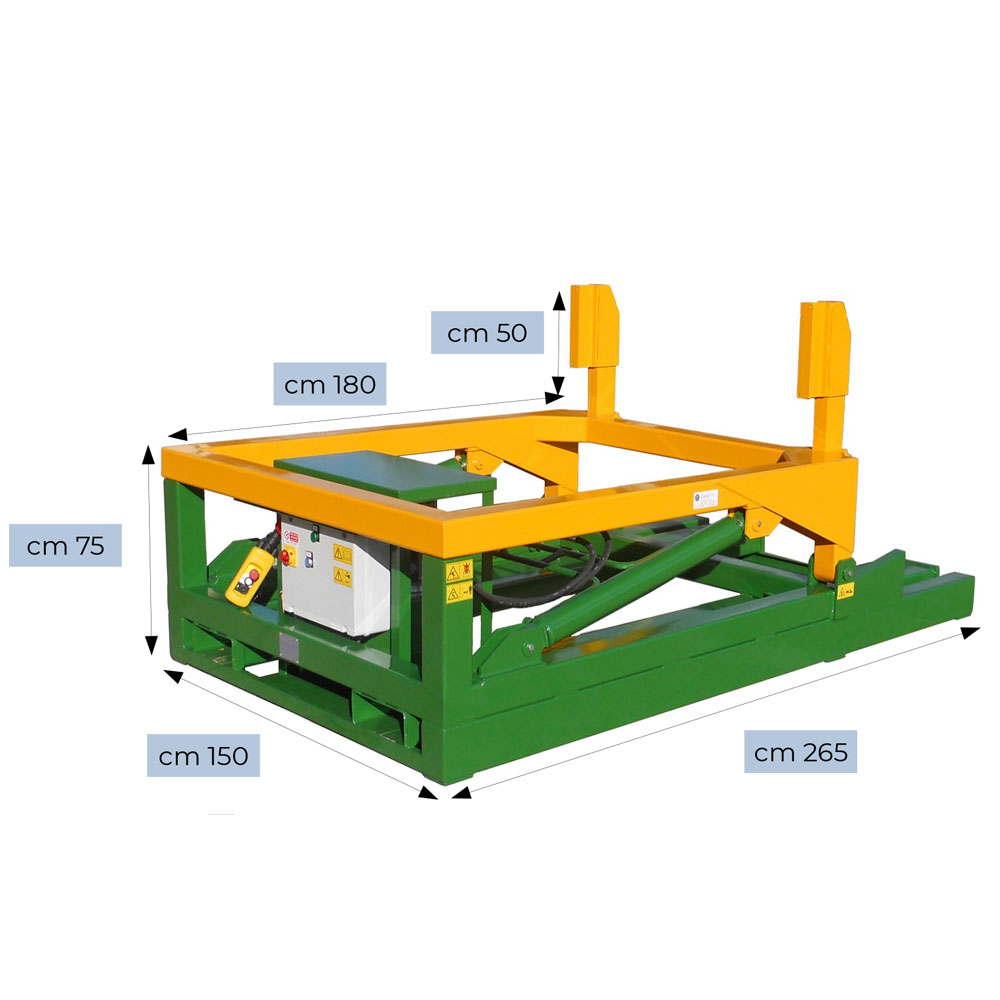

Measures and models

Maximum working load (CMU) daN (kg)

5.000

Max. height (no-load rotating frame dimensions) mm

2.100

Frame base length mm

2.650

Frame base width mm

1.500

Hydraulic circuit operating pressure bar

135

Lowering time of mobile frame at no load sec

25

No-load lifting time of mobile frame sec

36

Power unit electric motor kW

3

Three-phase power supply voltage volts

380

Power supply frequency hertz

50

Auxiliary control circuit voltage volts

24

Mass (weight) kg

 710
