Upper stand for slab transport
Description

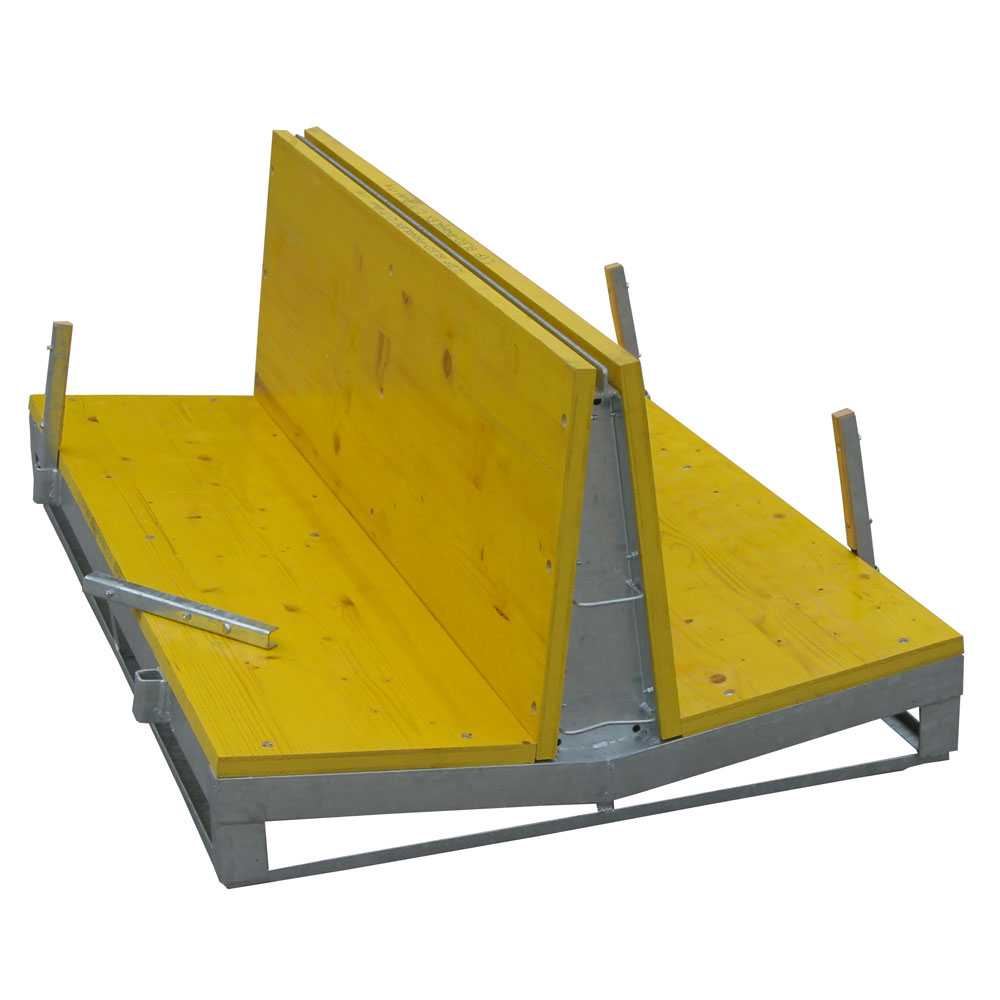

The iron container Girlanda F.lli is an accessory designed and built for handling small and medium sized workpieces, bathroom tops and kitchen countertops or slab material of marble, granite and other stone products.
The base and shoulder of the container are covered with wooden boards. It is built to meet the various needs and can be used inside and outside of your laboratories.

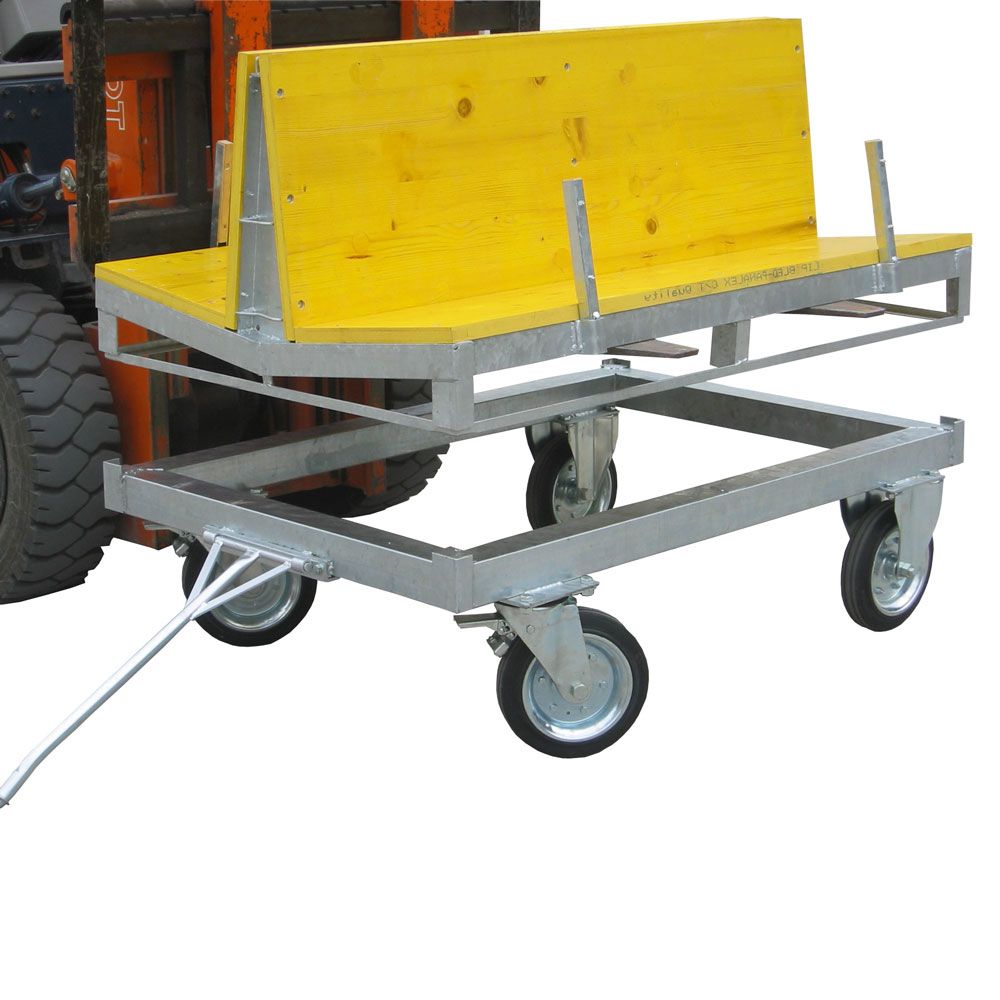

Thanks to the base with wheels (art GF/TI) the stand can be moved manually.
The container is built in 4 models or made to measure to meet any need. It is also available with galvanizing treatment or immersion painting.
Technical features
- Base supporting structure made of welded steel profiles.
- Supporting shoulder made of welded steel profiles and sheet metal.
- Extractable tubular element for holding slabs.
- Wooden board for supporting material on the supporting shoulder.
- Wooden board for supporting material on the base.
Measures and models
The 4 versions available differ in their external dimensions.
It is also possible to supply made-to-measure models.

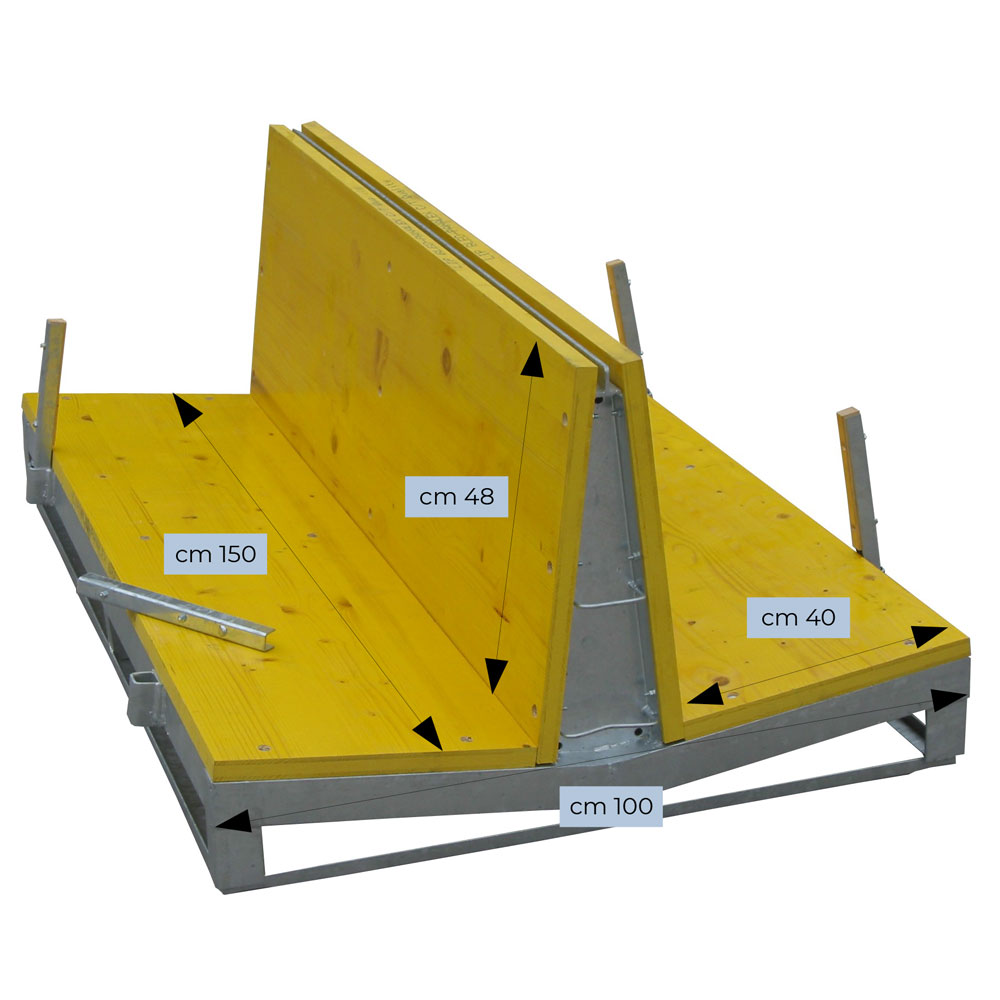

Model 100x150x48h
Maximum use load daN (~kg): |
1500 |
Length mm |
1500 |
Base width mm |
1000 |
Useful load width mm |
2×400 |
Total height mm |
630 |
Shoulder height mm |
480 |
Table height mm |
180 |
Mass (weight) kg |
79 |
Model 75x200x48h
Maximum use load daN (~kg): |
1500 |
Length mm |
2000 |
Base width mm |
750 |
Useful load width mm |
2×250 |
Total height mm |
630 |
Shoulder height mm |
480 |
Table height mm |
180 |
Mass (weight) kg |
83 |

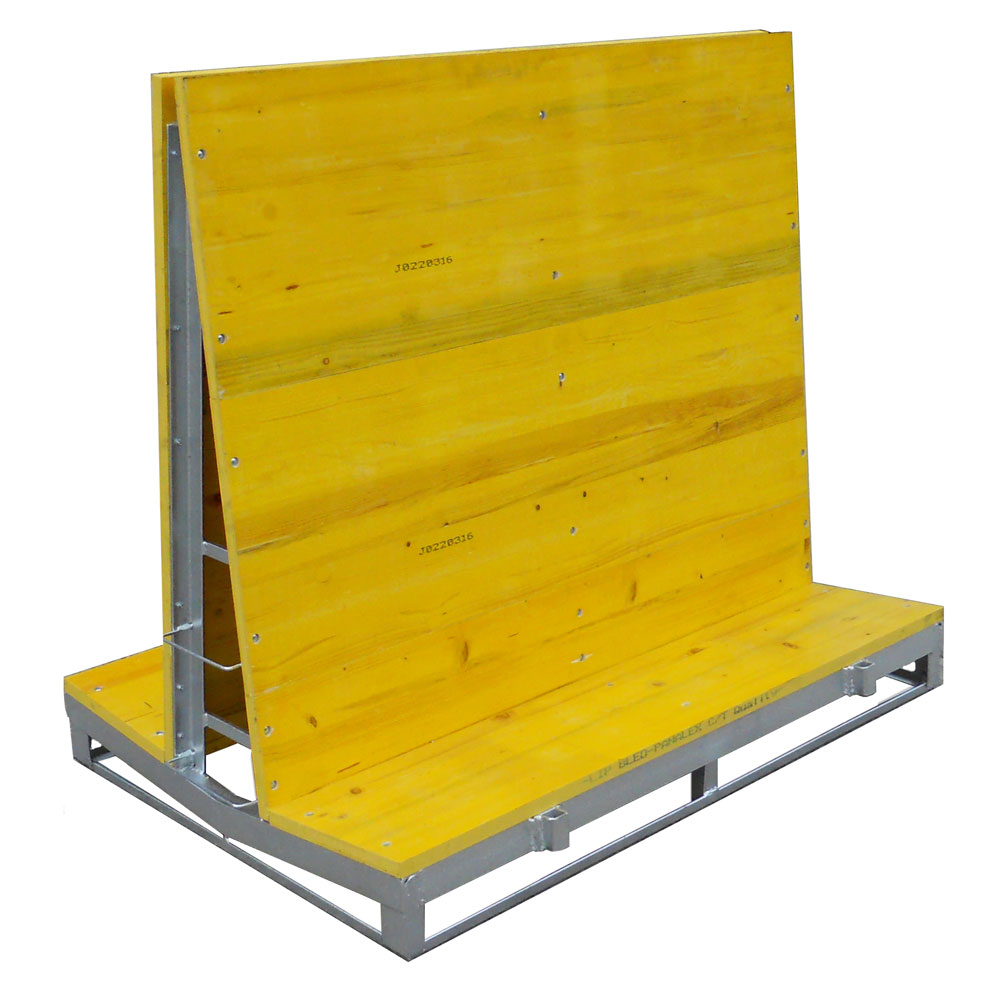

Model 100x150x120h
Maximum use load daN (~kg): |
1500 |
Length mm |
1500 |
Base width mm |
1000 |
Useful load width mm |
2×340 |
Total height mm |
1320 |
Shoulder height mm |
1180 |
Table height mm |
180 |
Mass (weight) kg |
110 |
Model 75x200x120h
Maximum use load daN (~kg): |
1500 |
Length mm |
2000 |
Base width mm |
750 |
Useful load width mm |
2×190 |
Total height mm |
1320 |
Shoulder height mm |
1180 |
Table height mm |
180 |
Mass (weight) kg |
115 |
