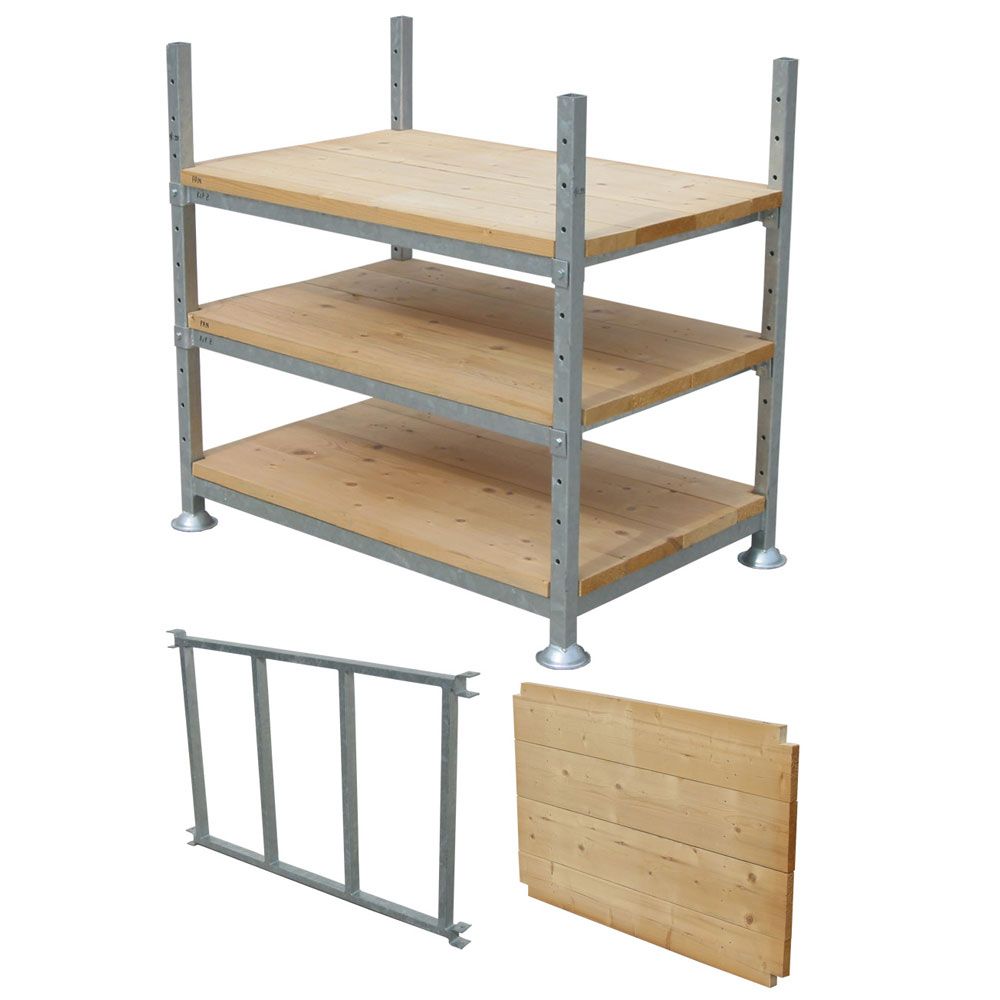

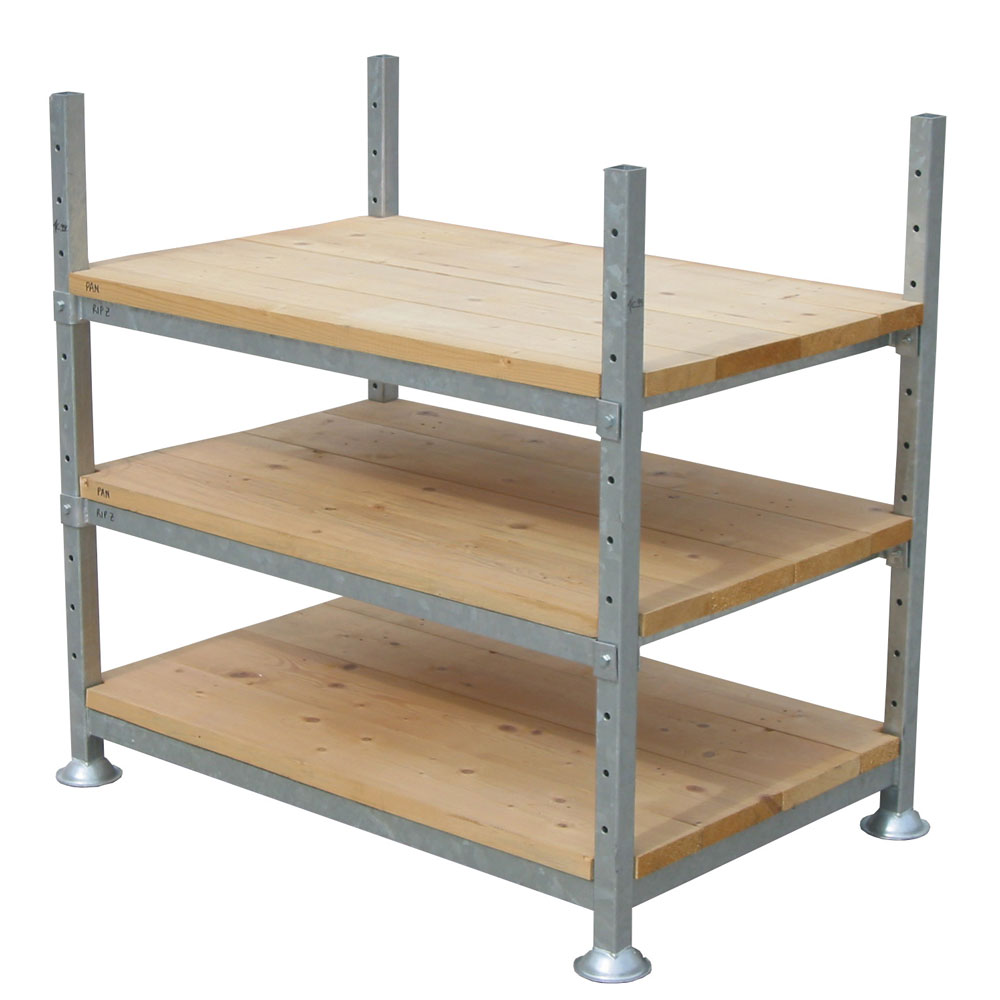

Steel stackable container

Art. GF1/C99

The Container is an accessory, designed and built to handle or store small and medium size loads.


Description

The steel container Girlanda F.lli Il consists of several shelves movable to interlocking with pin for fixing. It is built to satisfy the various requirements for storage and can be used and operated with a self-propelled forklift truck. The container is built in a model or tailored to meet any need.
The container has been foreseen to be stacked in stack on more orders, you can stack up to 2 loaded containers (with flat floor, cemented and sheltered from the wind) or 4 empty containers.
It is also available with hot-dip galvanizing or immersion painting treatment.

The product complies with the standards:

  • Machinery Directive 2006/42/EC and subsequent supplements.

Technical characteristicse

  • Basic load-bearing structure in welded tubular steel sections.
  • Upright perimeter structure.
  • Supporting foot bowl.
  • Removable steel shelf
  • Wooden removable panel

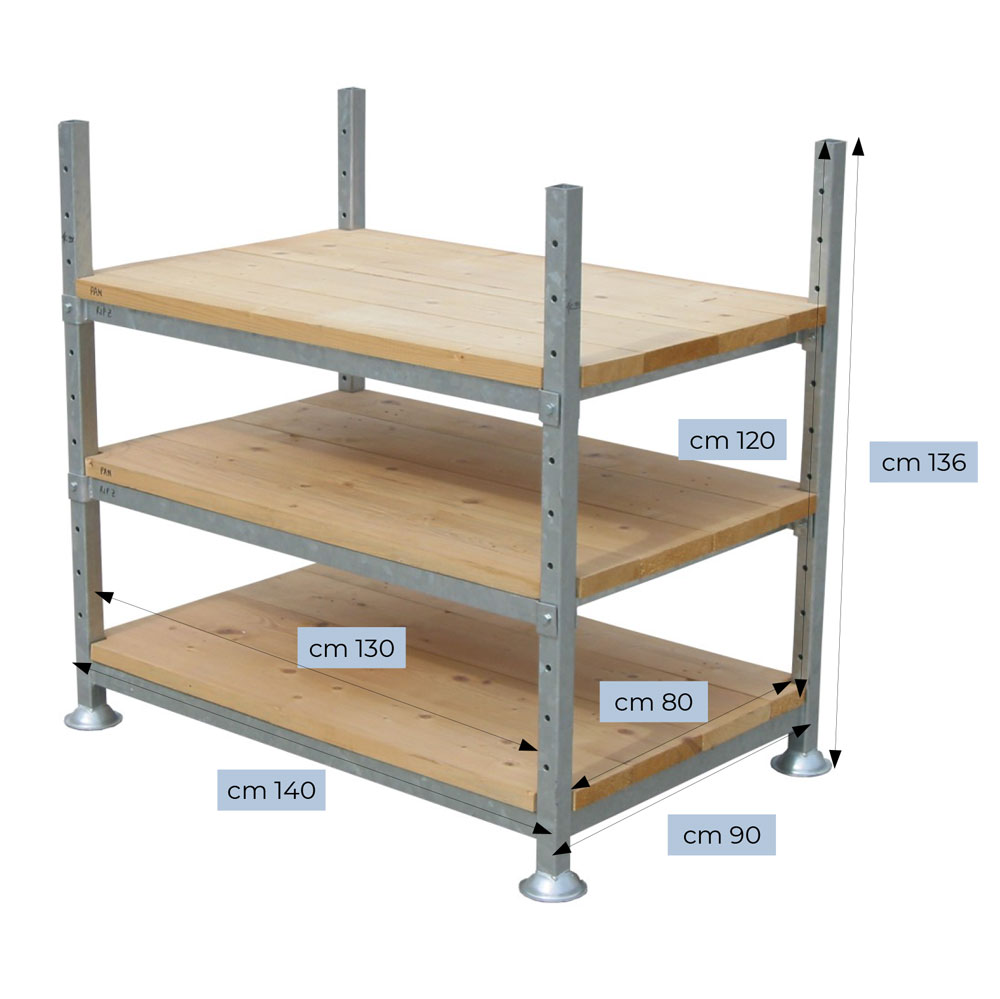

Measures and models

Only one model is available for this product, it is also possible to provide custom models.

Model 130x80x136 H

Maximum working load daN(~kg)

2000

Length mm

1400

Width mm

900

Height H mm

1360

Useful internal length mm

1300

Useful internal width mm

800

Useful height H1 mm

1200

Max. stackable containers in loading height

2

Max. stackable containers in empty height

4

Mass (weight) without shelves kg

52

GF RIP Steel shelf kg

16

GF PAN Wooden panel Kg

25
