Steel container for marble with removable side panel

Art. GF1/B

Container with removable side, covered with wooden boards, specially suitable for kitchen tops, bathroom tops, marble stairs, floors or stone slab material.


Description

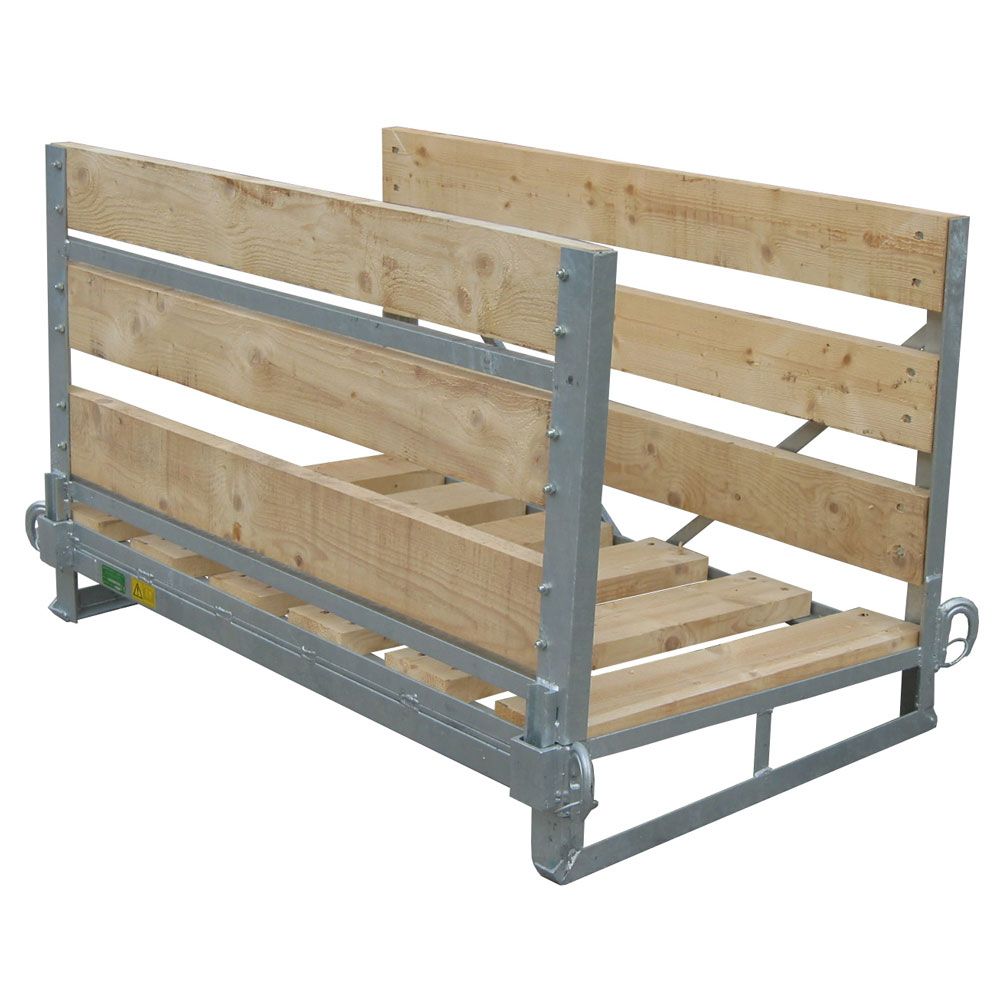

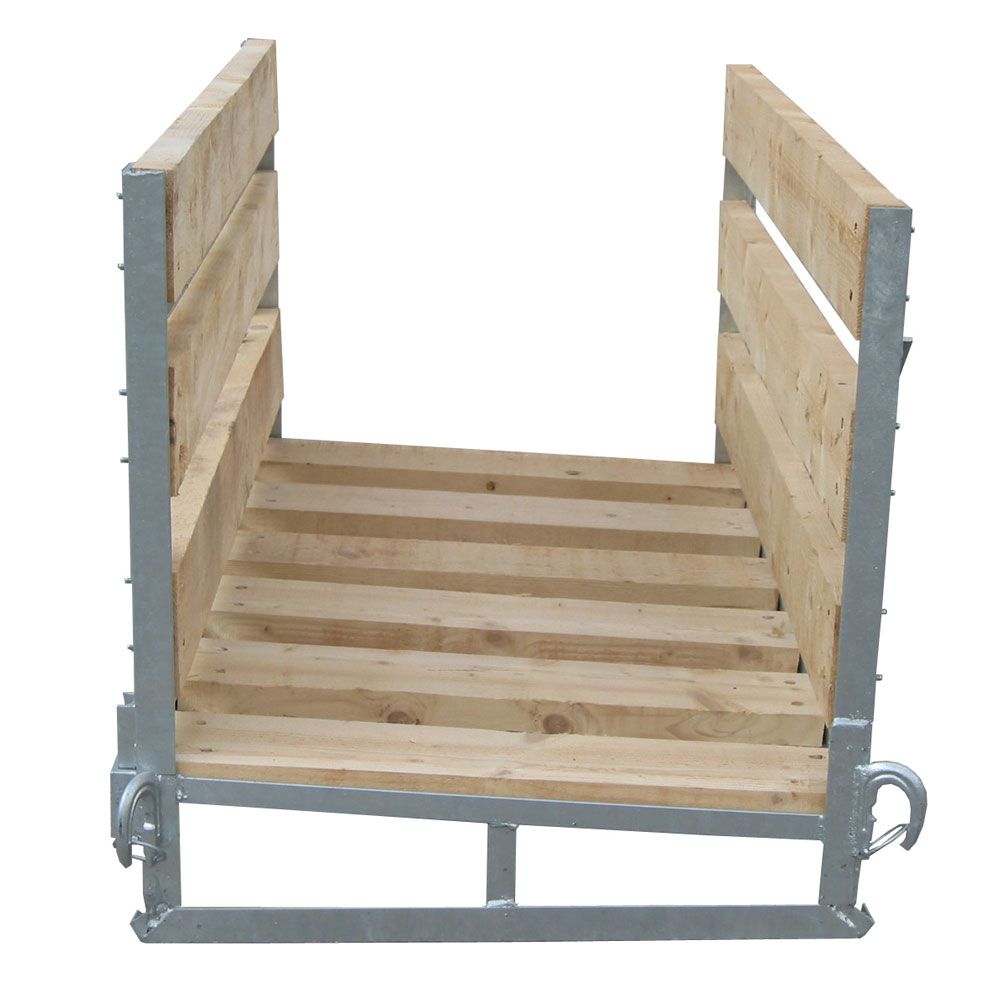

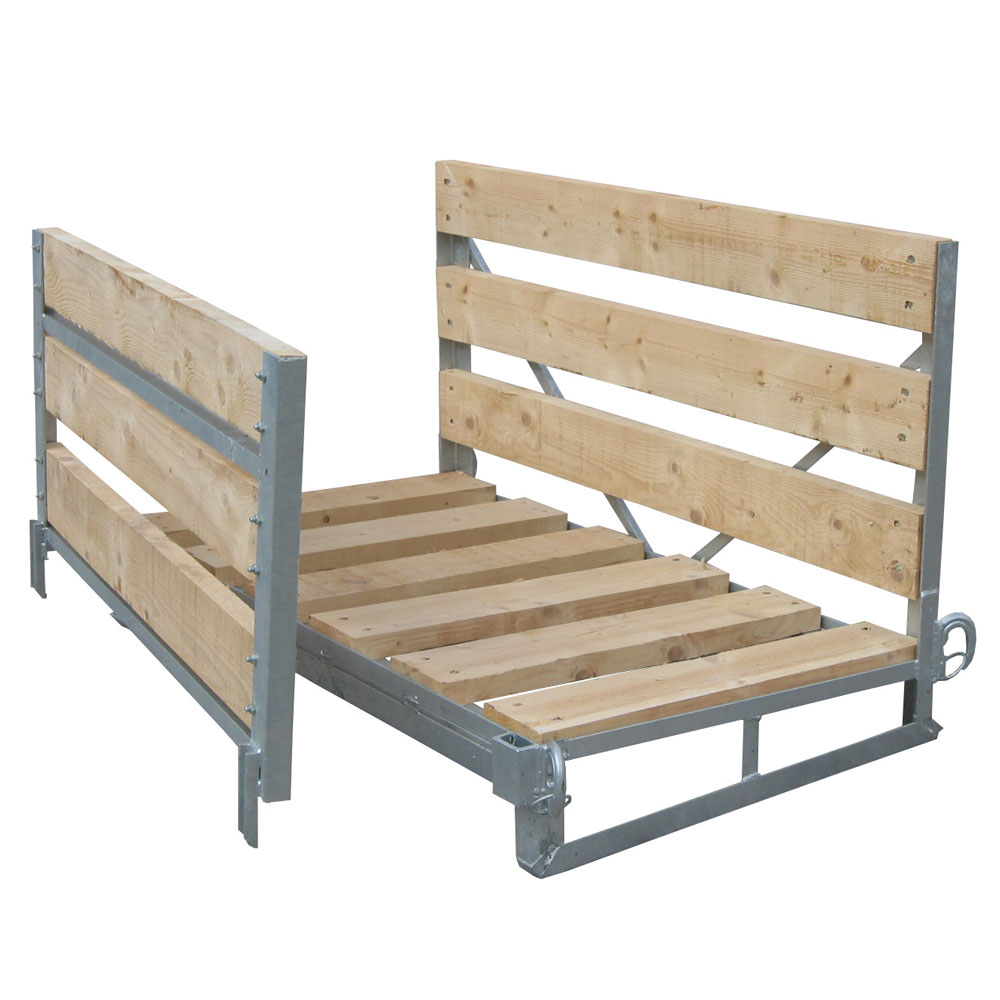

The Girlanda F.lli Steel Container is an accessory with removable sideboard equipped with wooden boards both on the base and on the walls. Equipped with 4 hooks for lifting by crane.
The container can be used and manoeuvred with a self-propelled forklift truck or with a lifting device. It is built in two versions with different overall dimensions and can be custom made to meet any requirement.
It is also available with hot-dip galvanizing treatment or immersion painting.

The product complies with the standards:

  • Machinery Directive 2006/42/CE and subsequent integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic load-bearing structure made of welded steel profiles.
  • Basic side elements made of welded steel profiles.
  • Fixed side structure upright made of welded steel profiles.
  • Lateral hook for lifting attachment.Snap
  • -hook ring for rope retention, mounted on each side hook.
  • Spruce wood support board on the fixed side.
  • Spruce wood support board on the base structure.
  • Removable frame upright in welded steel profile.
  • Lower part of the dismountable upright, shaped with bayonet coupling.
  • Smooth fir wood support board on the removable tailgate.

Measures and models

Only one model is available for this product, it is also possible to provide custom models.

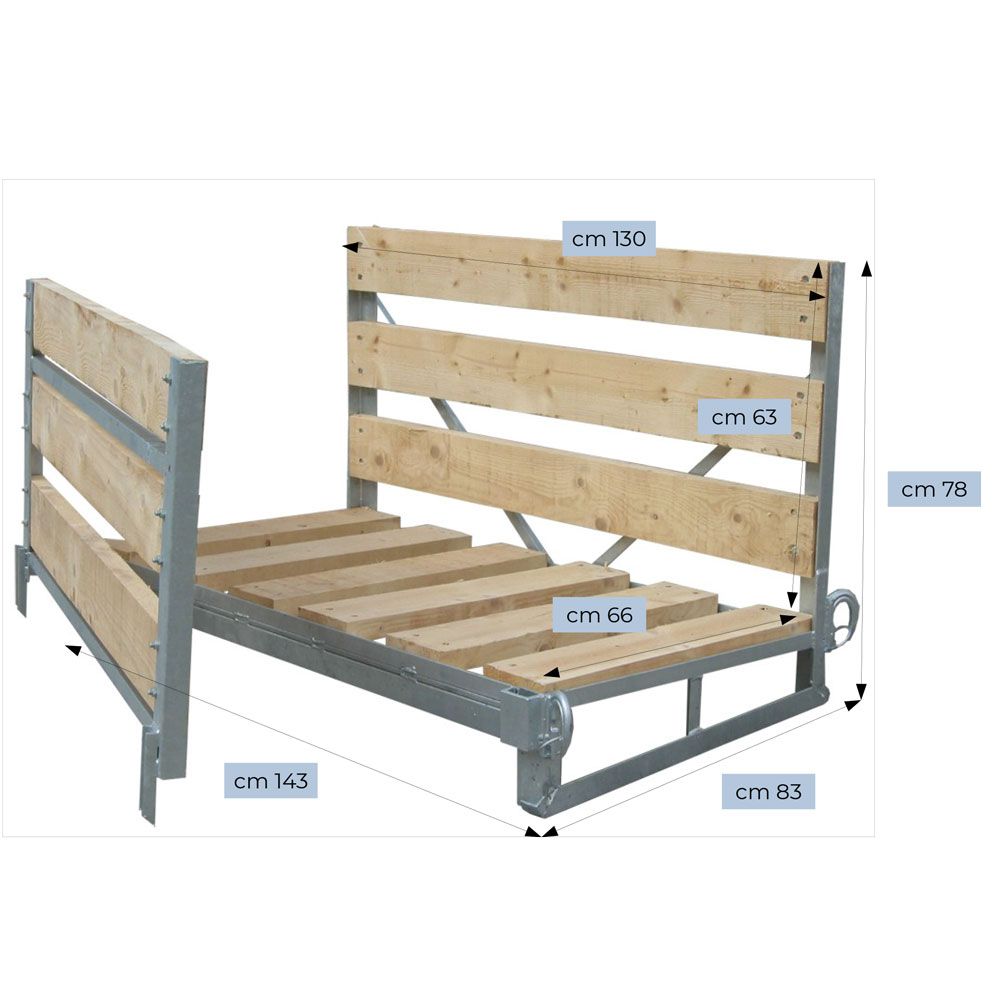

Model 130x65x66 h

Maximum working load daN(~kg)

 2000

Length (A) mm

1300

Base width mm

750

Useful width mm

660

Height mm

770

Useful internal height mm

600

Quantity of boards on walls

3 + 3

Quantity of boards on base

6
