Steel container for marble with fixed sideboard

Art. GF2/S

Single-sided sloped container, with top and side covered with wood planks, especially suitable for kitchen tops, bathroom tops


Description

The Girlanda F.lli Steel Container is an accessory, designed and built to lift, handle or store slab loads, especially suitable for marble slabs or slab stone material, especially suitable for kitchen tops, bathroom tops.  The container is covered with wooden boards on both the base and the wall. The Container is equipped with 4 hooks for lifting by crane.
The container can be used and operated with a self-propelled forklift truck or with a lifting device.
The Container is built in 2 models, which differ essentially in their overall dimensions and load capacity. It can also be supplied made to measure to meet any requirement.
It is also available with hot-dip galvanizing treatment or immersion painting.

The product complies with the following standards:

  • Machinery Directive 2006/42/CE and subsequent integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic load-bearing structure in welded steel profiles.
  • Side structure upright in welded steel profiles.
  • Removable post opposite the side in welded tubular steel section.
  • Tubular element for coupling a removable post, welded to the base.
  • Lateral hook for lifting attachment.
  • Smooth fir wood support board on the side.
  • Fir wood support board on the base structure.
  • Snap-hook ring for rope retention, mounted on each side hook.

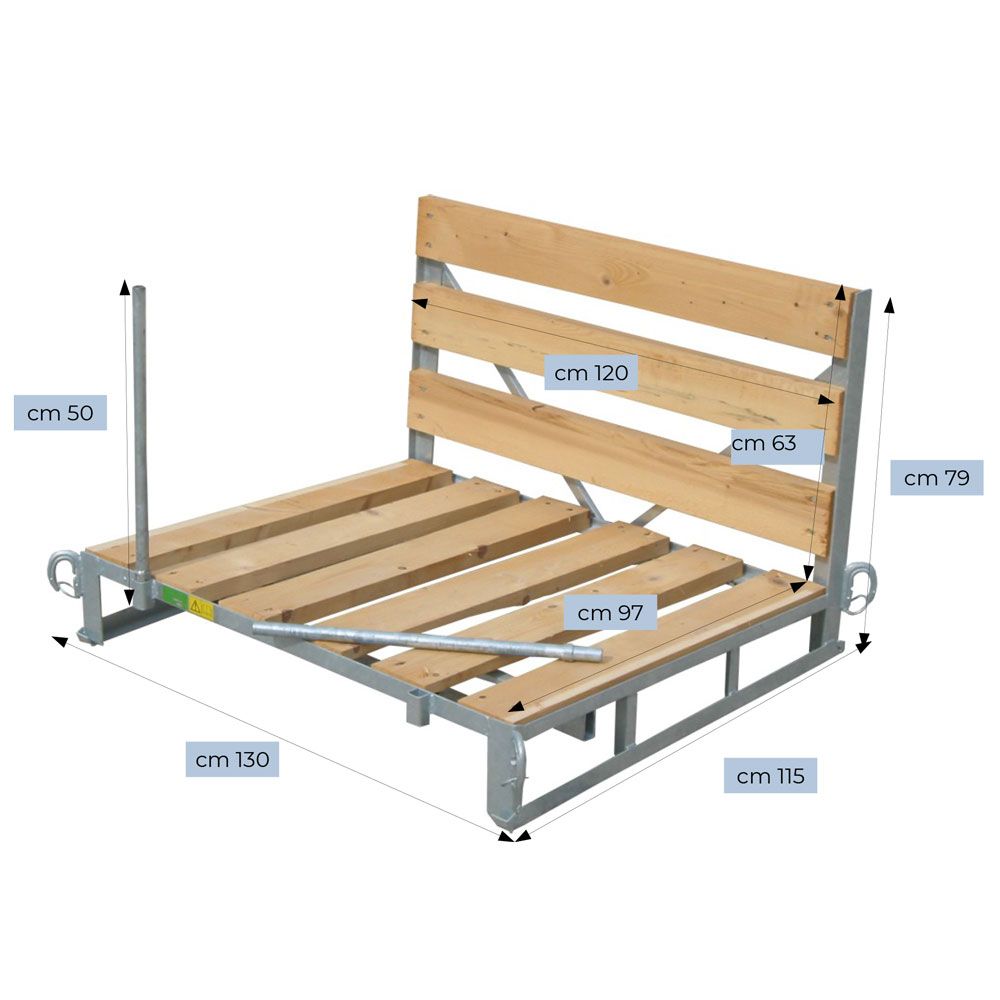

Measures and models

The 2 versions available differ in their external dimensions.
It is also possible to supply customized models.

Model 120x95x60 h

Maximum working load daN(~kg)

 2000

Length (A) mm

1200

Width at the base (B) mm

1040

Useful width (B1) mm

970

Height (H) mm

790

Useful internal height (H1) mm

615

Mass (weight) kg

70

Model 200x80x60 h

Maximum working load daN(~kg)

 2000

Length (A) mm

2000

Width at the base (B) mm

870

Useful width (B1) mm

800

Height (H) mm

790

Useful internal height (H1) mm

615

Mass (weight) kg

95
