Stackable steel container for marble with removable side panel

Art. GF1/A

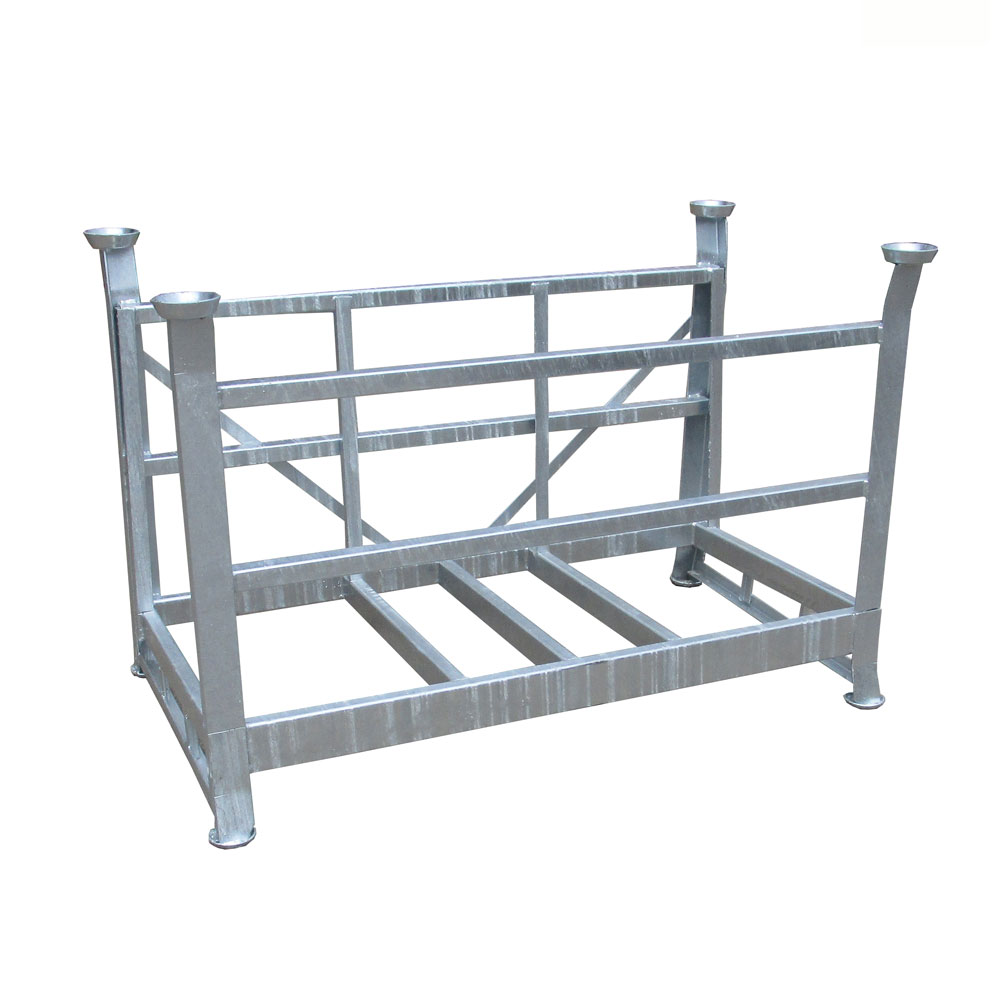

Container with removable tailboard and lateral reinforcements, designed and built to store or handle slab-shaped loads, especially suitable for marble or slab-shaped stone material strips.


Description

The Girlanda F.lli Steel Container is an accessory equipped with a removable tailboard to facilitate the loading and unloading of materials. The Container is equipped with lateral reinforcements and 4 hooks for lifting with a crane, it can be used and handled with a self-propelled forklift truck or with a lifting device.
The Container is built in 3 different models, which differ essentially in their overall dimensions and load capacity, or made to measure to meet any need.

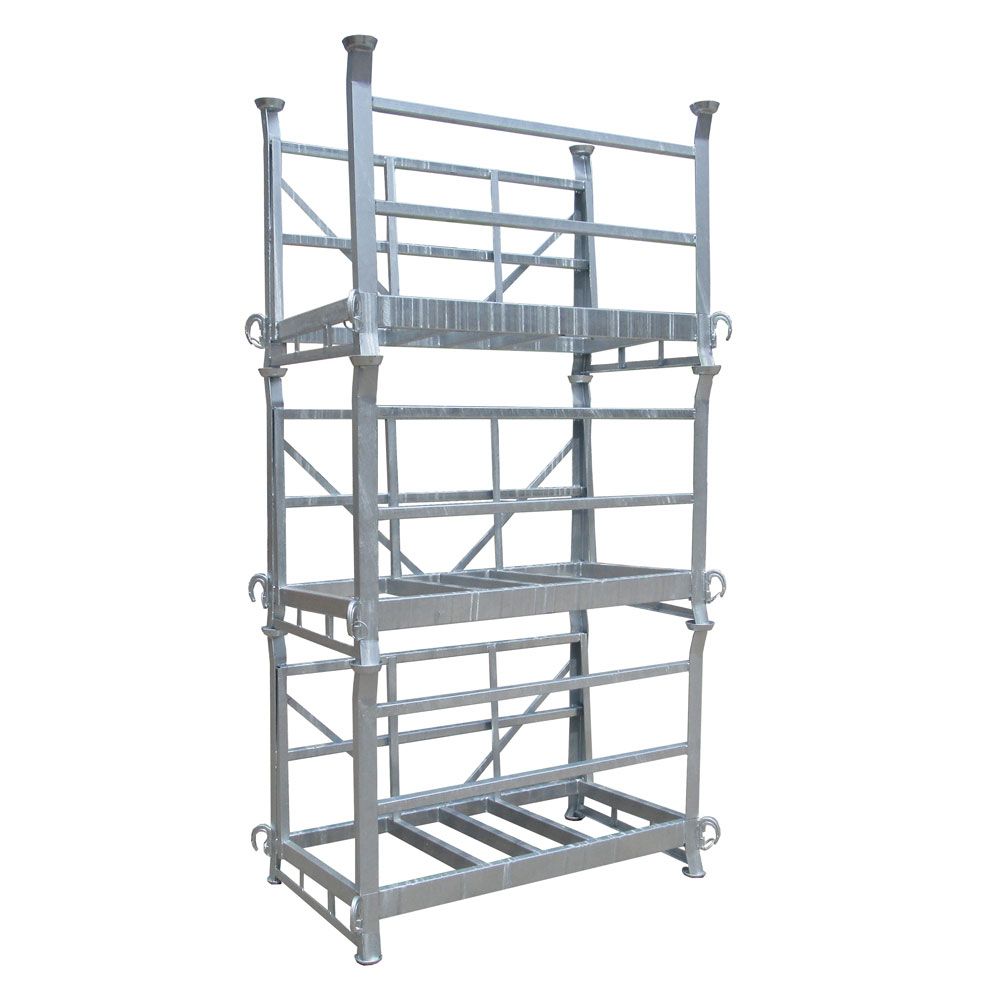

The container has been designed to be stacked in stacks on several orders, you can stack up to 3 loaded containers (with flat floor, cemented and sheltered from the wind), 5 empty containers.

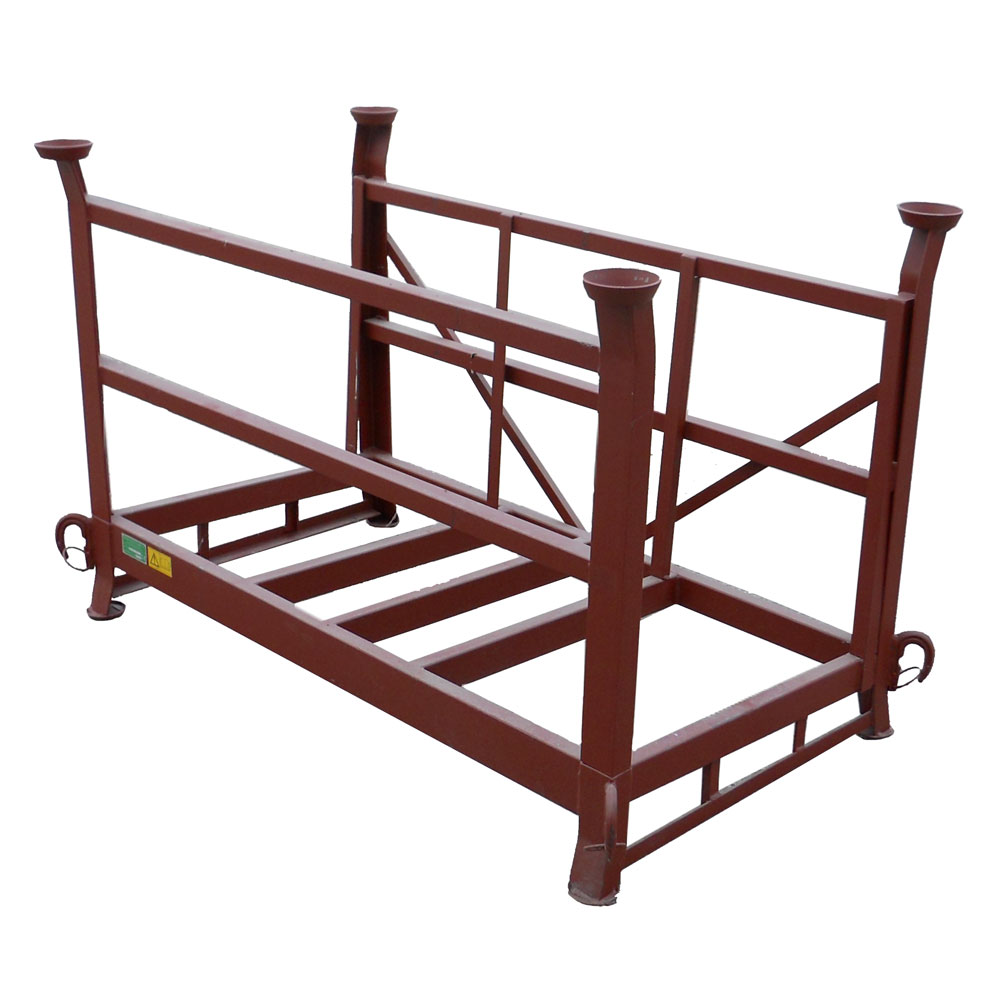

It is also available with hot-dip galvanizing or immersion painting treatment.

The product complies with the regulations:

  • Machinery Directive 2006/42/EC and subsequent integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.W
  • hen placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic load-bearing structure made of welded steel profiles.
  •  Fixed side panel made of welded steel profiles.
  •  Transversal reinforcing elements of the base made of welded steel profiles.
  •  Lower bowl for foot support.
  • Upper bowl for foot support.
  • Removable welded steel profile tailgate.
  •  Lateral hook for lifting attachment.
  • Snap-hook ring for rope retention, mounted on each side hook.

Optional

  • Central rail with 9 round holes and 1 round post 78 cm high, covered with rubber to separate the materials.

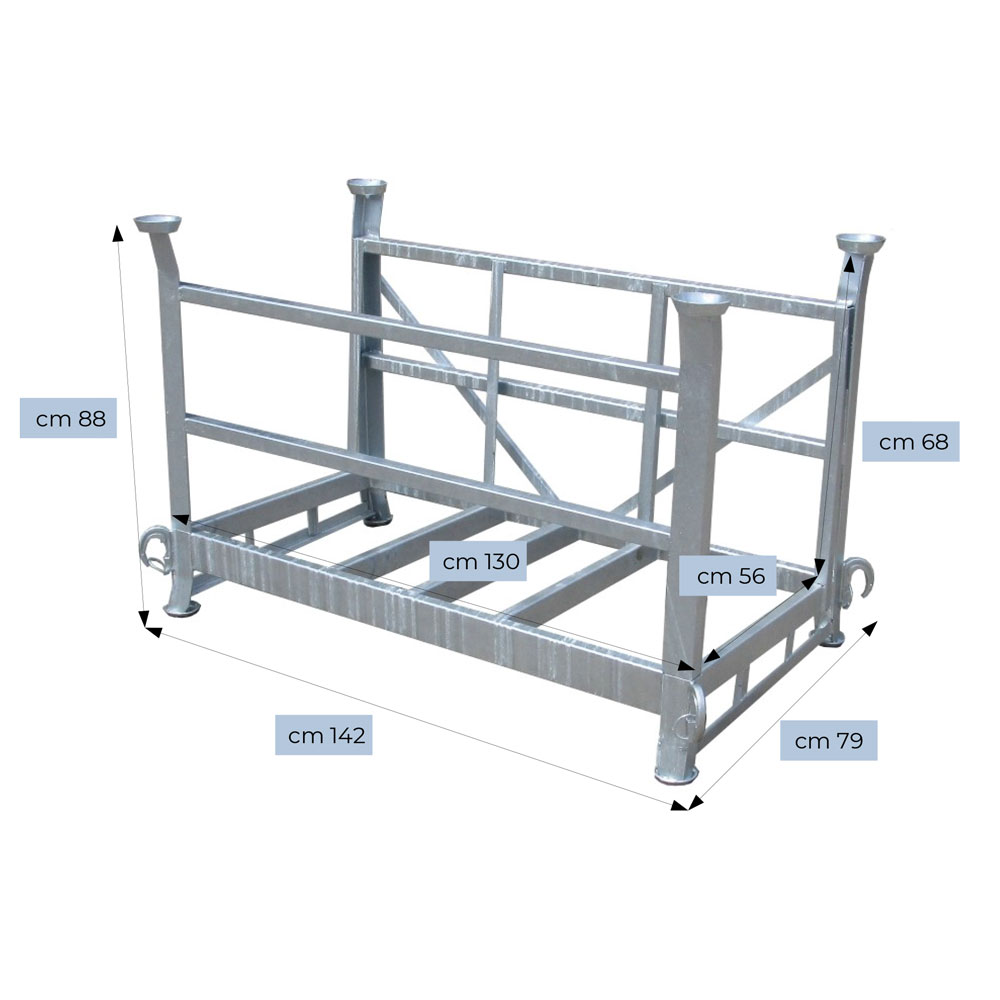

Measures and models

The 3 versions available differ in their external dimensions.
It is also possible to provide customized models.

Model 130x56x68 h

Maximum load Kg (daN)

3200

External dimensions L x P (cm)

130x68

Useful internal height (cm)

68

External height (cm)

87

Mass (kg)

55



Model 130x80x70 h

Maximum load Kg (daN)

2000

External dimensions L x D (cm)

130 x 92

Useful internal height (cm)

70

External height (cm)

89

Mass (kg)

60

Model 130x56x88

Maximum load Kg (daN)

3200

External dimensions L x D (cm)

130x68

Useful internal height (cm)

88

External height (cm)

115

Mass (kg)

60
