Stackable steel container for marble

Art.
GF1/S

Container lined with wooden boards designed and built to store and handle slab-shaped loads, especially suitable for kitchen tops, bathroom tops, marble steps or slab-shaped stone material.

Request a quote

Description

The Girlanda Fratelli Steel Container is an accessory equipped with wooden boards on both the base and the walls. Equipped with 4 hooks for lifting by crane.
The container can be used and manoeuvred with a self-propelled forklift truck or with a lifting device. It is built in 4 different versions of different sizes, which differ essentially for the overall dimensions or custom-made to meet any need.

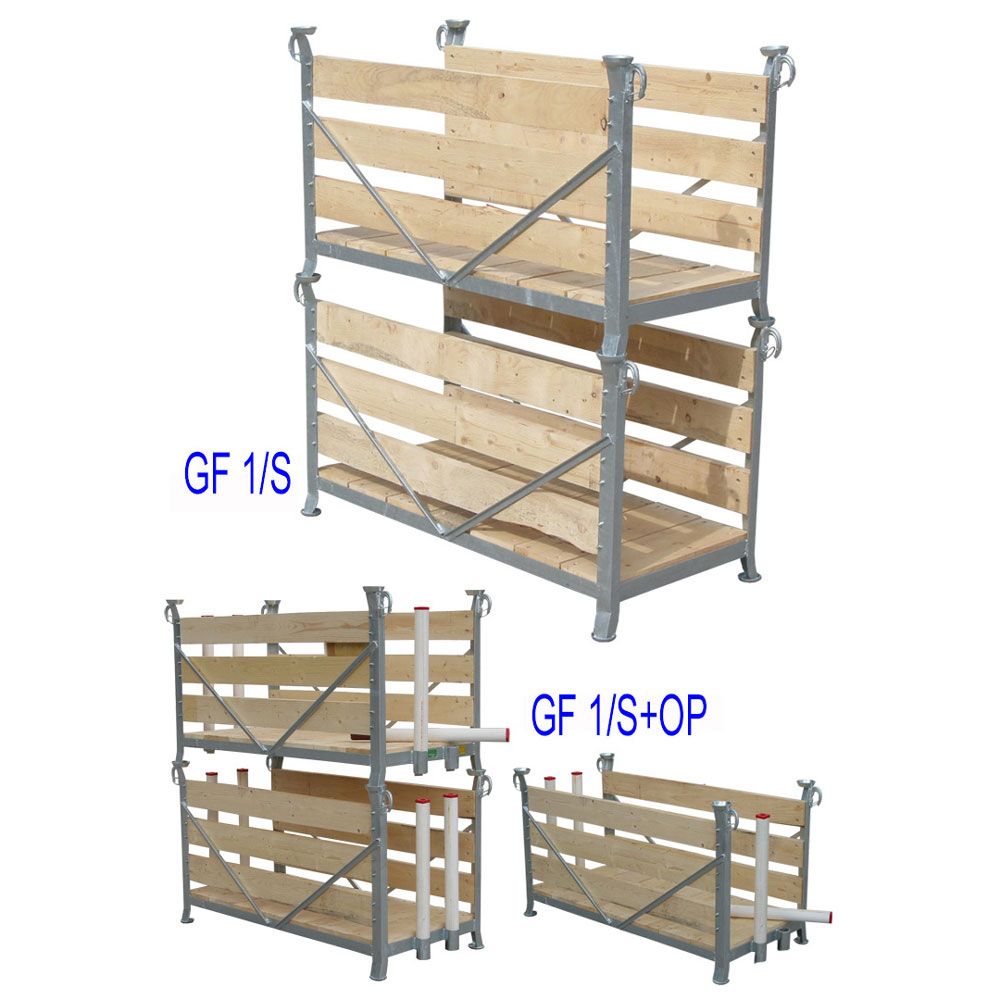

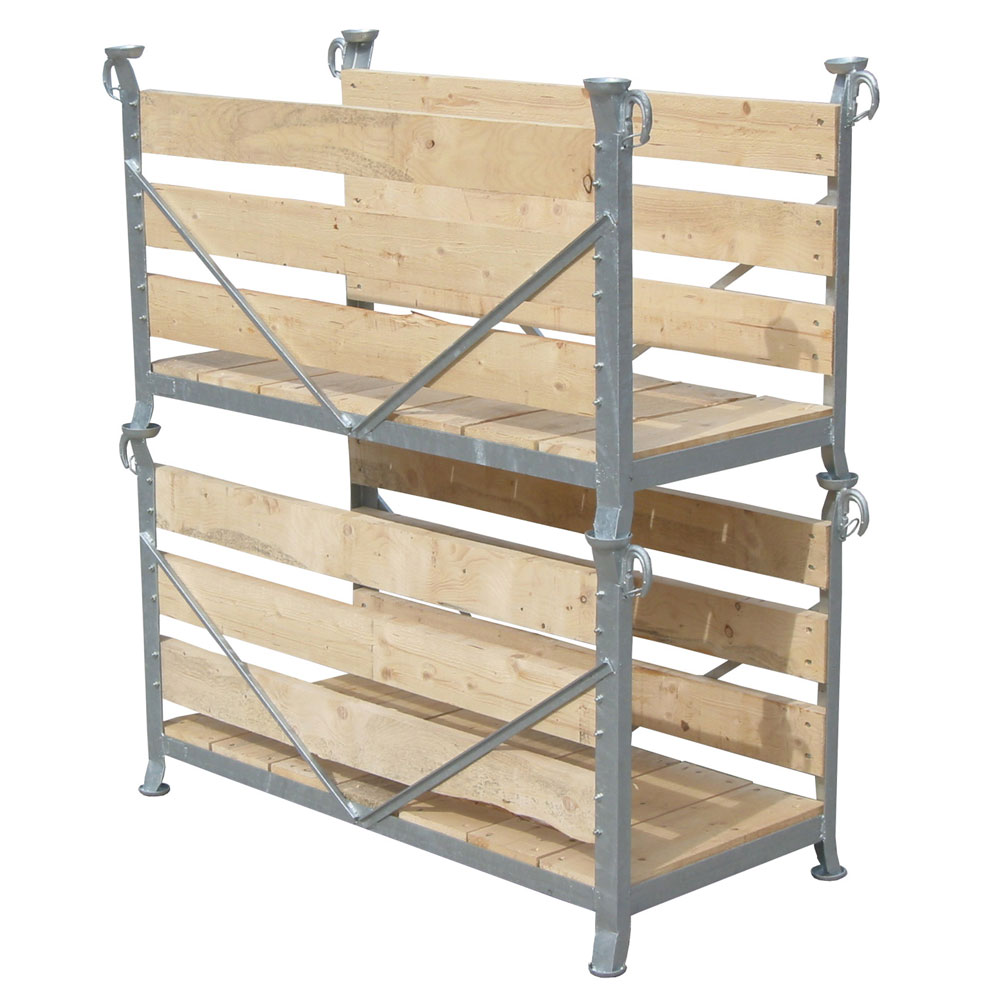

The container has been designed to be stacked in stacks on several orders, you can stack up to 2 loaded containers (with flat and cemented floor sheltered from the wind) and 4 empty containers.
It is also available with hot-dip galvanizing or immersion painting treatment.

The product complies with the standards:

  • Machinery Directive 2006/42/CE and subsequent integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Basic load-bearing structure in welded steel profiles.
  • Side reinforcement diagonals made of welded steel profiles.
  • Side structure upright made of welded steel profiles.
  • Smooth fir wood support board on the base.
  • Smooth fir wood support board on the side.
  • Upper bowl for foot support.
  • Lower bowl for foot support.
  • Lateral hook for lifting attachment.
  • Snap-hook ring for rope retention, mounted on each side hook.

Optional

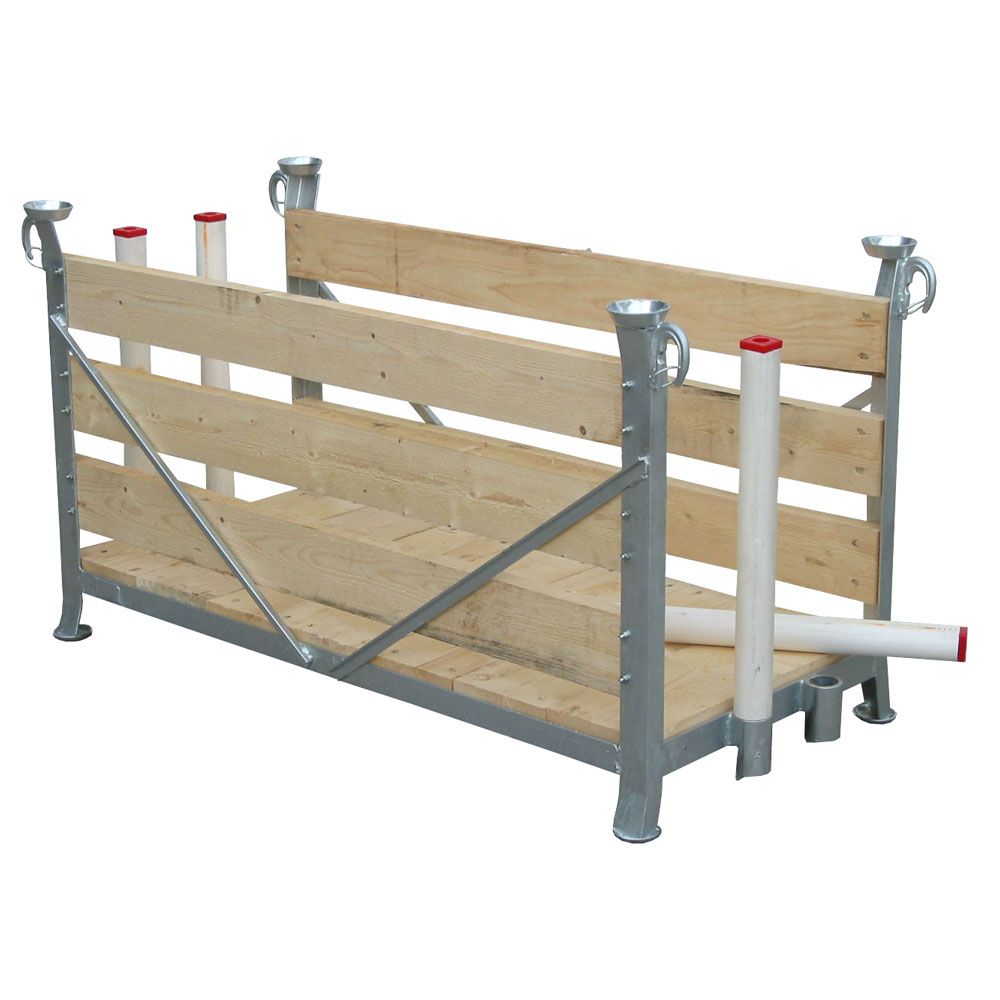

  • Possibility of adding 2 holes per side for the addition of 2 rubber-covered support posts.

Models and sizes

The 4 versions available differ in their external dimensions.
It is also possible to supply customized models.

Model 100x60x70h

Maximum working load  kg 2.000
External length cm 115
External width  cm 78
External height  cm 88
Useful internal length cm 100
Useful internal width cm 59
Useful internal height cm 68
Quantity of boards on walls 3 + 3
Quantity of boards on base 5
Dimensions of boards on base  mm 40 x 195
Dimensions of boards on sides  mm 40 x 135
Mass  kg 65

Model 150x60x70h

Maximum working load  kg 2.000
External length cm 168
External width  cm 78
External height  cm 88
Useful internal length cm 150
Useful internal width cm 59
Useful internal height cm 68
Quantity of boards on walls 3+3
Quantity of boards on base 7
Dimensions of boards on base  mm 40 x 210
Dimensions of boards on sides  mm 40 x 135
Mass  kg 83

Model 200x60x70h

Maximum working load  kg 2.000
External length cm 215
External width  cm 68
External height  cm 88
Useful internal length cm 200
Useful internal width cm 59
Useful internal height cm 68
Quantity of boards on walls 3+3
Quantity of boards on base 9
Dimensions of boards on base  mm 40 x 220
Dimensions of boards on sides  mm 40 x 135
Mass  kg 100

Model 120x90x70h

Maximum working load  kg 2.000
External length cm 135
External width  cm 99
External height  cm 88
Useful internal length cm 120
Useful internal width cm 90
Useful internal height cm 68
Quantity of boards on walls 3+3
Quantity of boards on base 6
Dimensions of boards on base  mm 40 x 195
Dimensions of boards on sides  mm 40 x 135
Mass  kg 80
