The Girlanda Fratelli Steel Container is an accessory built to handle or store loads. The Container is equipped with 4 hooks for lifting with crane or self-propelled forklift. The Container is built in 2 models, or made to measure to meet any need.

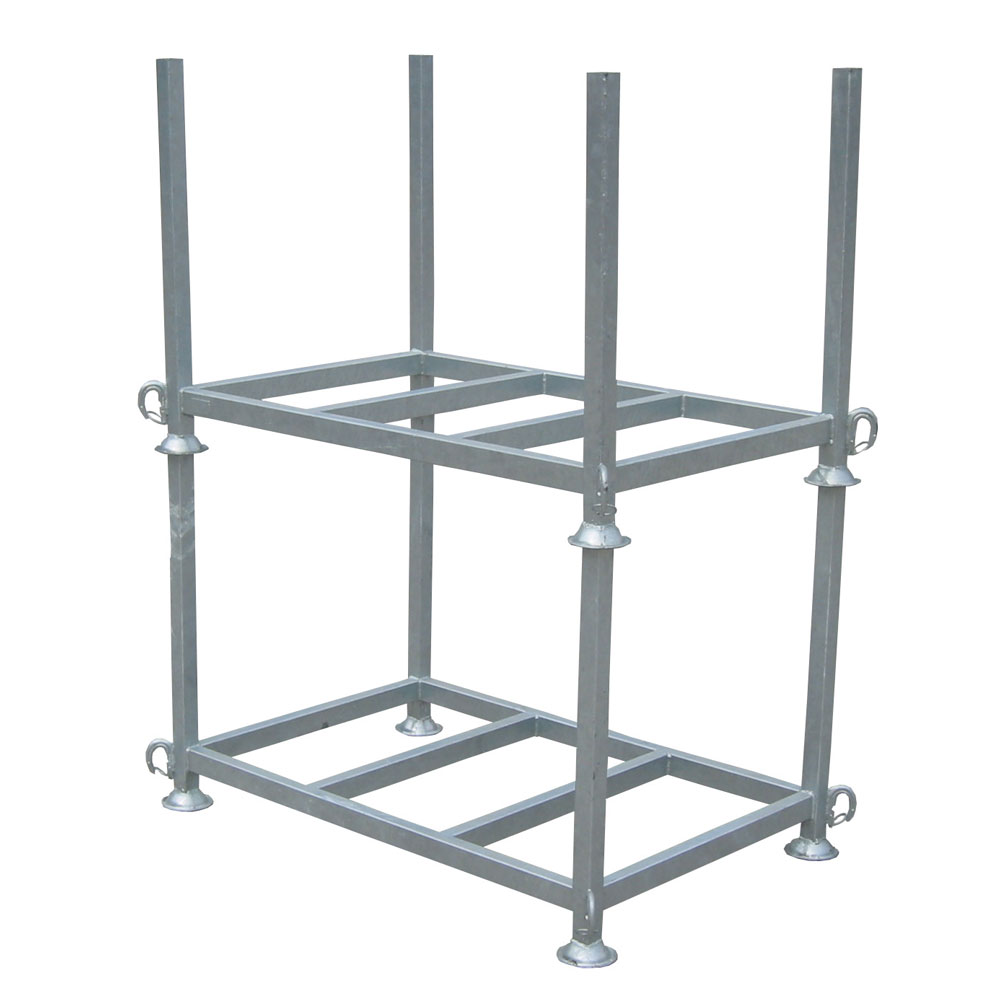

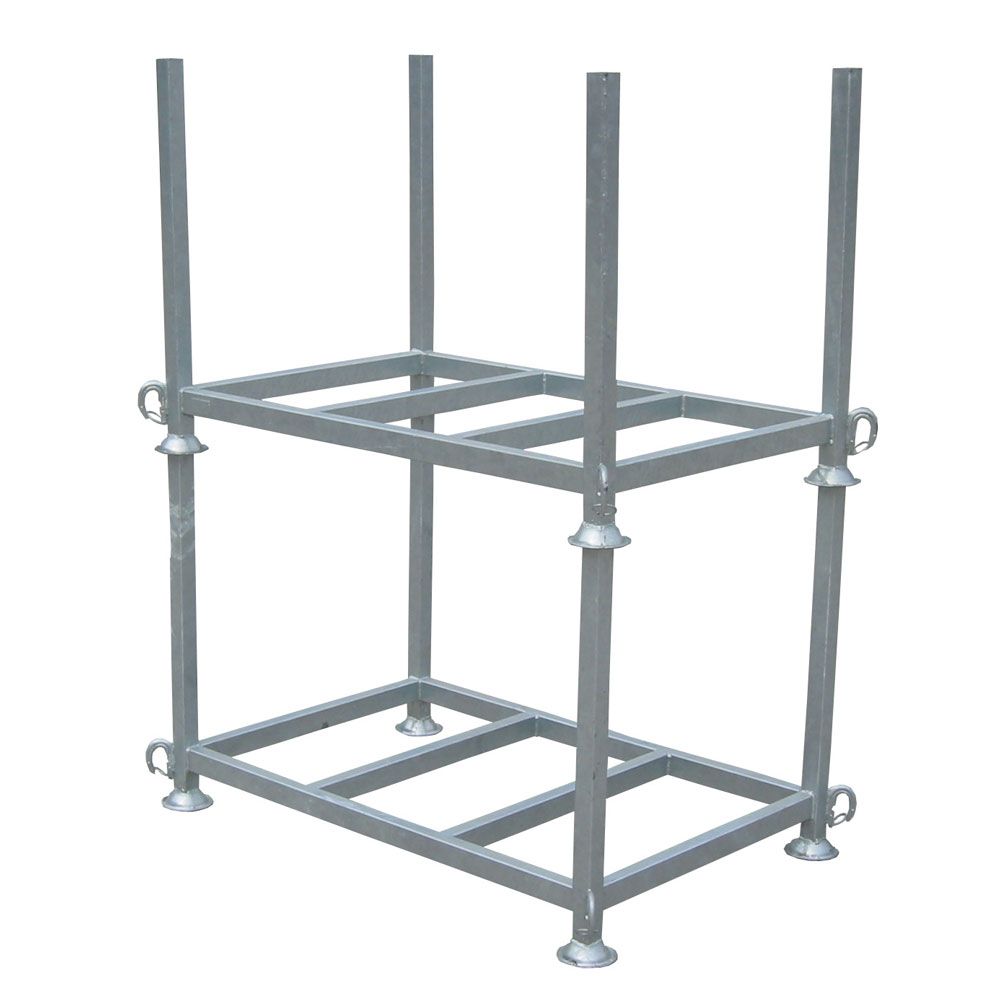

The container has been designed to be stacked in stacks on several orders, you can stack up to 3 loaded containers (with flat floor, cemented and sheltered from the wind) or 5 empty containers.
It is also available with hot-dip galvanizing or immersion painting treatment.
The product complies with the regulations:
Machinery Directive 2006/42/EC and subsequent supplements.
UNI EN ISO 12100/1 and 12100/2 standards.
When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.
Technical characteristics
Basic load-bearing structure in welded tubular steel sections.
Upright perimeter structure.
Supporting foot bowl.
Lateral hook for lifting attachment.
Snap-hook ring for rope retention, mounted on each side hook.
Models and sizes
The 2 versions available differ in their external dimensions.
It is also possible to supply made-to-measure models.

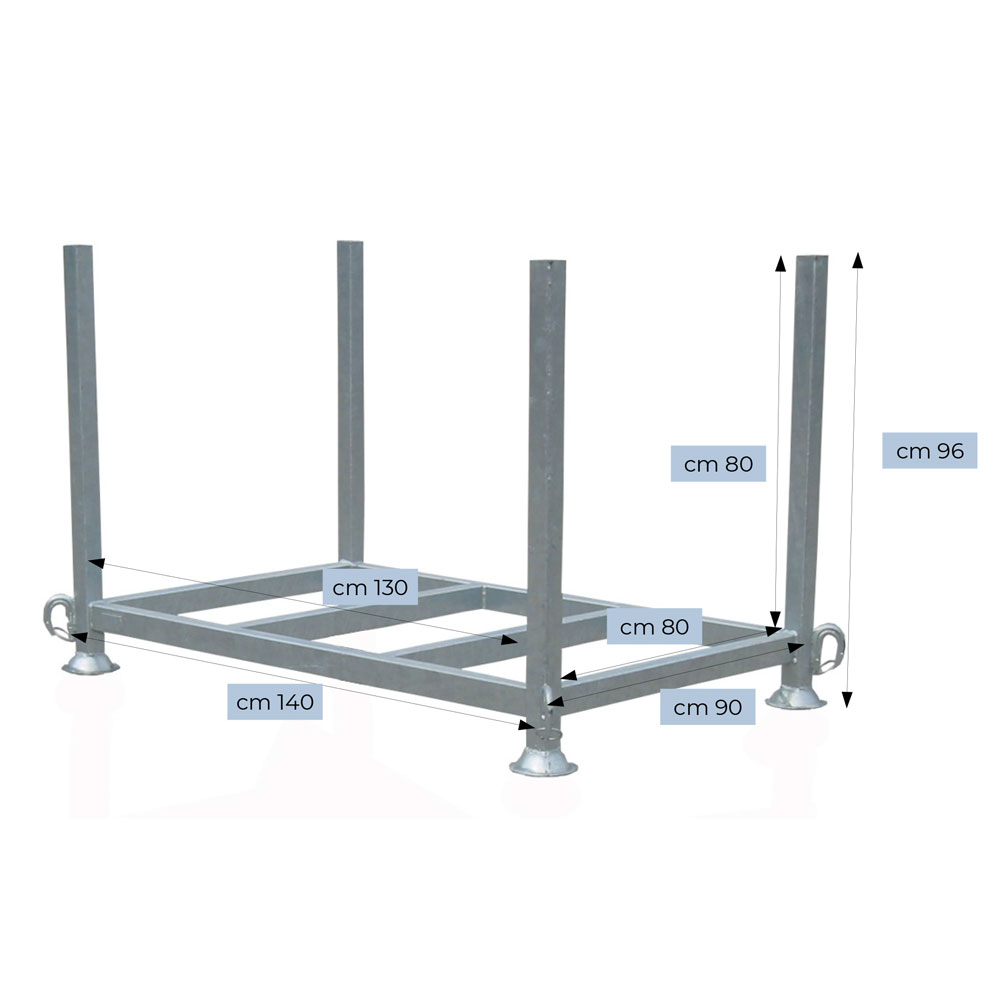

Model 130x80x80h
Maximum working load kg
2.000
External length cm
140
External width cm
90
Total height cm
96
LUseful internal length cm
130
Useful internal width cm
80
Useful internal height cm
80
Max stackable containers in loading height
3
Max containers stackable in height when empty
5
Mass kg
49
Model 130x80x100h
Maximum working load kg
2.000
External length cm
140
External width cm
90
Total height cm
116
LUseful internal length cm
130
Useful internal width cm
80
Useful internal height cm
100
Max stackable containers in loading height
3
Max containers stackable in height when empty
5
Mass kg
52
