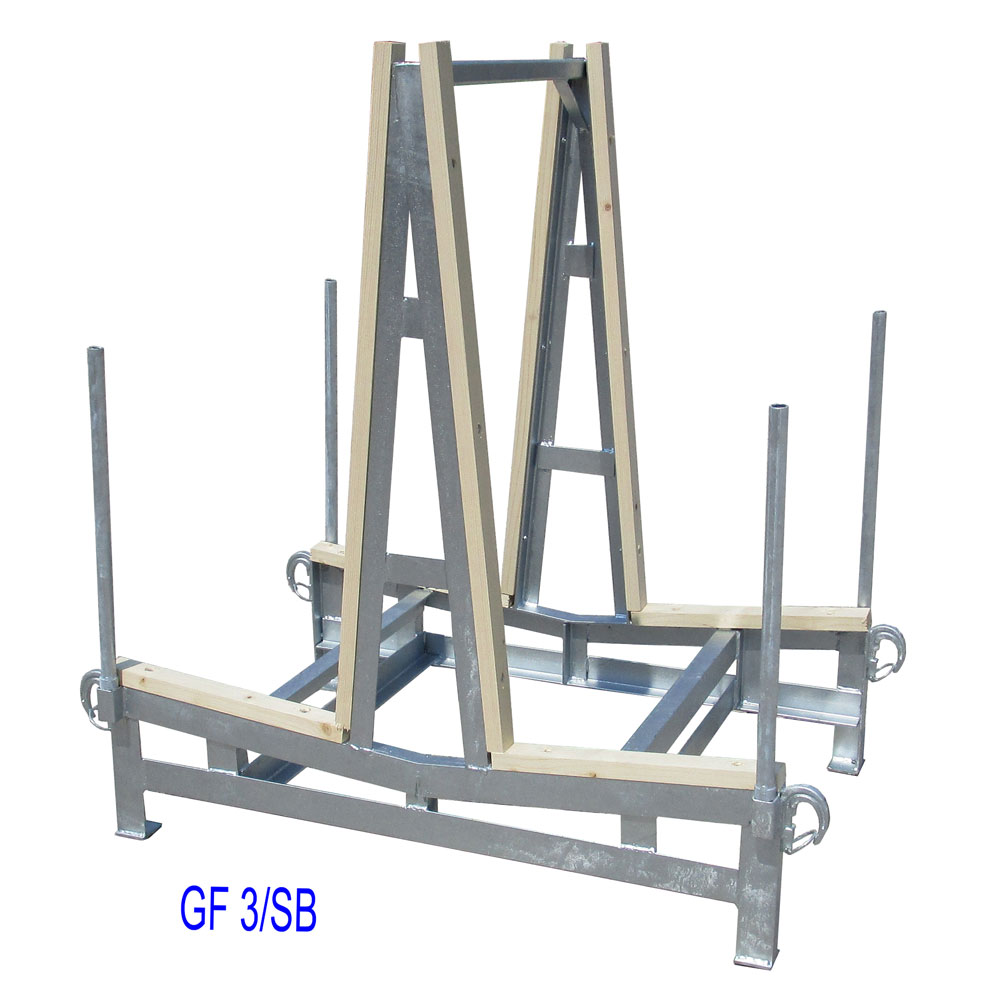

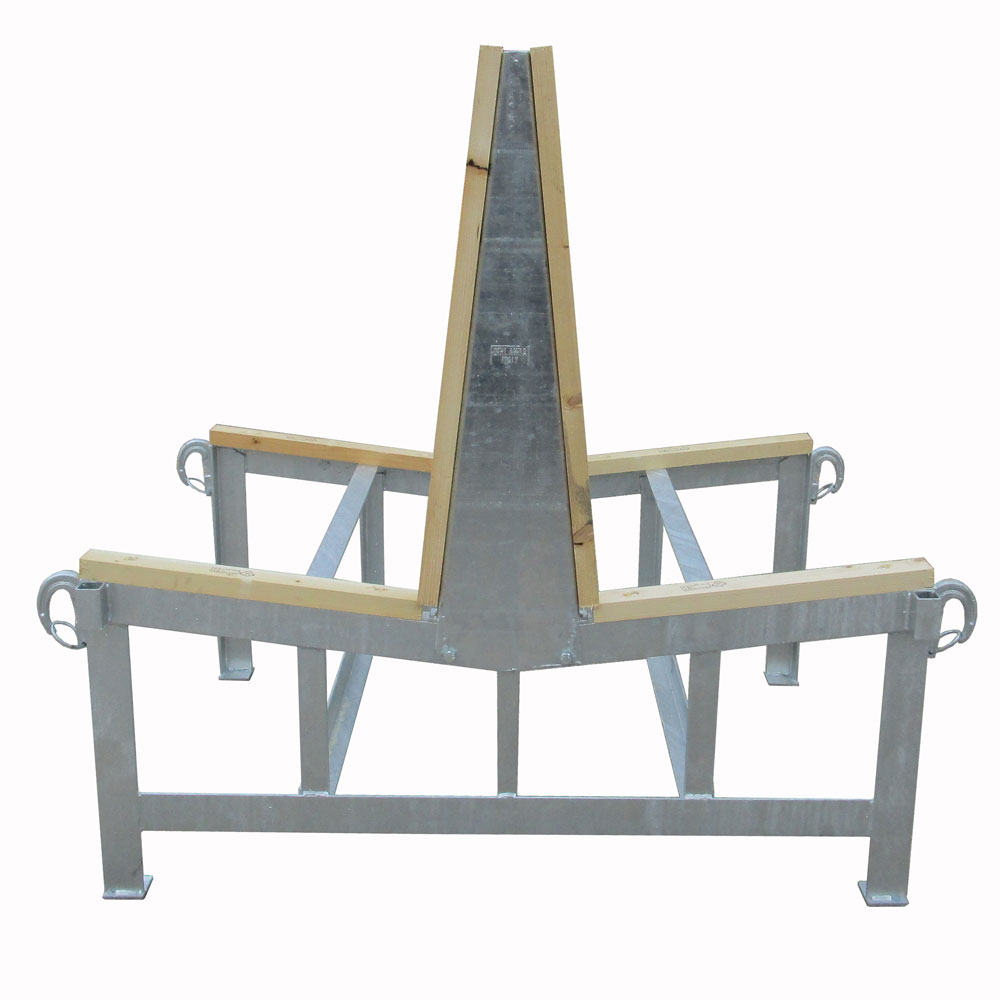

The Girlanda Fratelli iron container is designed and built to deposit, lift and handle stone slab loads, especially suitable for marble or stone slab material, bathroom tops and kitchen tops. The container is used for the transport of slabs, that can be palletised with fixed oblique sides. It is built to meet the various needs, can be used inside and outside of your laboratories.
The container is equipped with 4 hooks for lifting by crane.
The base and shoulder of the container are covered with wooden boards.
The container can be used with a pallet truck, a self-propelled forklift truck or with lifting equipment.
The container is built in 1 model or on measure to satisfy any requirement.
It is also available with hot-dip galvanizing treatment or painting.
The product complies with the regulations:
Machinery Directive 2006/42/CE and following integrations.
UNI EN ISO 12100/1 and 12100/2 standards.
When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

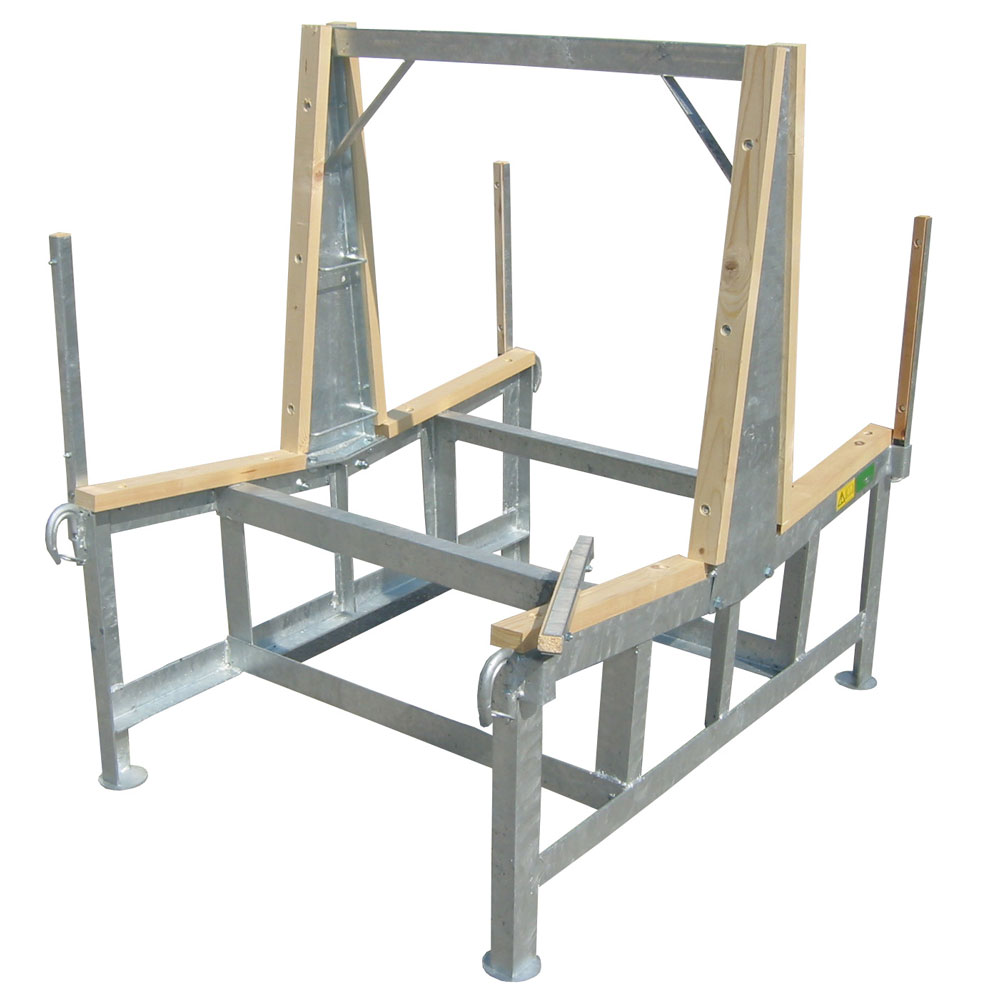

Technical characteristics
Base supporting structure in welded steel profiles.
Leg upright in welded steel profiles.
Supporting shoulder made of welded steel profiles and sheet metal.
Removable tubular element for holding slabs.
Wooden lath to support material on the supporting shoulder.
Wooden strip for supporting material on the base.
Lateral hook for lifting attachment.
Welded plate in sheet metal support foot.
Snap-hook ring for rope retention, mounted on each side hook.

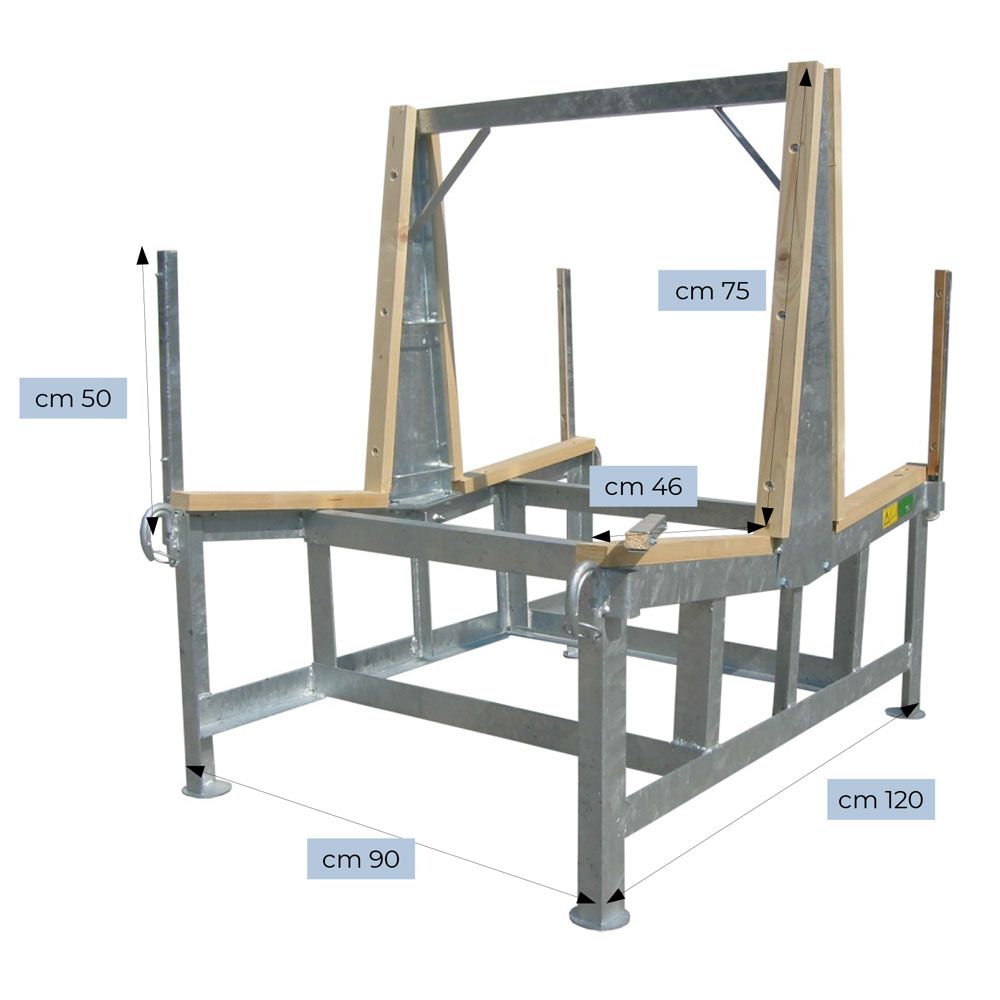

Models and sizes
It is also possible to supply customized models.
Maximum working load kg
2.000
Length cm
90
External width (excluding hooks) cm
120
Useful width cm
2×47
Total height cm
125
Shoulder height cm
75
Worktop height cm
50
Mass kg
63
