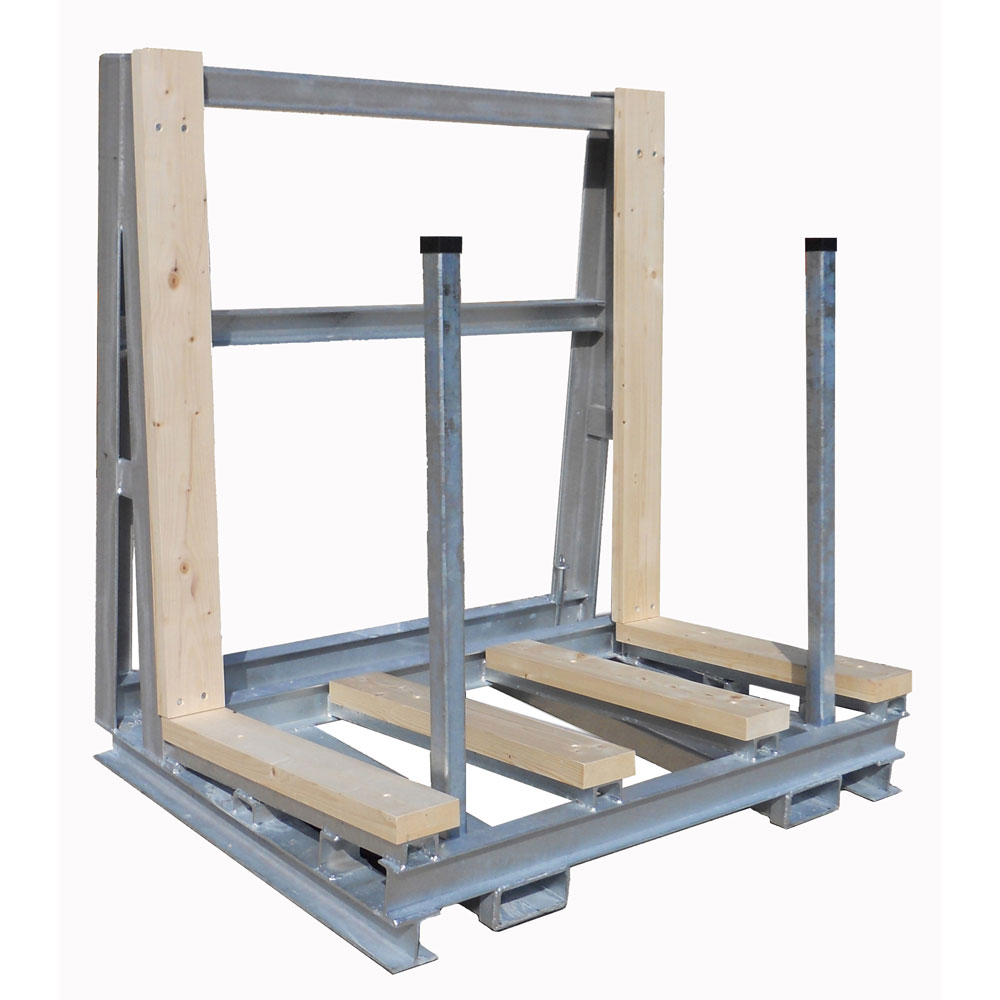

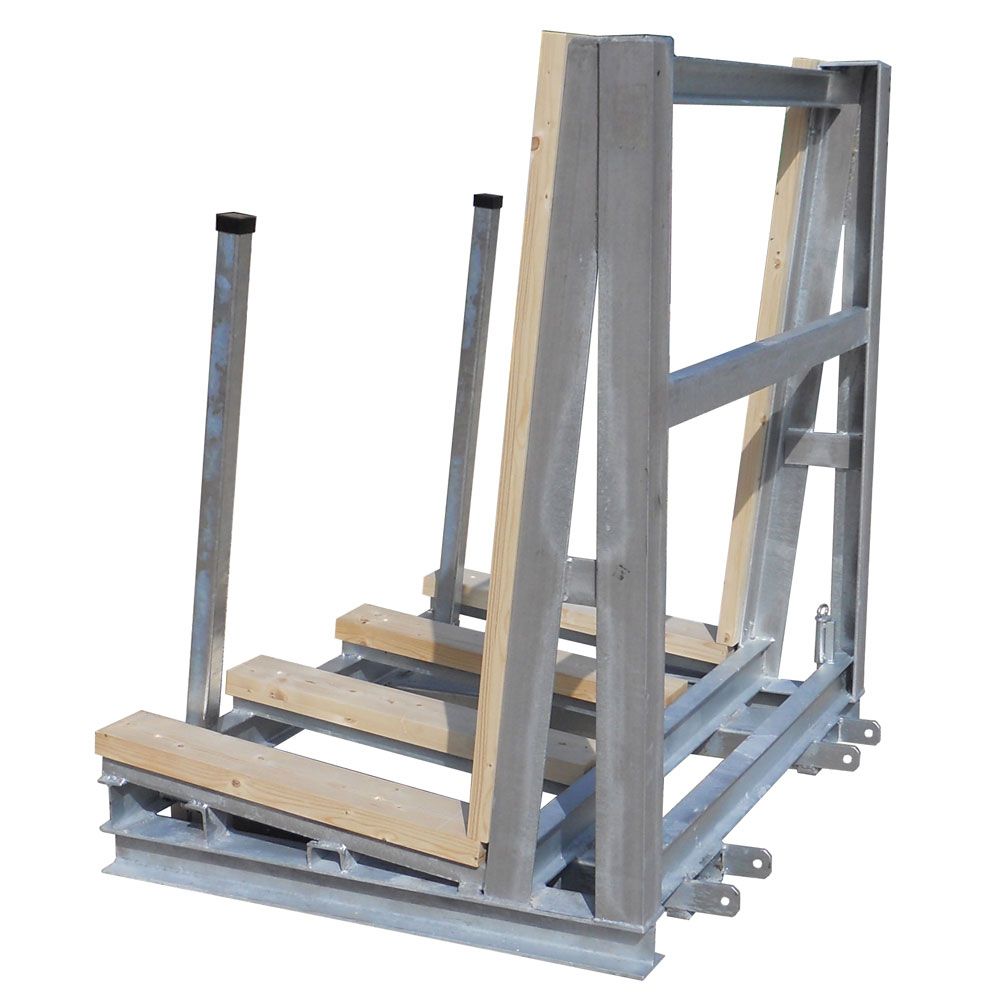

The container for transporting slabs with fixed oblique sideboard Girlanda Fratelli is designed and built to deposit, lift and handle stone slab loads (marble or granite slabs).
The Container can be used with a self-propelled forklift truck, using the special tubular supports for containing the forks of the forklift truck provided by the Manufacturer.
The table top and shoulder are covered in wood.
It is built to satisfy the various needs of transport of any size of marble and granite slabs.
The Container is built in 1 model or on measure to satisfy any requirement.
It is also available with hot-dip galvanizing treatment or immersion painting.
The product complies with the regulations:
Machinery Directive 2006/42/CE and following integrations.
UNI EN ISO 12100/1 and 12100/2 standards.Wh
en placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.
Technical characteristics
Base supporting structure in welded steel profiles.
Supporting shoulder made of welded steel profiles.
Removable tubular element for holding slabs.
Wooden batten for supporting material on the support shoulder.
Wooden strip for supporting material on the base

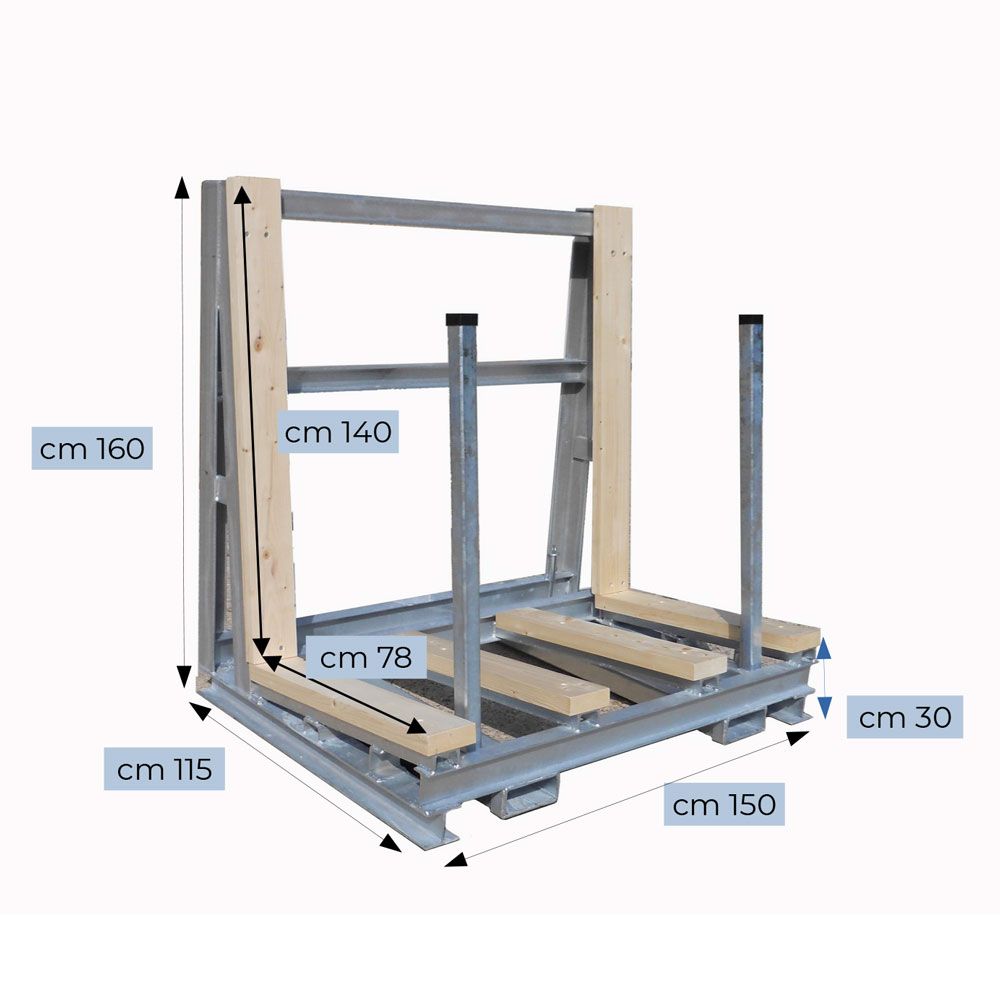

Models and sizes
It is also possible to supply made-to-measure models.
Maximum working load kg
5.000
Length cm
150
External width cm
115
Total height cm
160
Useful loading depth cm
78
Post’s height cm
120
Mass kg
320
