Sheet metal tilting container

Art. GF4/A

Container designed and built for the containment and handling of shards, formed or loose pieces resulting from the processing of marble, granite, other stone products, scrap iron and various metal materials.


Description

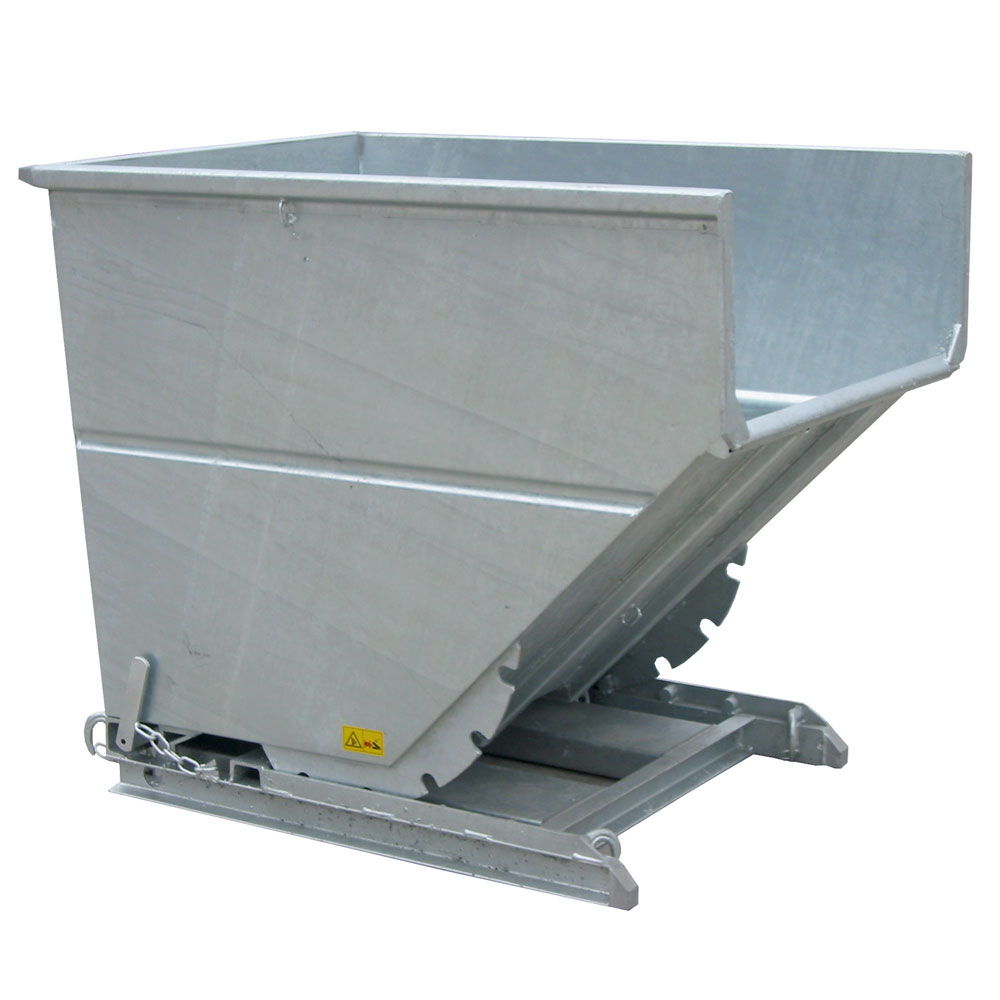

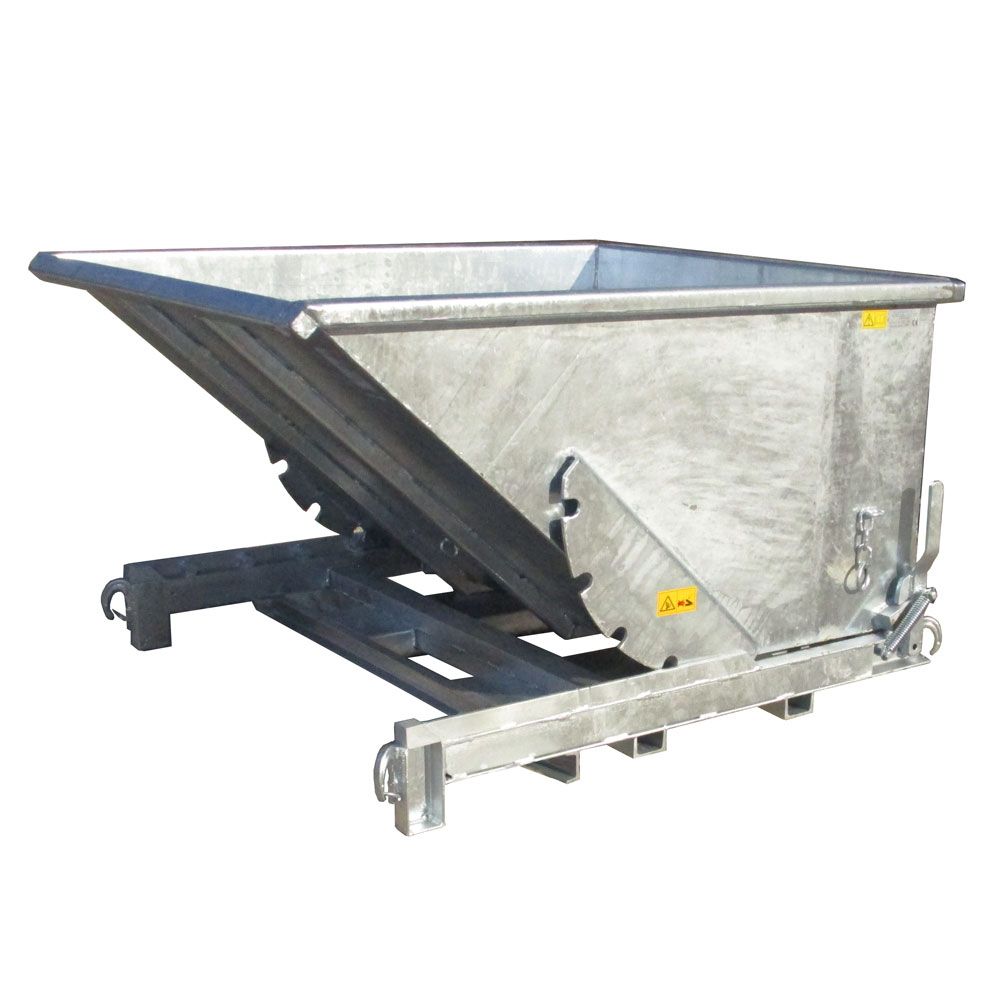

The Girlanda F.lli Sheet Metal Container is an accessory, designed and built in sheet steel ideal for containing lump or loose loads, obtained from the processing of marble, granite or other stone products, scrap iron or various metal materials. The overturning of the container occurs through the rotation of the upper bucket on a toothed wheel.
The container is equipped with 4 hooks for lifting with a crane or a self-propelled forklift truck.
The container can be emptied only with the forklift truck.
The container is built in 6 different models in terms of volume and lifting capacity or made to measure to meet any need. It is also available with galvanizing treatment or immersion painting.

The product complies with the regulations:

  • Machinery Directive 2006/42/CE and following integrations.
  • UNI EN ISO 12100/1 and 12100/2 standards.
  • When placed on the market, the container is provided with the CE marking, accompanied by the EC declaration of conformity and the instruction booklet.

Technical characteristics

  • Casing in hot-galvanized sheet steel or painted by immersion.
  • Lower supporting frame in welded steel profiles.
  • Manoeuvre lever for releasing the container holding safety device (one on each side).
  • Toothed sector for container overturning guide (one for each side).
  • Lateral blade for guiding and containing the toothed sector.
  • Lateral hook for lifting container with crane with safety ring (4 total).
  • Safety chain against container overturning (2 chains total).
  • Tubular supports for containing forklift forks.

Optional

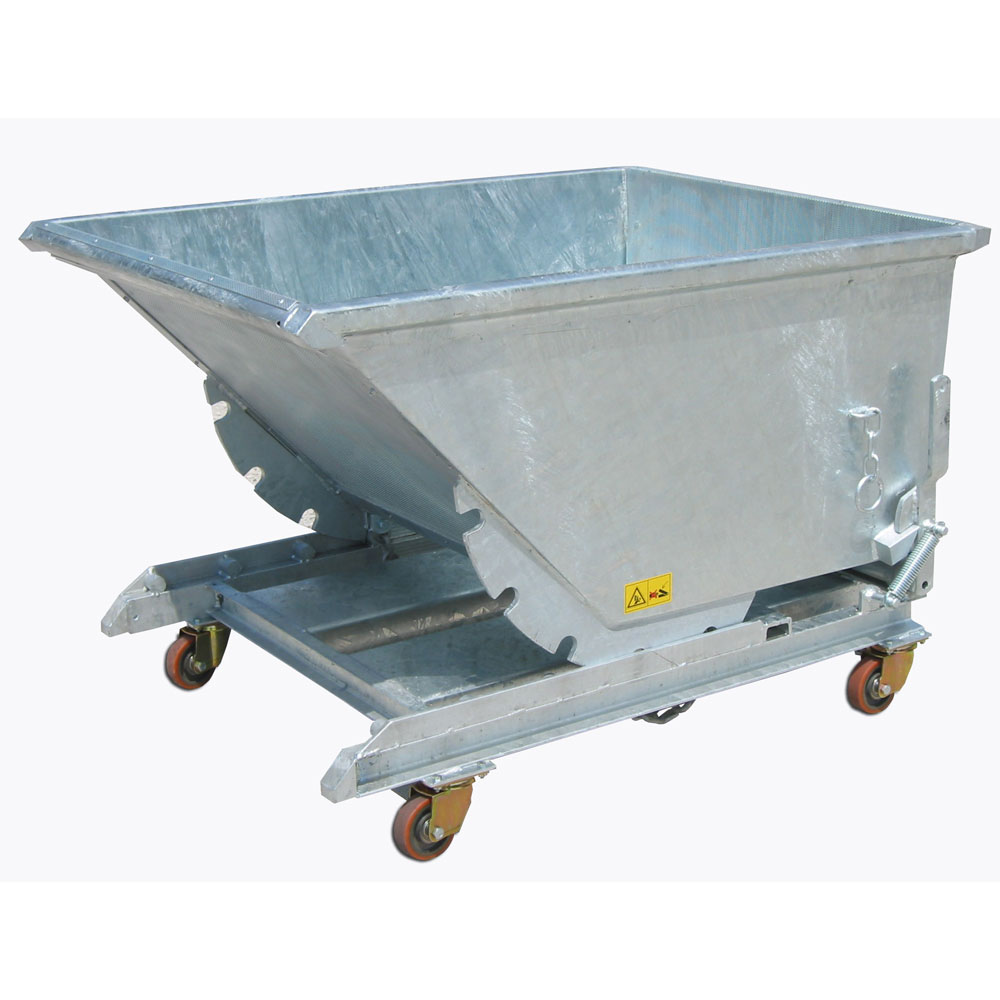

  • 4 wheels diameter 280 mm, capacity 1500 kg (art. R-280).
  •  4 wheels diameter 150 mm, capacity 1500 kg (art. R-VUL).

Measures and models

The 5 versions available differ in their external dimensions.
It is also possible to supply made-to-measure models.

Model 112x150 H 90

Load capacity daN

1.500

Internal length mm

1.400

Internal width mm

1.040

Internal useful height mm

740

External length mm

1.500

External width mm

1.120

Total height mm

900

Sheet metal thickness mm

30/10

Mass kg

257

Model 128X155 H 92

Load capacity daN

1.500

Internal length mm

1.450

Internal width mm

1.200

Internal useful height mm

760

External length mm

1.550

External width mm

1.280

Total height mm

920

Sheet metal thickness mm

30/10

Mass kg

313

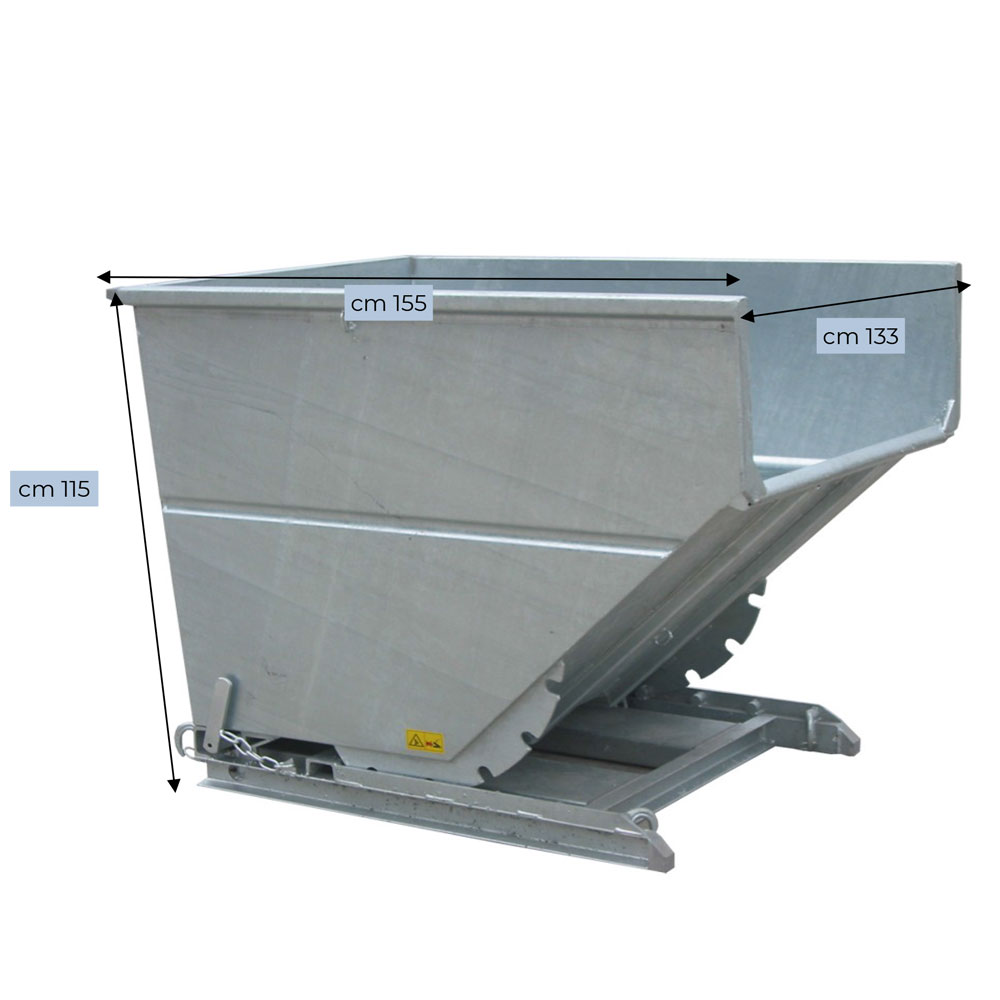

Model 133X155 H 115

Load capacity daN

2.500

Internal length mm

1.500

Internal width mm

1.250

Internal useful height mm

990

External length mm

1.550

External width mm

1.330

Total height mm

1.150

Sheet metal thickness mm

30/10

Mass kg

299

Model 115X155 H 129

Load capacity daN

2.500

Internal length mm

1.500

Internal width mm

1.070

Internal useful height mm

1.130

External length mm

1.550

External width mm

1.150

Total height mm

1.290

Sheet metal thickness mm

30/10

Mass kg

293

Model 150X200 H 150

Load capacity daN

6.000

Internal length mm

1.900

Internal width mm

1.420

Internal useful height mm

1.300

External length mm

2.000

External width mm

1.500

Total height mm

1.500

Sheet metal thickness mm

30/10

Mass kg

631
