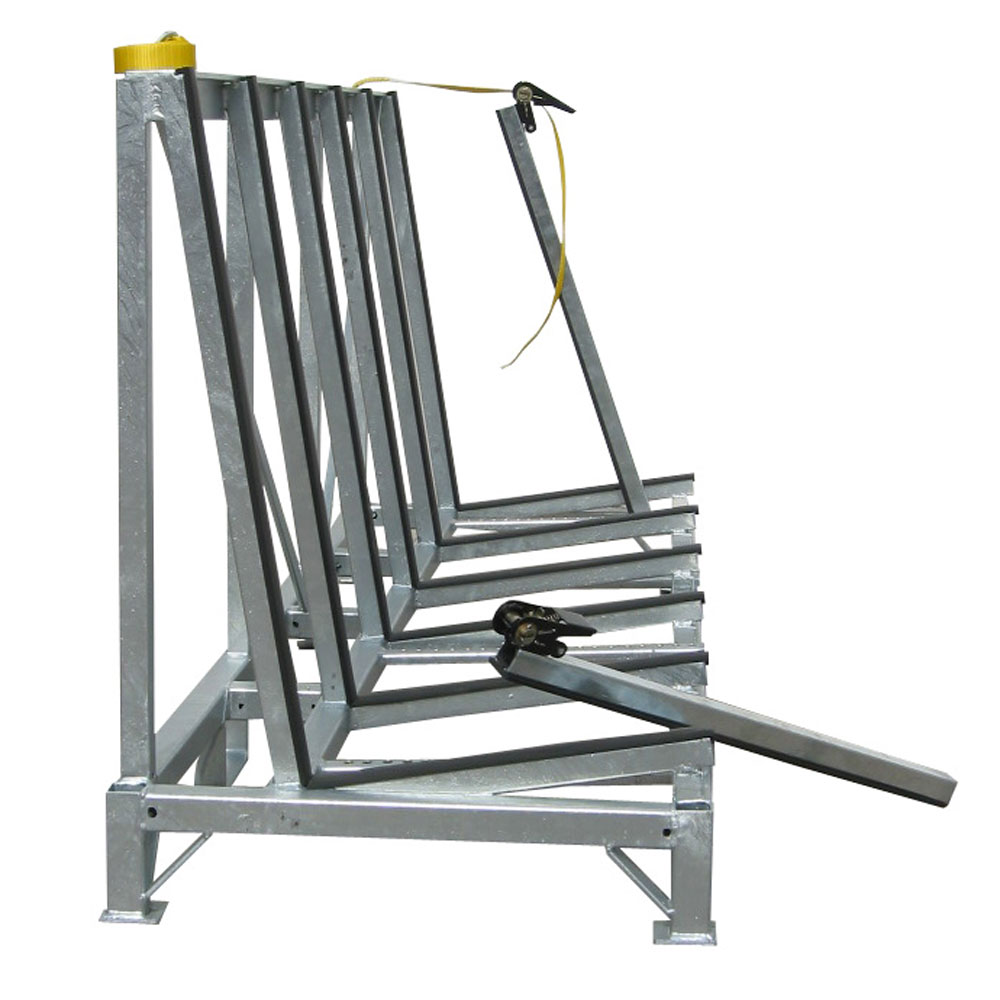

The Container is an accessory designed and built to handle or store slab loads. The container is equipped with 2 supports with straps to lock the worked marble during transport. The base and shoulder of the container, is covered with interchangeable rubber. It is built to meet various needs and can be used and operated with a self-propelled forklift truck. The container is built in 1 model or made to measure to meet any need. It is also available with hot-dip galvanizing treatment or immersion painting.
The product complies with the regulations:
Machinery Directive 2006/42/CE and following integrations.
Technical characteristics
Basic load-bearing structure in welded steel profiles.
Side structure upright in welded steel profiles.
Transversal reinforcing elements of the base made of welded steel profiles.
Support base for forklift forks.
Rubber strips on the side.
Rubber strips on the base
Measures and models
In addition to this model is also possible to provide made to measure.
Model 200x60x70 h
Maximum working load daN(~kg)
1000
Length(A) mm
2000
Width at the base (B) mm
600
Useful width (B1) mm
380
Height mm
850
Useful internal height mm
700
Mass (weight) kg
67
